Drone Battery Cells & Power Solutions

Seven NCM pouch cell series from 270 to 460 Wh/kg, plus engineered packs for drones,
robotics, mobility, portable devices and energy storage. One platform, one drawing package, one certificate set.

View cell specifications
Request a quote

Drone & Low-Altitude Battery Cells

Our flagship line is a family of high energy density NCM lithium cells built
for industrial drones, UAV platforms and other low-altitude aircraft. Seven series span
270 to 460 Wh/kg, so you decide where each airframe sits on the endurance-versus-cycle-life curve.
The 270-330 Wh/kg tiers return 1000 cycles above 80 percent capacity for fleets that fly daily,
while the 400-460 Wh/kg tiers push flight time first for long-range survey, mapping and delivery missions.
Every series keeps internal resistance low and accepts a 10-second 10C pulse, holding its voltage
when throttle is punched during take-off, climb and winch operation.

Nominal, full-charge and cutoff voltages are listed per series below. Currents are expressed as
C-rate against nominal capacity. Sizes are maximum envelope dimensions including the sealed edge.

270 Wh/kg Seriesnominal 3.7 V · full charge 4.2 V · cutoff 2.75 V
Model Capacity (Ah) Voltage (V) Energy (Wh) Size max (mm) Weight (g) Discharge (std/max/10s) Charge (std/max) Cycle life
TPT10070170N17 17 3.7 62.9 10.0 x 71 x 172 247 +/- 7 1C / 3C / 10C 0.5C / 2C 1000 (>80%)
TPT10088187N27 27 3.7 99.9 10.0 x 88 x 187 370 +/- 11 1C / 3C / 10C 0.5C / 2C 1000 (>80%)
TPT11088187N30 30 3.7 111 11.0 x 88 x 187 409 +/- 12 1C / 3C / 10C 0.5C / 2C 1000 (>80%)
310 Wh/kg Seriesnominal 3.65 V · full charge 4.2 V · cutoff 2.75 V
Model Capacity (Ah) Voltage (V) Energy (Wh) Size max (mm) Weight (g) Discharge (std/max/10s) Charge (std/max) Cycle life
TPT10070170N20 20 3.65 73 10.0 x 71 x 172 247 +/- 7 1C / 3C / 10C 0.5C / 2C 1000 (>80%)
TPT100148100N25 25 3.65 91.25 10.0 x 148 x 100 304 +/- 9 1C / 3C / 10C 0.5C / 2C 1000 (>80%)
TPT9588187N30 30 3.65 109.5 9.5 x 88 x 187 352 +/- 10 1C / 3C / 10C 0.5C / 2C 1000 (>80%)
TPT10588187N33 33 3.65 120.45 10.5 x 88 x 187 385 +/- 11 1C / 3C / 10C 0.5C / 2C 1000 (>80%)
TPT115110300N70 70 3.65 255.5 11.5 x 110 x 300 799 +/- 23 1C / 3C / 10C 0.5C / 2C 1000 (>80%)
330 Wh/kg Seriesnominal 3.6 V · full charge 4.25 V · cutoff 2.75 V
Model Capacity (Ah) Voltage (V) Energy (Wh) Size max (mm) Weight (g) Discharge (std/max/10s) Charge (std/max) Cycle life
TPT10070170N22 22 3.6 79.2 10.0 x 71 x 172 247 +/- 7 1C / 5C / 10C 0.5C / 2C 1000 (>80%)
TPT100148100N28 28 3.6 100.8 10.0 x 148 x 100 313 +/- 9 1C / 5C / 10C 0.5C / 2C 1000 (>80%)
TPT9588187N33 33 3.6 118.8 9.5 x 88 x 187 349 +/- 15 1C / 5C / 10C 0.5C / 2C 1000 (>80%)
TPT10588187N36 36 3.6 129.6 10.5 x 88 x 187 392 +/- 11 1C / 5C / 10C 0.5C / 2C 1000 (>80%)
TPT115110300N78 78 3.6 280.8 11.5 x 110 x 300 831 +/- 24 1C / 3C / 10C 0.5C / 2C 1000 (>80%)
360 Wh/kg Seriesnominal 3.55 V · full charge 4.3 V · cutoff 2.5 V
Model Capacity (Ah) Voltage (V) Energy (Wh) Size max (mm) Weight (g) Discharge (std/max/10s) Charge (std/max) Cycle life
TPT10070170N24 24 3.55 85.2 10.0 x 71 x 172 242 +/- 7 1C / 3C / 10C 0.5C / 2C 800 (>80%)
TPT100148100N31 31 3.55 110.05 10.0 x 148 x 100 310 +/- 9 1C / 3C / 10C 0.5C / 2C 800 (>80%)
TPT9588187N35 35 3.55 124.25 9.5 x 88 x 187 340 +/- 10 1C / 3C / 10C 0.5C / 2C 800 (>80%)
TPT10588187N39 39 3.55 138.45 10.5 x 88 x 187 384 +/- 11 1C / 3C / 10C 0.5C / 2C 800 (>80%)
TPT115110300N82 82 3.55 291.1 11.5 x 110 x 300 785 +/- 23 1C / 3C / 10C 0.5C / 2C 800 (>80%)
TPT100148100N30 30 3.5 105 10.0 x 148 x 100 294 +/- 15 1C / 5C / 10C 1.0C / 3C 800 (>80%)
TPT10588187N36 36 3.5 126 10.5 x 88 x 187 357 +/- 17 1C / 5C / 10C 1.0C / 3C 800 (>80%)
400 Wh/kg Seriesnominal 3.5 V · full charge 4.3 V · cutoff 2.5 V
Model Capacity (Ah) Voltage (V) Energy (Wh) Size max (mm) Weight (g) Discharge (std/max/10s) Charge (std/max) Cycle life
TPT10070170N26 26 3.5 91 10.0 x 70 x 170 236 +/- 7 1C / 3C / 10C 0.5C / 1C 500 (>80%)
TPT12070170N30 30 3.5 105 12.0 x 70 x 170 273 +/- 15 1C / 3C / 10C 0.5C / 1C 500 (>80%)
TPT9588187N36 36 3.5 126 9.5 x 88 x 187 326 +/- 16 1C / 3C / 10C 0.5C / 1C 500 (>80%)
TPT10588187N41 41 3.5 143.5 10.5 x 88 x 187 366 +/- 18 1C / 3C / 10C 0.5C / 1C 500 (>80%)
TPT107110300N80 80 3.5 280 10.7 x 110 x 300 706 +/- 35 1C / 3C / 10C 0.5C / 1C 500 (>80%)
TPT115110300N86 86 3.5 301 11.5 x 110 x 300 764 +/- 38 1C / 3C / 10C 0.5C / 1C 500 (>80%)
TPT120118356N120 120 3.5 420 12.0 x 118 x 356 1060 +/- 31 1C / 3C / 10C 0.5C / 1C 500 (>80%)
TPT1351611230N120 120 3.5 420 12.0 x 118 x 356 1050 +/- 32 1C / 3C / 10C 0.5C / 1C 500 (>80%)
TPT150118365N150 150 3.5 525 12.0 x 118 x 356 1316 +/- 39 1C / 3C / 10C 0.5C / 1C 500 (>80%)
430 Wh/kg Seriesnominal 3.42 V · full charge 4.3 V · cutoff 2.5 V
Model Capacity (Ah) Voltage (V) Energy (Wh) Size max (mm) Weight (g) Discharge (std/max/10s) Charge (std/max) Cycle life
TPT6588187N25 25 3.42 85.5 6.5 x 88 x 187 212 +/- 6 1C / 2C / 5C 0.5C / 1C 300 (>80%)
TPT10070163N27 27 3.42 92.34 10.0 x 70 x 163 227 +/- 6 1C / 2C / 5C 0.5C / 1C 300 (>80%)
TPT11075174N37 37 3.42 126.54 11.0 x 75 x 174 294 +/- 14 1C / 2C / 5C 0.5C / 1C 300 (>80%)
TPT9588187N40 40 3.42 136.8 9.5 x 88 x 187 318 +/- 10 1C / 2C / 5C 0.5C / 1C 300 (>80%)
TPT10588187N43 43 3.42 147.06 10.5 x 88 x 187 334 +/- 16 1C / 2C / 5C 0.5C / 1C 300 (>80%)
TPT9896195N47 47 3.42 160.74 9.8 x 96 x 195 380 +/- 10 1C / 2C / 5C 0.5C / 1C 300 (>80%)
TPT142115140N58 58 3.42 198.36 14.2 x 115 x 140 464 +/- 13 1C / 2C / 5C 0.5C / 1C 300 (>80%)
460 Wh/kg Seriesnominal 3.42 V · full charge 4.3 V · cutoff 2.5 V
Model Capacity (Ah) Voltage (V) Energy (Wh) Size max (mm) Weight (g) Discharge (std/max/10s) Charge (std/max) Cycle life
TPT10588187N48 48 3.42 164.16 10.5 x 88 x 187 362 +/- 15 1C / 2C / 5C 0.5C / 1C 300 (>80%)

Cell geometry, tab position and pack layout are adjustable under our
customised solutions programme. Hybrid designs that pair NCM endurance with
LFP cycle economy are supported on request.

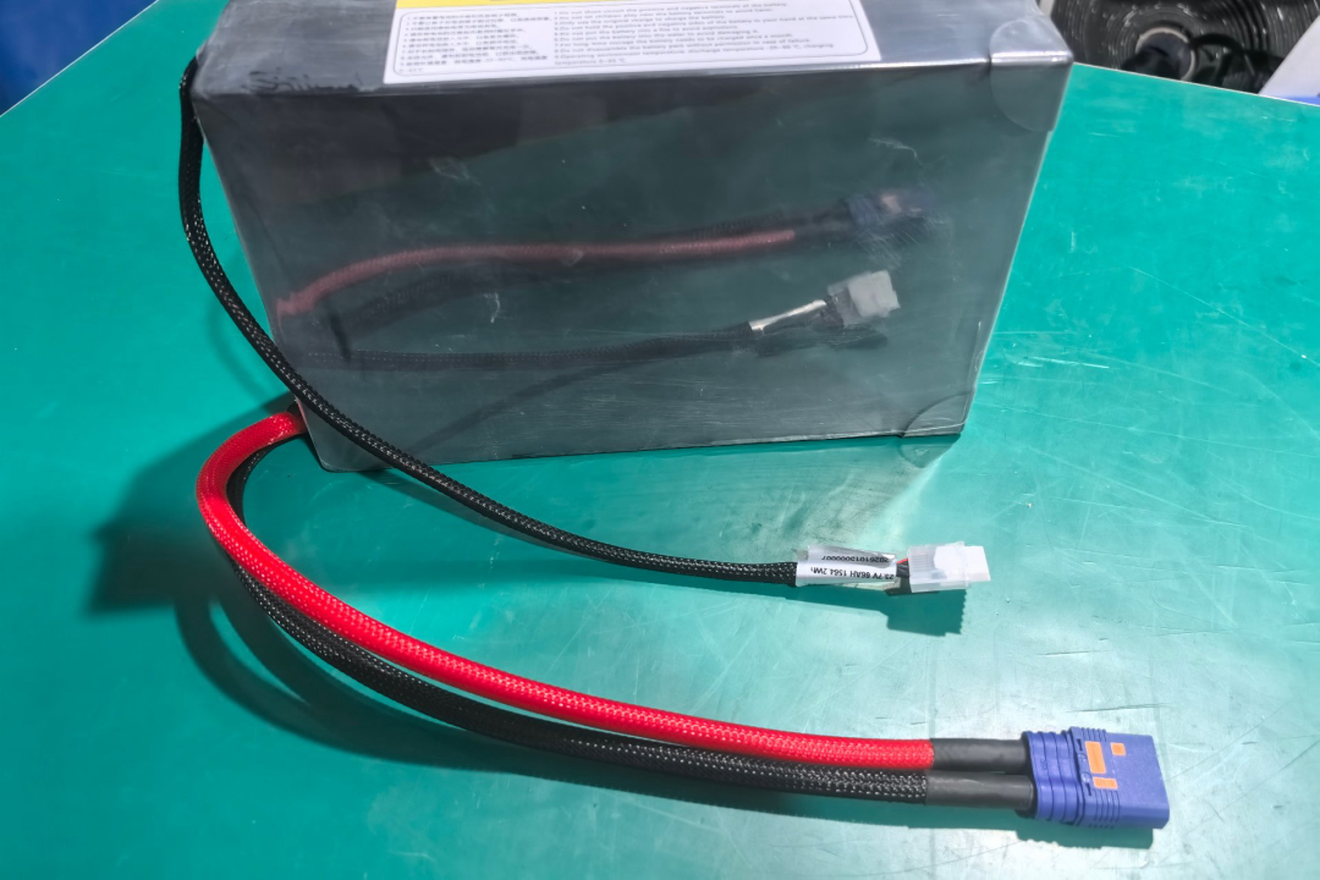

Assembled drone battery pack with braided power leads and connector on a workbench
Assembled pack with braided discharge leads and high-current connector.

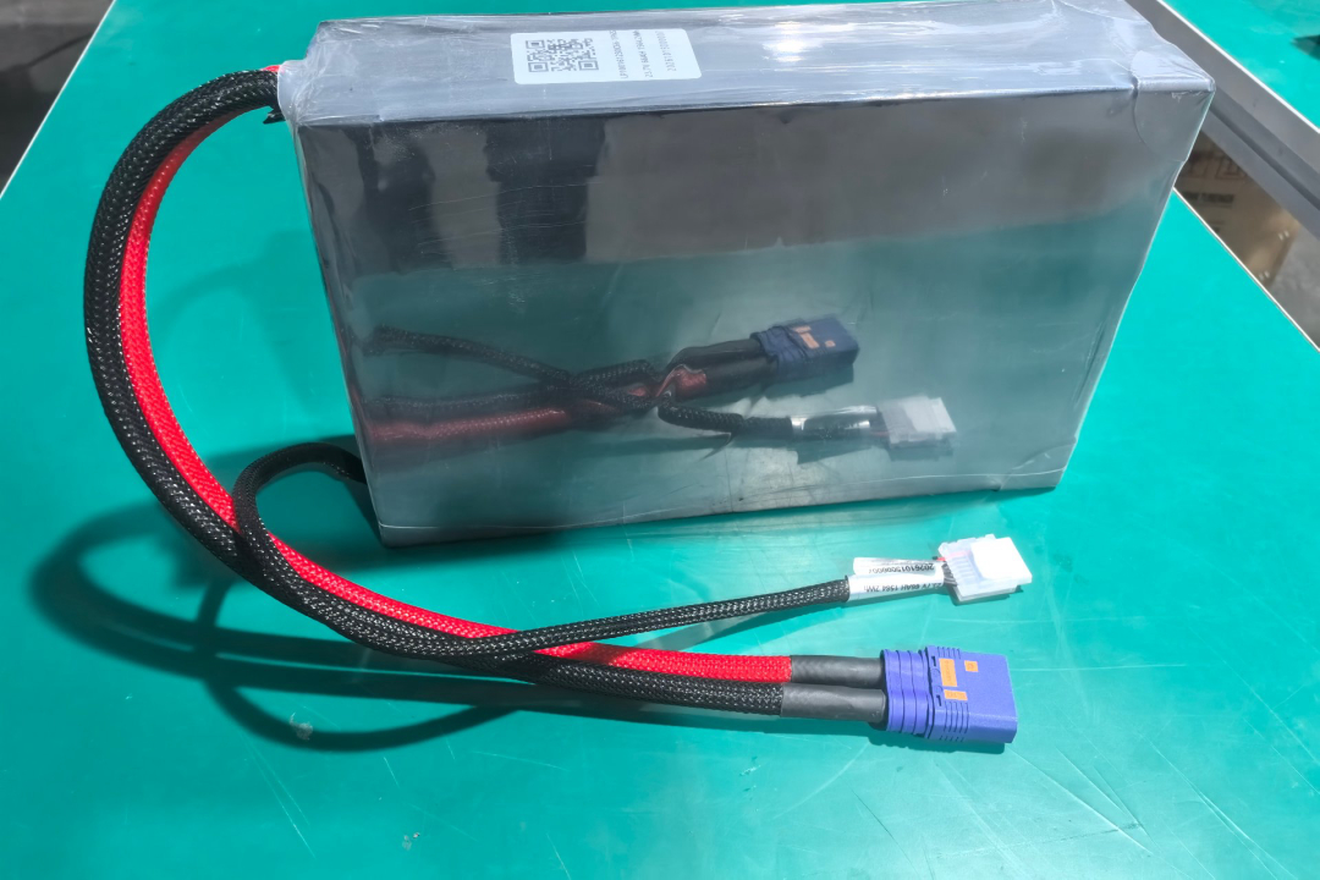

Sealed drone battery pack with balance lead and high current connector
Sealed pack with balance lead, ready for final inspection.

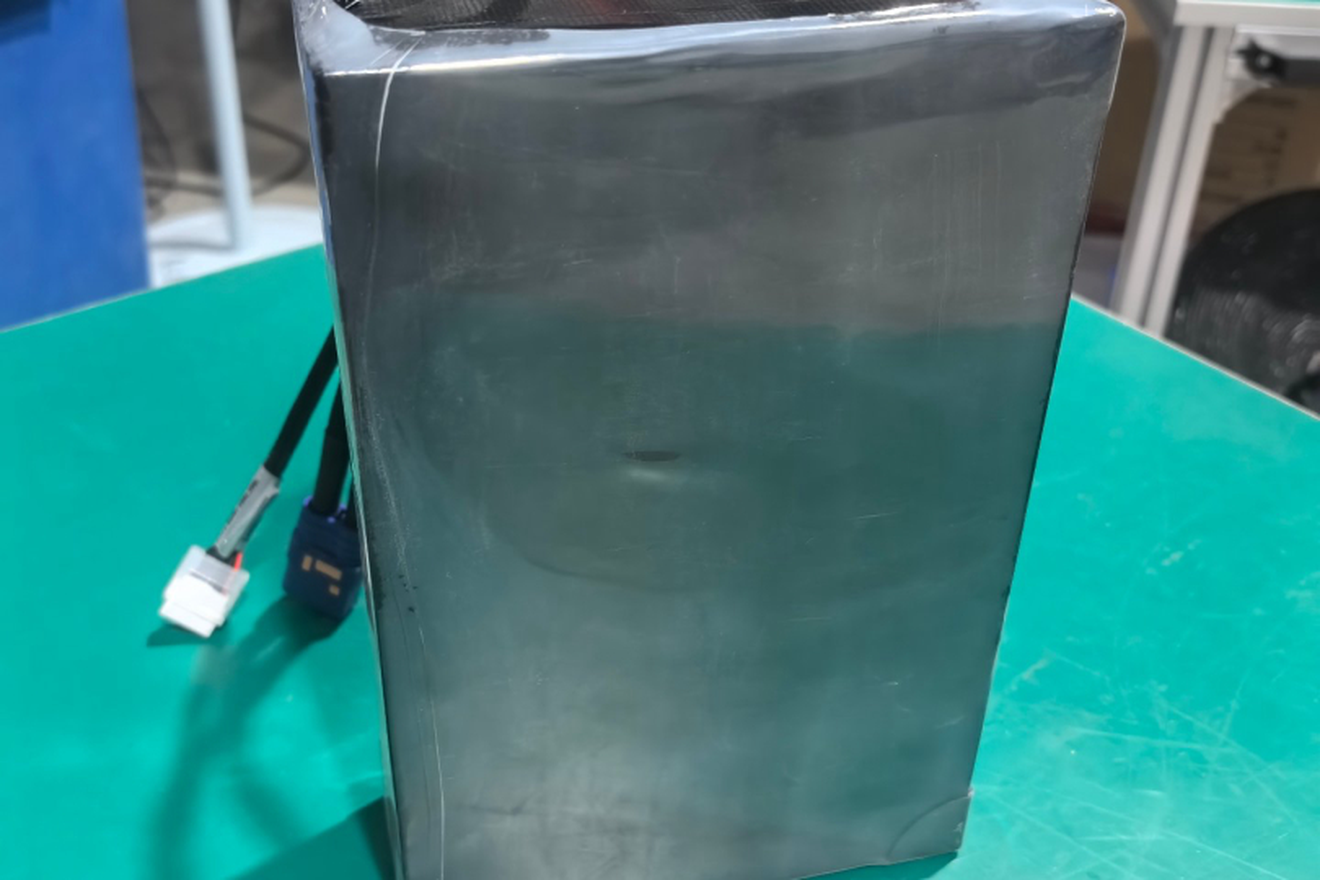

Upright lithium battery pack with red and black discharge leads
Upright pack format for frame-mounted installation.

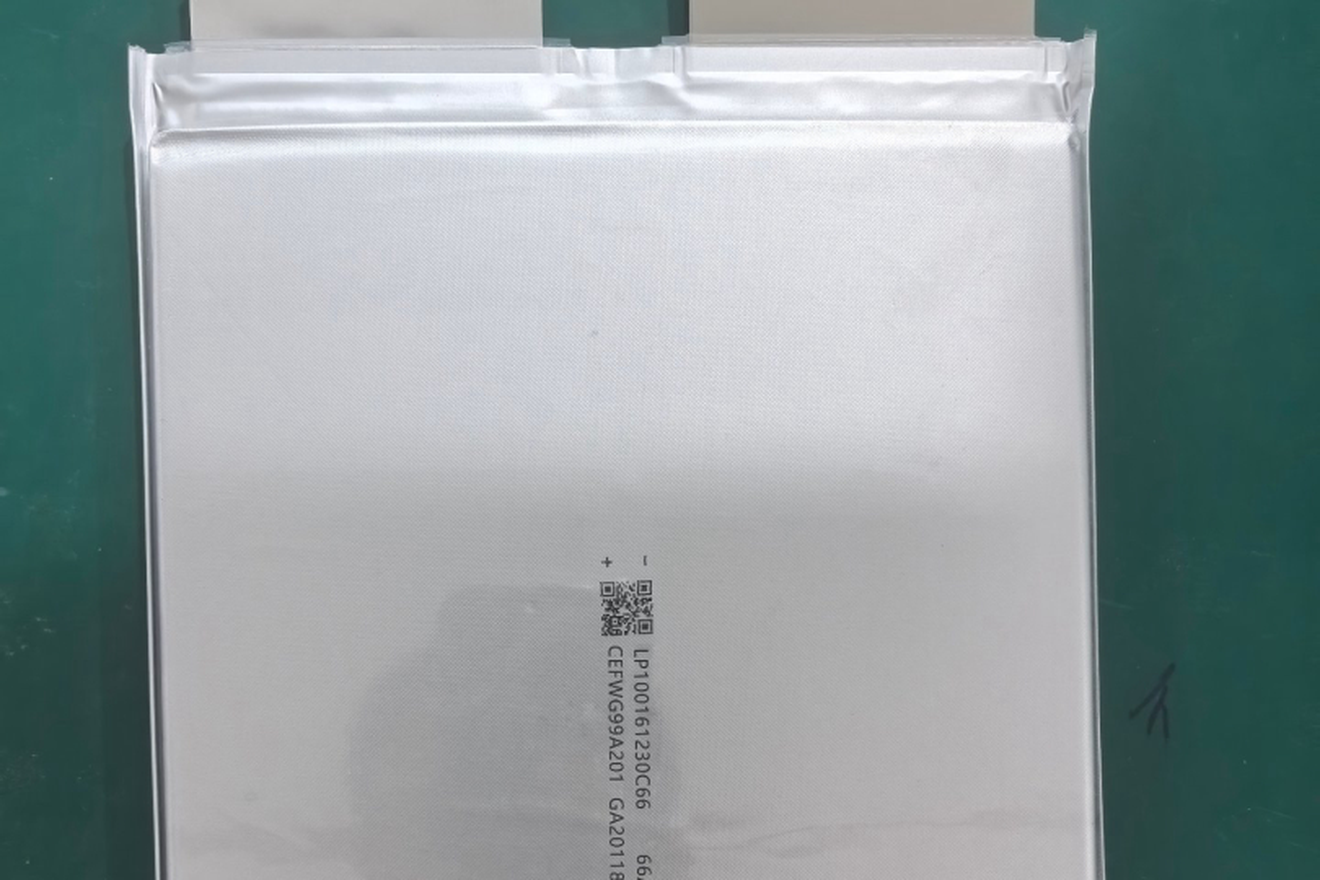

Close up of a lithium polymer pouch cell with aluminium tabs
Aluminium-laminate pouch cell before tab welding.

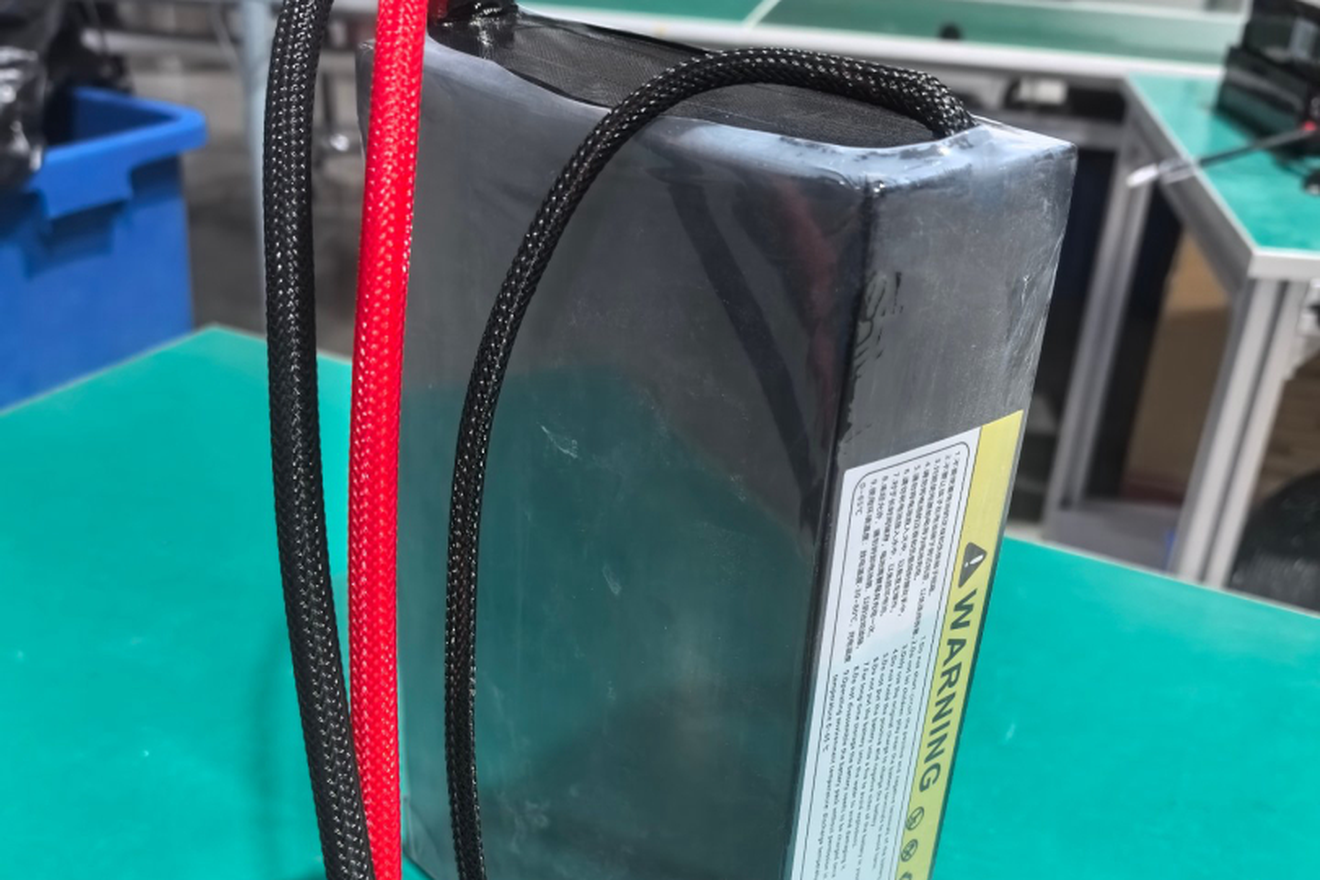

Lithium battery pack with safety warning label and braided cable set
Pack fitted with its transport warning label.

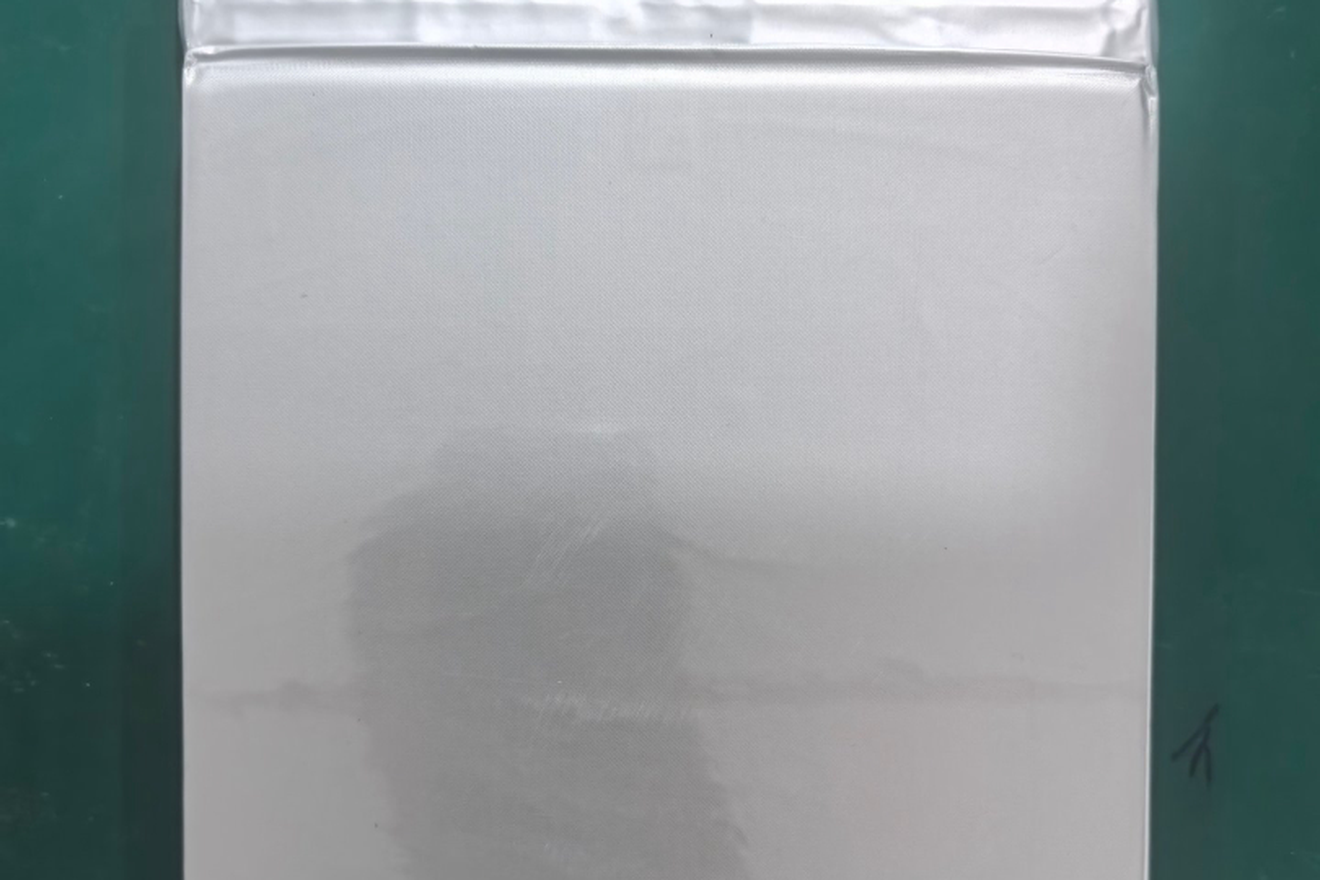

Bare lithium polymer pouch cell showing aluminium laminate film and electrode tabs
Bare pouch cell showing terminal tabs and edge seal.

Application Solutions

The same cell platform is packaged six different ways. Each route has its own mechanical
envelope, BMS strategy and certification path, described in our
battery application solutions library.

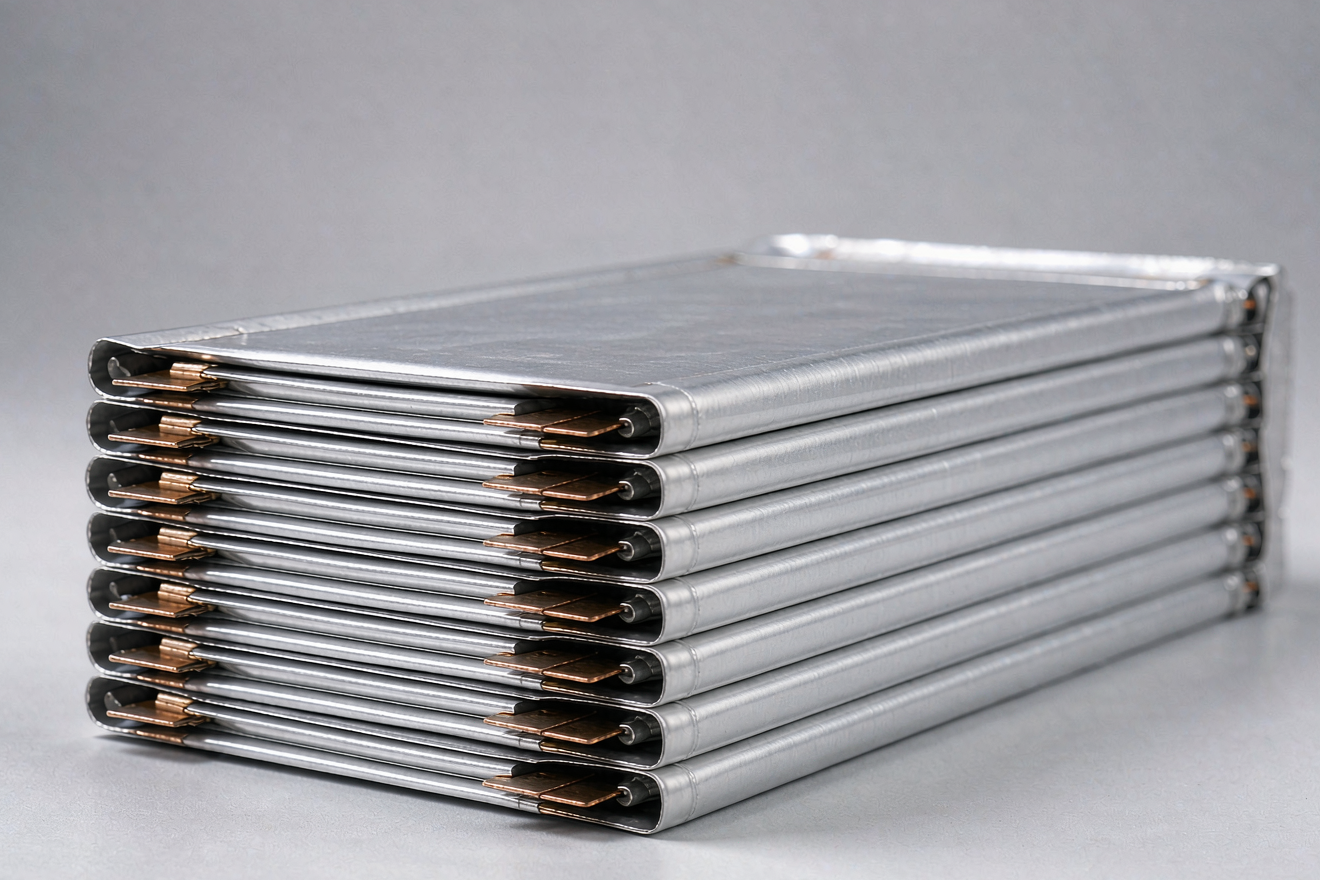

Slim high energy density lithium polymer pouch cells for industrial drones

Industrial Drones & UAV

270-460 Wh/kg pouch cells with 10C burst discharge for survey, inspection, mapping and logistics airframes. Trade cycle life against endurance series by series.

Explore drone battery range →

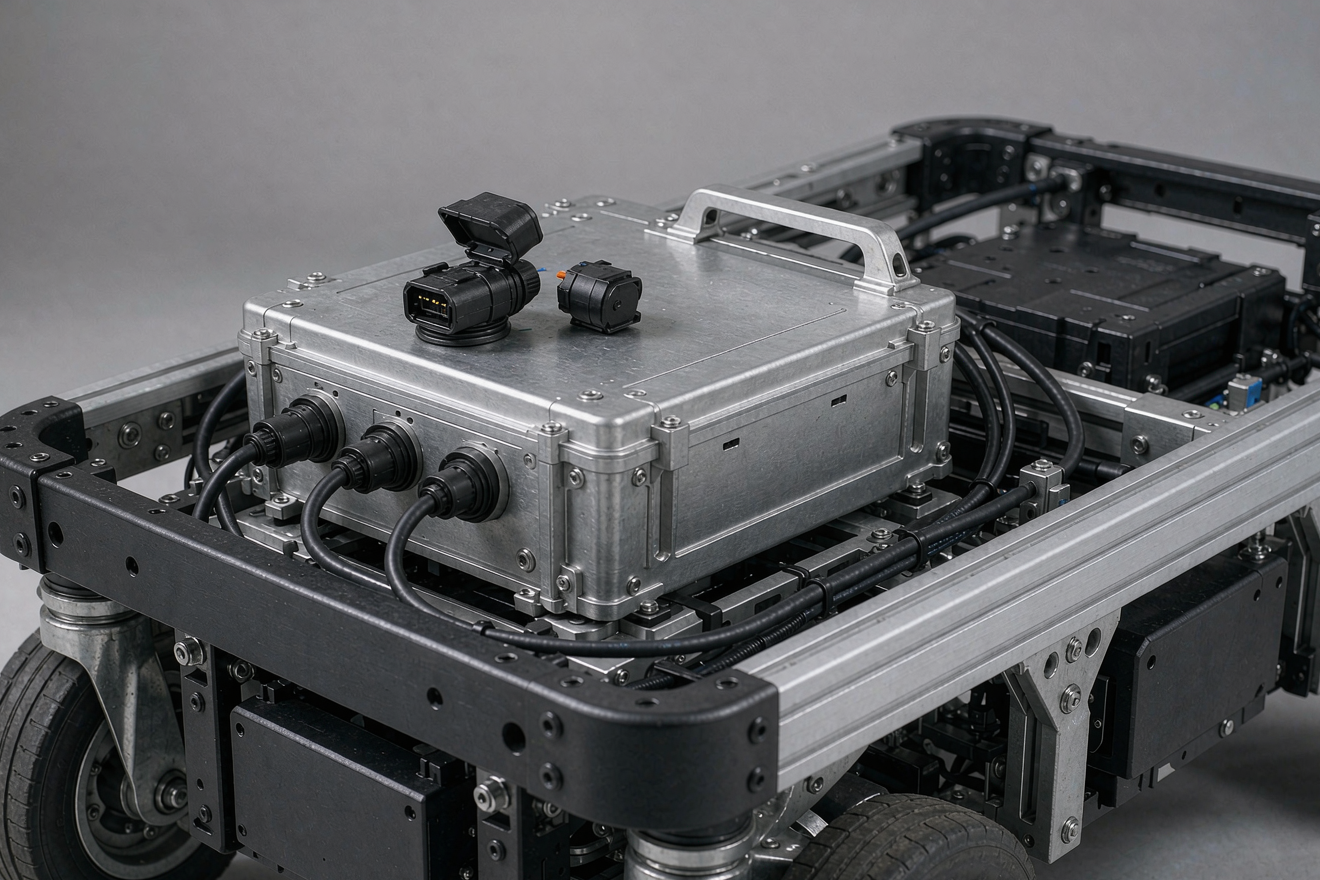

Compact lithium battery module for autonomous mobile robots and AGVs

Robotics & Autonomous Equipment

Lightweight high-energy packs for autonomous ground units, inspection robots and mobile platforms that must run a full shift between charges.

Explore robotics battery solutions →

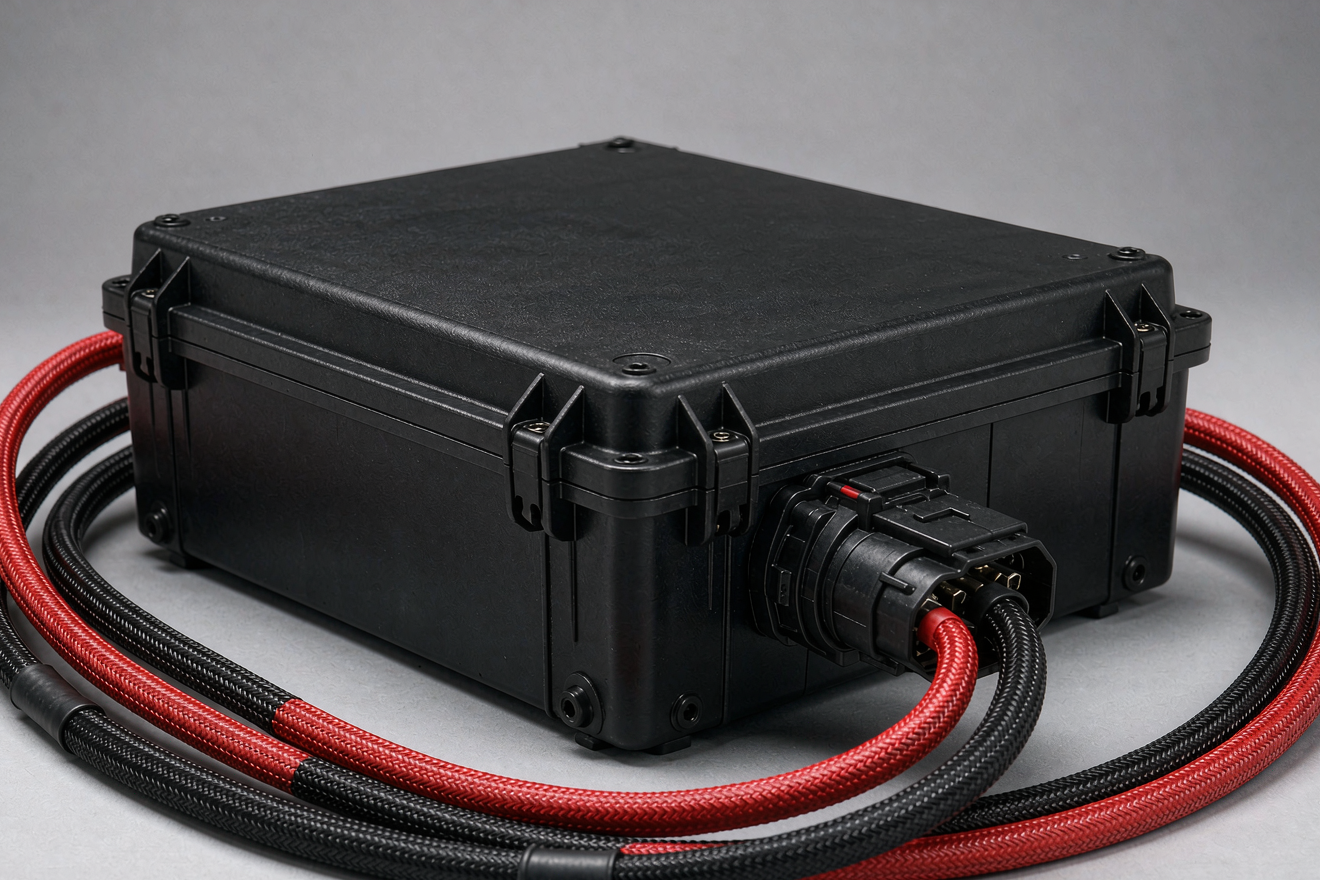

High power soft pack lithium battery pack for electric motorcycles

Electric Motorcycles & Powersports

High-rate soft-pack cells built around sustained current and instant burst delivery, with thermal headroom for repeated acceleration.

Explore electric motorcycle battery →

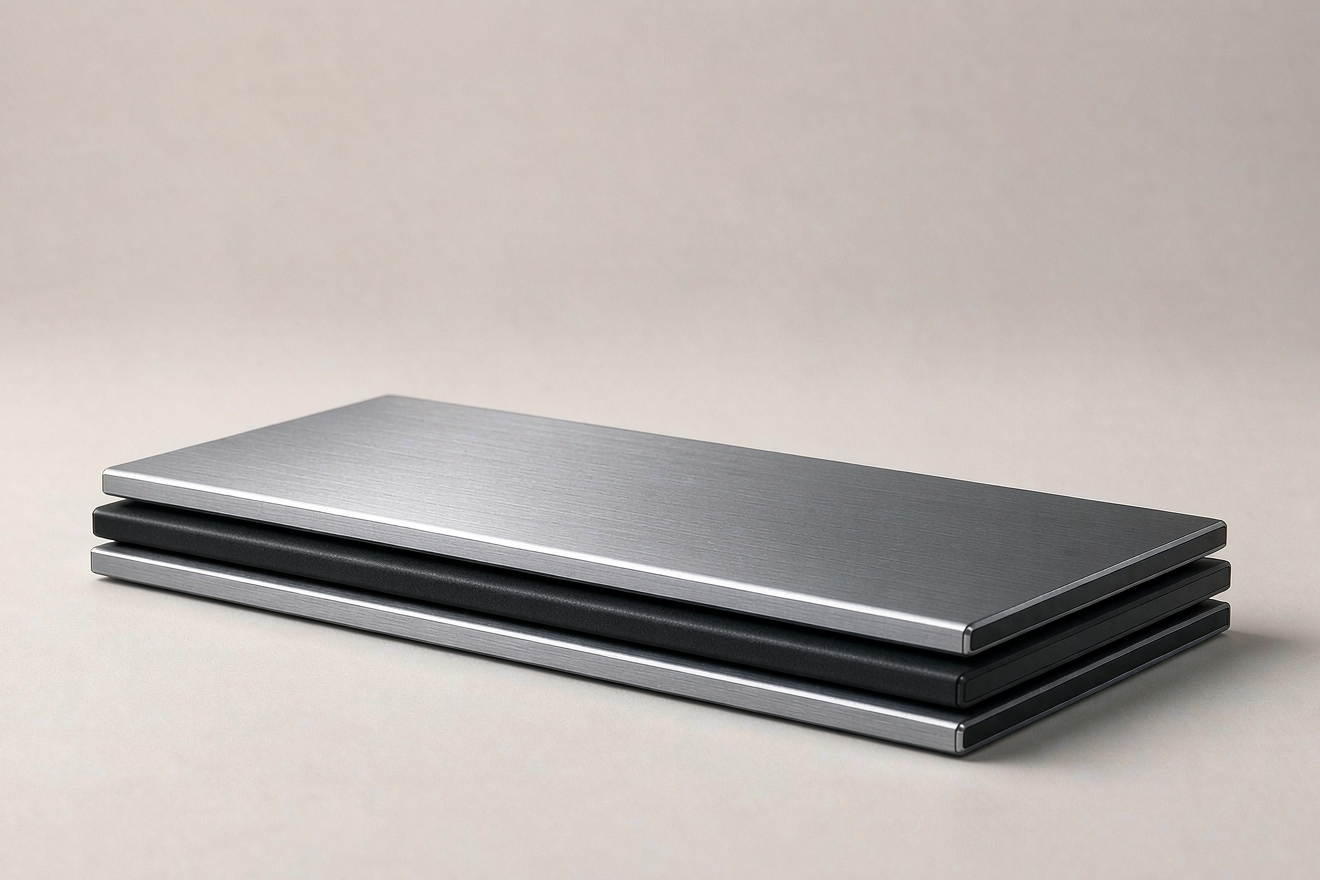

Ultra thin portable lithium battery cells for power banks and field electronics

Portable Power & Field Electronics

Ultra-thin cells down to a few millimetres for power banks, test instruments and carried field equipment where volume is the binding constraint.

Explore portable lithium cells →

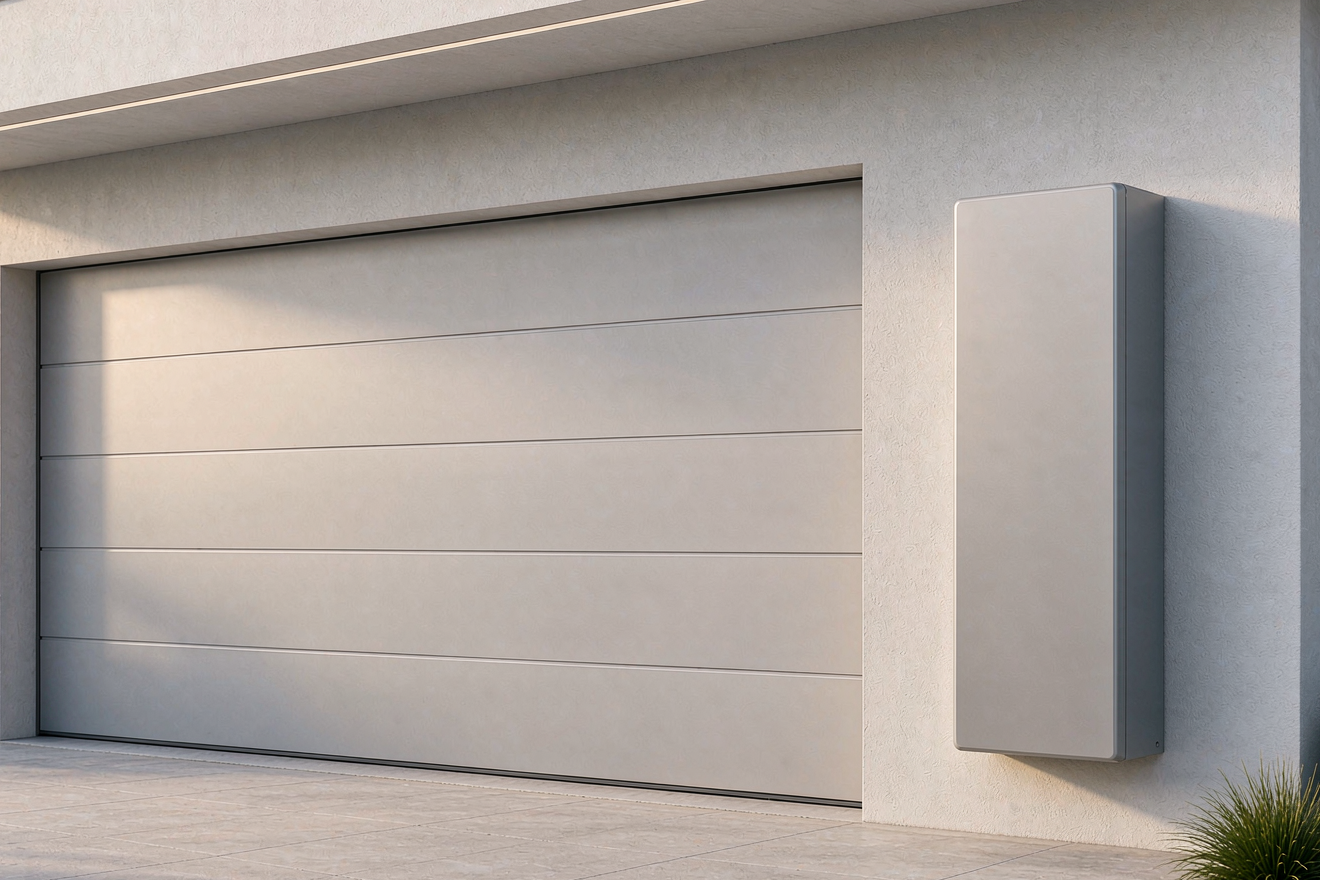

Home energy storage battery cabinet mounted on an exterior wall

Home & Commercial Energy Storage

Wall-mounted and cabinet-format storage from residential self-consumption through to modular commercial blocks with 50-300 kWh configurations.

Explore energy storage battery →

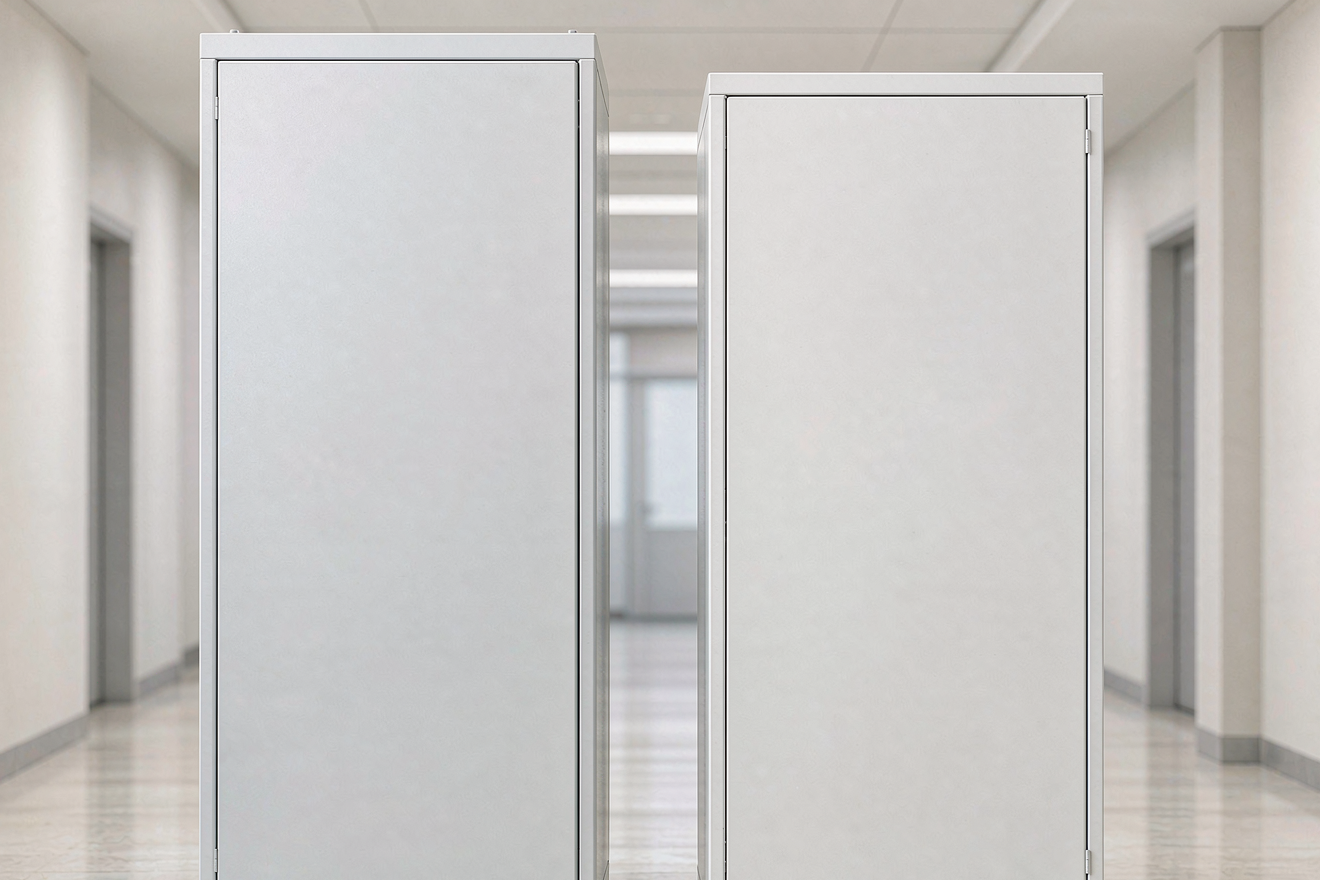

Lithium battery backup cabinet installed in a building utility corridor

Backup & Critical Power

Standby banks for base stations, data rooms, traffic infrastructure and industrial controls that cannot tolerate a voltage collapse.

Explore backup battery systems →

Why Buyers Specify Horizon Power

Horizon Power engineers and ships lithium cell solutions for global buyers and integrators.
Chemistry choices across semi-solid state, sodium-ion and conventional
NCM and LFP lines are compared against your duty cycle rather than sold on a datasheet.

Seven density tiers, one platform

Pick 270 Wh/kg for 1000-cycle economy or 460 Wh/kg for absolute endurance without redesigning the whole pack.

Low internal resistance

Ultra-low IR cells hold voltage under aggressive throttle, so BMS cutoffs do not end missions early.

Burst capability

Most series accept a 10-second 10C pulse, covering take-off, climb and payload winch transients.

Documented cycle grading

Every density tier ships with stated capability retention: 1000, 800, 500 or 300 cycles to above 80 percent.

OEM geometry freedom

Prismatic envelopes from thin 6.5 mm stacks up to large-format 150 Ah blocks for bespoke airframes.

Shipment documentation

UN38.3 test summaries, IEC 62133 alignment and air-freight paperwork prepared per consignment.

Customisation & OEM Process

Most orders start as a drawing, a duty cycle or a teardown of an existing pack. This is the path
from first email to volume release.

  1. Brief

    Send target voltage, capacity, continuous and peak current, envelope limits, duty cycle and annual volume.

  2. Cell selection

    We shortlist models across the seven density tiers and confirm the series that meets endurance and duty targets.

  3. Pack engineering

    Series/parallel layout, busbar and tab design, enclosure, potting and thermal path modelled to your airframe or cabinet.

  4. BMS & validation

    Protection thresholds, balancing strategy and SOC window set, then validated on charge/discharge and pulse rigs.

  5. Certification & ramp

    UN38.3, IEC 62133 and destination-market paperwork prepared, then pilot batch before volume release.

Typical sample lead time is measured after cell selection is signed off. Volume schedules are
quoted against annual take-off, not single batches.

Get Your Battery Specification Reviewed

Send your target voltage, capacity, peak current, envelope limits, certification market and annual volume.
Our engineering team returns a buildable pack design with a quotation within 24 hours.
