Battery Solution Manufacturing for Vehicles: A Senior Engineer’s Production-Floor Playbook
I have spent the better part of fifteen years on the production floor of lithium-ion cell and pack factories, and if there is one lesson that survives every new chemistry and every new vehicle platform, it is this: a battery solution for a vehicle is only as good as the manufacturing discipline behind it. A brilliant cell specification that cannot be welded, graded, and validated at scale never leaves the lab. When I help an OEM or a tier-one supplier stand up a line for an electric scooter, a low-speed EV, an AGV, or a marine pack, the conversation is never about the headline energy density — it is about repeatability, traceability, and the unglamorous hundred tiny tolerances that decide whether a pack lasts eight years or eight months in the field.
Why Vehicle Battery Manufacturing Demands a Different Playbook
A vehicle is a hostile envelope for any energy storage system. The pack lives through continuous road vibration, shock loads from potholes and curbs, ambient swings from −30°C to +60°C, relentless thermal cycling, and ingress from water, dust, and road salt. Most importantly, it is safety-critical: unlike a consumer power bank, a vehicle pack failure is a field recall and a lives-at-risk event. That single fact changes everything about how you build it.
Manufacturing a vehicle pack therefore has to hit automotive grade from day one. We run to IATF 16949 for the quality system, ISO 26262 for functional safety (with ASIL-rated architecture), and APQP/PPAP to gate every engineering change. The cell is only the start of the story; the finished pack is a structural, thermal, and electronic system, and the factory is where those three disciplines either converge or fall apart.
Incoming Cell Qualification — Grading Before You Build
You never build a premium pack from ungraded cells. Every incoming shipment is sampled and graded against a tight spec. Capacity grading keeps the coefficient of variation (CoV) below 6% within a matched module; DCIR is measured by the 4-wire Kelvin method with a CoV under 10%; self-discharge, expressed as the K-factor, stays below 1.0 mV/day; and ACIR is checked on a per-lot basis. A pack is only as balanced as its weakest cell, and mismatched cells cause premature divergence, extra balancing current, and localized heat.
I have rejected entire cell lots when DCIR spread exceeded 12 mΩ, because that divergence shows up as hot spots two years into service. These incoming gates sit on top of the baseline cell safety standards — UN38.3 (T.1–T.8 transport testing), IEC 62133-2 (portable cell safety), and IEC 62619 (industrial cell requirements) — so the build starts from a known, qualified foundation.

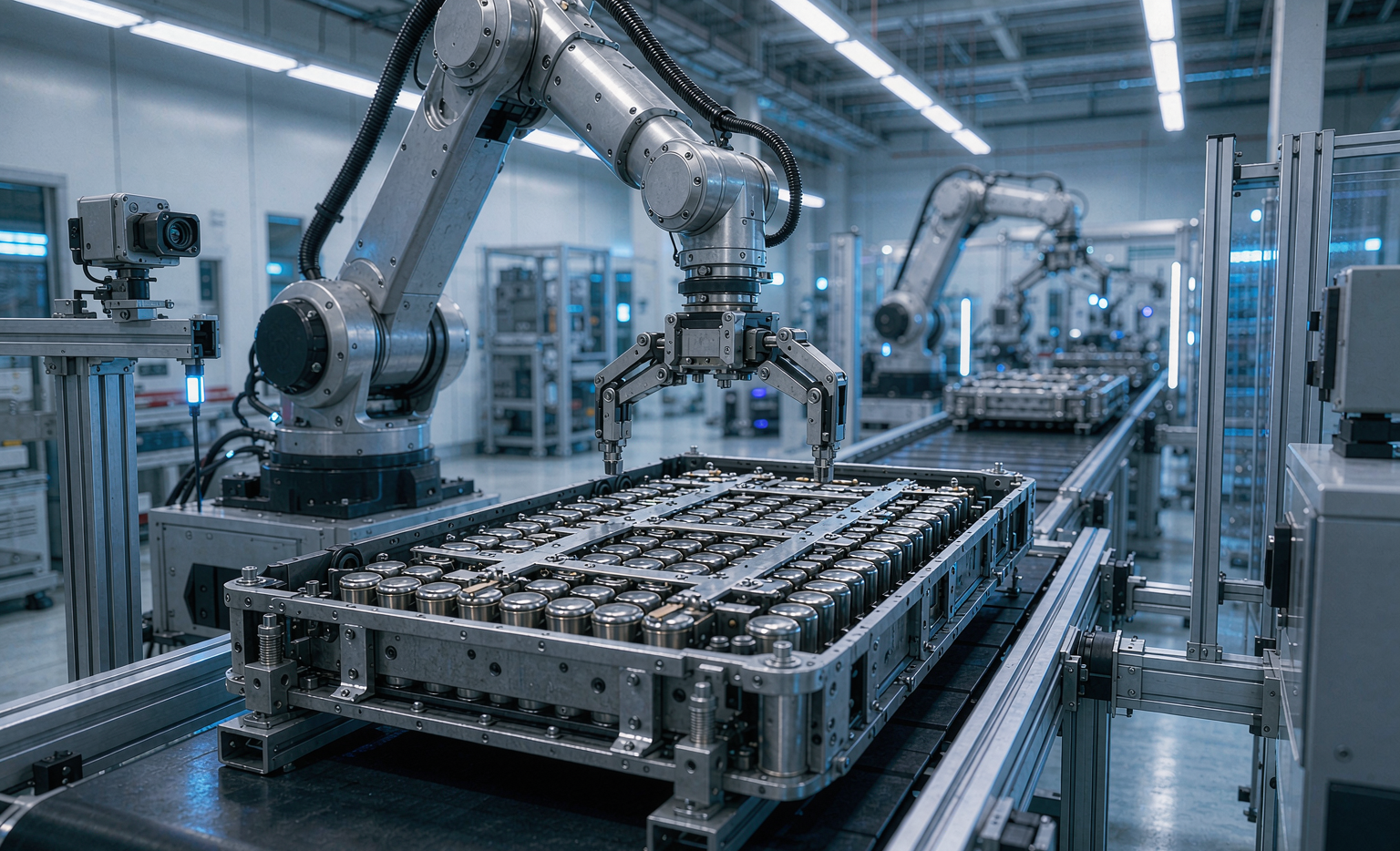

Cell-to-Pack Assembly — Welding, Compression, and the Thermal Runaway Margin
The heart of vehicle battery manufacturing is the join. We laser-weld pure-nickel tabs to a target weld resistance below 0.15 mΩ and a pull strength above 25 N, holding process capability at Cpk ≥ 1.67 so the joint is statistically stable, not just good on a lucky day. Busbars are set with a 0.3–0.7 MPa preload to keep contact resistance stable under years of vibration. Compression matters more than most people expect: cells expand on charge, and without controlled preload you get gap growth, resistance creep, and a slow walk toward thermal runaway.
The cooling plate frequently doubles as the structural compression member, which is why battery pack design and mechanical engineering cannot be separated on the line. The chemistry choice sets your safety margin too — LFP’s thermal runaway onset near 270°C versus NMC’s near 210°C is the difference between minutes and seconds of reaction time. We design for propagation resistance with aerogel or mica barriers, gap fillers, and vent channels so a single cell failure does not cascade. A custom battery solution lets us tune the weld schedule, preload, and cooling to the exact duty cycle instead of forcing an off-the-shelf module to do a job it was never built for.
BMS Commissioning — The Brain Has to Be Proven, Not Assumed
A pack without a validated battery management system is a liability. We build layered protection: over-current protection (OCP) that trips below 200 ms at rated current, short-circuit protection (SCP) even faster, a pre-charge circuit to limit inrush, accurate fuel gauging, and either a pyro-fuse or a contactor for isolation. An isolation-resistance monitor watches for ground faults, and the whole stack communicates over CAN 2.0B. For vehicles, this is an ISO 26262 ASIL-rated architecture, not a generic hobby controller.
Commissioning is per-unit, not per-batch. We load the firmware, run the relay and weld-detect test, verify cell balancing, and confirm every NTC maps to the correct channel. A battery pack design that treats BMS commissioning as an afterthought will fail in the field at the worst possible moment — usually during a peak-power demand when the contactor welds shut.
Formation, Burn-In, and the 100% End-of-Line Gate
Every pack gets formation and burn-in; we do not sample our way past this step. The acceptance gates are explicit: capacity at or above 98% of nominal, DCIR within +10% of design, and cell-to-cell voltage spread of 30 mV or less at end of discharge, with no thermal event during the cycle. Then comes the environmental stress screen — vibration to ISO 16750-3 (road vehicles), mechanical shock to MIL-STD-810H 516.8, random vibration to 514.8, ingress to IP67 (or IP6K9K for underbody parts), plus drop and thermal-shock testing.
The end-of-line functional test runs on 100% of units. For a safety-critical vehicle pack there is no AQL sampling on the protection functions — every BMS is exercised, every weld is logged, every pack is characterized before it ships.
Traceability and Automotive-Grade Quality
IATF 16949 demands a genealogy you can query in seconds, and that is exactly what we build. Every cell carries a DataMatrix code, every weld records its parameter set, and every BMS stores a firmware hash; the MES ties it all together. When a field failure appears, we trace it back to the lot, the weld map, and the formation curve in minutes rather than weeks. Advanced product quality planning (APQP) and the production part approval process (PPAP) gate every engineering change so the line never quietly drifts. This disciplined traceability is what separates a serious battery solution from a hobby pack, and it is the first thing a tier-one auditor looks for.
Bringing It Together — A 48V Light-EV Pack Example
To make this concrete, here is a 48V 30Ah LFP pack I commissioned for a low-speed delivery EV. It used 15s2p 32140 cells rated for 0.3C charge and 3C discharge peaks. Incoming cells were graded to a capacity CoV below 6%. We laser-welded pure-nickel tabs at Cpk 1.7, set the cooling plate with 0.5 MPa preload, and commissioned a BMS with 100A OCP under 200 ms, pre-charge, CAN 2.0B, and ASIL-B rating. Formation was a 1C cycle plus a 72-hour burn-in, with gates of ≥98% capacity and ≤30 mV spread.
After ISO 16750-3 vibration and IP67 validation, the pilot of 400 units delivered more than 2,000 cycles at 80% depth of discharge, under 2% annual capacity fade, and zero thermal events. The standards floor we built to was UN38.3 (T.1–T.8), IEC 62133-2, IEC 62619, UL 2580, ISO 26262, IATF 16949, GB 38031, ECE R100, IATA Sec II at 30% state of charge for transport, and FAA/EASA where aerial use applied. The result was not magic — it was the playbook above, executed consistently on the floor.
FAQ
What standards govern vehicle battery manufacturing?
The stack runs from cell to vehicle: UN38.3 (T.1–T.8 transport safety), IEC 62133-2 (cell safety), IEC 62619 (industrial cells), UL 2580 (EV battery), ISO 26262 (functional safety), IATF 16949 (quality system), GB 38031 (China EV), and ECE R100 (UN vehicle regulation). Transport happens at 30% state of charge per IATA Sec II, with FAA/EASA rules applying to aerial vehicles.
Why is cell grading so important for vehicle packs?
A pack is a series chain, so its weakest cell sets the usable capacity and its most divergent cell drives balancing heat. Grading to a capacity CoV below 6% and a DCIR CoV below 10% keeps the spread low, so the BMS rarely balances and the pack ages evenly. Without grading you get premature capacity fade and, in the worst case, localized heating that no BMS can fully rescue.
How do you prevent thermal runaway propagation in a vehicle pack?
We use three layers: a chemistry margin (LFP’s ~270°C onset versus NMC’s ~210°C), cell-to-cell thermal barriers such as aerogel or mica with vent channels, and a BMS that trips on dT/dt and isolates fast via a pyro-fuse in under 5 ms. We validate propagation resistance per ECE R100 with a controlled single-cell nail test before any volume production.
What is a realistic manufacturing yield target for vehicle packs?
For automotive-grade lines we target first-pass yield above 95% at end-of-line, with the gap closed by rework of non-safety items. Capacity and DCIR gates are zero-defect — any unit outside spec is scrapped or quarantined — while cosmetic and label issues are correctable. Continuous SPC keeps Cpk at or above 1.67 on weld and compression.
How does a custom battery solution differ from an off-the-shelf pack?
Off-the-shelf packs are built to a generic duty cycle and rarely survive a specific vehicle’s vibration, thermal, or peak-power envelope. A custom battery solution grades the cells, tunes the weld schedule and preload, sizes the cooling, and commissions the BMS to the actual load profile — which is why well-engineered custom packs outlast generic ones by a wide margin. If you are building a drone or a high-rate platform, the same discipline applies to a drone battery, and the fundamentals always trace back to a sound lithium battery cell.
