Semi-Solid State Battery Testing and Standardization Methods
As a senior lithium battery engineer at Horizon Power, I have spent the better part of the last eight years moving lithium-ion cells from lab benches to certified, field-proven battery packs. When our team began shipping semi-solid state battery packs to commercial drone and stationary energy-storage customers in early 2023, the hardest part was never building them — it was proving they were safe, consistent, and repeatable under real-world abuse. A conventional lithium battery has decades of test history behind it. A true solid-state battery is still mostly a research story. A semi-solid battery sits in the gray zone between the two, and most legacy qualification standards were simply not written with that gray zone in mind.
What Actually Defines a Semi-Solid State Battery
A semi-solid state battery uses a gel-like or composite electrolyte that is partially solidified but still contains a small fraction of liquid plasticizer to keep ions moving. In our Horizon Power cells, the semi-solid electrolyte typically contains 5–15% by weight of residual solvent, which is a dramatic reduction compared with a conventional lithium battery that is 35–45% liquid electrolyte by weight. That single change cuts the flammable liquid volume inside the cell by more than half while keeping room-temperature ionic conductivity above 1.0 mS/cm — close enough to liquid cells that the cell can still be formatted on standard lithium-ion production lines.
This is the key engineering trade. We are not chasing the highest possible energy density; we are chasing a cell that behaves predictably. The semi-solid separator resists dendrite penetration far better than a thin liquid separator, which is why many of our customers ask us for a semi-solid battery when their application involves high charge rates or outdoor temperature swings.
From a manufacturing standpoint, the semi-solid electrolyte is also forgiving. Because it is paste-like, we can coat it with standard slot-die equipment used for conventional lithium battery electrodes, which keeps capital cost low and lets us scale a custom battery solution without rebuilding the factory. That manufacturing continuity is exactly why a semi-solid state battery reaches production years before most solid-state battery roadmaps promise volume.
Electrical Performance Testing Before Any Certification
Before a pack ever reaches a qualification lab, we run formation and trimming cycles on every cell. The routine is similar to a liquid lithium battery but with tighter windows. We measure usable capacity at 0.2C, 1C, and 3C discharge and require the 3C capacity to stay within 92% of the 0.2C reference. We record DC internal resistance via a pulsed discharge and AC impedance at 1 kHz, and we reject any semi-solid battery cell whose impedance drifts more than 8% from the formation median.
We also characterize the voltage plateau. A healthy semi-solid state battery shows a stable discharge curve between 3.0 V and 4.2 V under load, and we flag any cell with a soft knee above 3.4 V because that usually points to poor wetting of the cathode by the semi-solid electrolyte. These are the unglamorous checks that decide whether a pack will survive two years in the field.
Rate Capability and Power Density
For drone customers, the 3C to 5C discharge window matters more than peak capacity. We plot power density against state of charge and require a flat envelope so the aircraft does not lose climb performance as the semi-solid battery discharges. This is where a semi-solid battery often beats a thick solid-state battery design that sacrifices ion transport for safety.
Safety and Abuse Testing Aligned to UN38.3 and IEC 62133
The backbone of our qualification is UN38.3, the transport safety test that every lithium battery must pass before it can be shipped by air or sea. The eight UN38.3 tests — altitude simulation, thermal test, vibration, mechanical shock, external short circuit, impact, overcharge, and forced discharge — are mandatory, and we run them on every new cell format. For a semi-solid state battery we add an extra margin because the semi-solid electrolyte changes how heat propagates during an internal fault.
On top of UN38.3 we apply IEC 62133-2 for portable cells and IEC 62619 for industrial stationary packs. The tests we care about most are nail penetration and crush. During nail penetration we log cell surface temperature every 200 milliseconds; a pass for us means no thermal runaway that pushes the external can above 150°C and absolutely no open flame. A conventional liquid lithium battery often vents or ignites under the same nail; a well-built semi-solid battery tends to bulge and self-limit instead.
Thermal Cycling and Calendar Aging Validation
A safety certificate tells you a cell survives one bad day. It does not tell you how the cell behaves after 18 months on a wall in Arizona or a warehouse in Harbin. So we run 45°C float aging for 500 hours and map capacity retention, then repeat a cold soak at −20°C to confirm the semi-solid electrolyte has not stiffened into a blocking state.
We measure swelling with a dial gauge and require thickness growth below 8% after the aging cycle. We also track the stiffness of the semi-solid electrolyte using dynamic mechanical analysis, because a semi-solid battery that hardens with age loses conductivity and quietly loses capacity. This is the kind of slow failure a generic “passed safety test” stamp will never catch.
Where Standardization Stands Today
There is still no single global standard dedicated exclusively to semi-solid state battery testing. China’s GB/T working groups, IEC TC21/SC21A, and SAE committees are all drafting annexes that reference semi-solid and solid-state battery chemistries, but the documents are evolving. At Horizon Power we follow a hybrid protocol that combines UN38.3, IEC 62619 for industrial cells, and IEEE 1625 guidance for multi-cell packs.
The practical advice for any buyer is simple: ask for a test report that names exactly which clauses were applied to the semi-solid battery, not a generic certificate. A real report lists the test temperature, the charge cut-off, the sample size, and the pass criteria. If a supplier cannot show you that, you are buying a story, not a certified lithium battery.
How We Validate at Production Scale

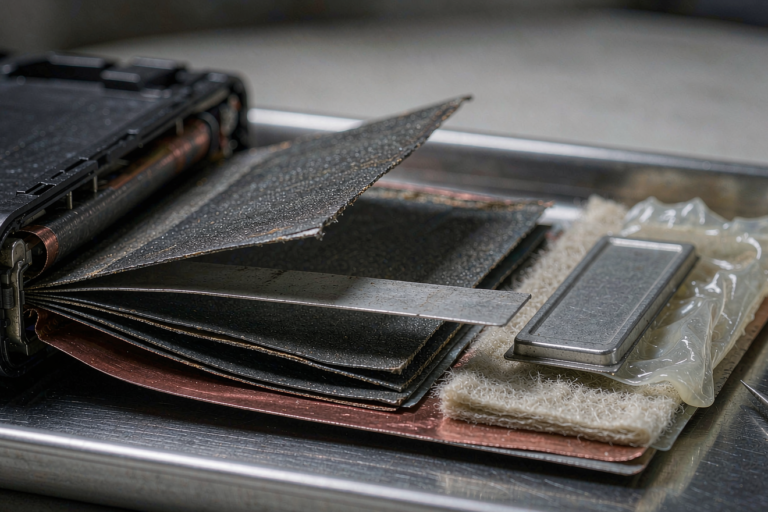

On our production line, every pack gets a 100% end-of-line electrical test, and we destructively sample cells per an AQL 1.0 plan for tear-down and post-mortem analysis. Each semi-solid state battery pack ships with a traceable formation record, and for a custom battery solution we keep the original cell-level data so a B2B customer can trace a returned pack all the way back to its first charge.
This is the part that makes standardization real. A standard is only useful if you can prove, pack after pack, that you actually followed it. Our internal dashboard flags any batch whose formation energy deviates more than 3% from the fleet median, and that batch is quarantined before it can be built into a semi-solid battery assembly.
Cycle Life Testing and Capacity Fade Modeling
A certificate of capacity is a snapshot; cycle life is the movie. For every semi-solid state battery cell format we run 500 to 800 full equivalent cycles at 25°C with a 1C charge and 1C discharge, logging capacity every 50 cycles. We model fade with a two-term exponential plus linear capacity-loss equation and extrapolate to 80% state-of-health. In our fleet data, a semi-solid battery typically holds 80% capacity near 1,200 cycles under these conditions, compared with roughly 800 cycles for the equivalent liquid lithium battery on the same test bench.
We also track coulombic efficiency per cycle. A healthy semi-solid electrolyte shows coulombic efficiency above 99.9% after formation, and any sustained drop below 99.5% triggers a review of the cathode wetting step. It is one of the cheapest early-warning signals we have, and it is built into the custom battery solution test plan for every long-life storage customer because a slow efficiency bleed almost always precedes a hard capacity failure.
Impact Testing and Mechanical Robustness
Drones crash, and inspection aircraft operate near structures. For aerospace customers we add a drop-and-vibration profile beyond the UN38.3 baseline: a 1.5 m multi-axis drop and a three-hour random vibration sweep up to 500 Hz. A semi-solid battery generally survives this better than a liquid pouch because the semi-solid electrolyte does not slosh, but we still verify that no cell shows a resistance jump above 15% after the profile. If it does, the pack design goes back to the mechanical team rather than to the certification lab.
Reading a Test Report Like an Engineer
When a supplier hands you a semi-solid state battery datasheet, the useful questions are narrow. What was the sample size, and were the cells from a production lot or a hand-built prototype? At what temperature was capacity measured, because a semi-solid battery that reads 5,000 mAh at 25°C may read 3,800 mAh at 0°C? Which standard clauses were actually invoked, and is there a dated, signed report behind the stamp? We publish our own test summaries with these details because a lithium battery buyer who cannot see the method cannot trust the number.
FAQ
How long does semi-solid state battery testing take before mass production?
For a new cell format, plan on 10–14 weeks. That covers UN38.3 transport testing, IEC 62133-2 or IEC 62619 safety validation, and a 500-hour calendar aging study. A custom battery solution built on an already-qualified cell is faster because only the pack-level tests are new.
Is a semi-solid battery safer than a regular lithium battery?
In our testing, yes, in the ways that matter for field use. The reduced liquid content lowers fire risk during puncture or crush, and the semi-solid separator resists dendrite growth. It is not a magic replacement for a true solid-state battery, but for most drone and storage applications it is a meaningful step up from a conventional lithium battery.
Which certification should I require from a supplier?
At minimum, UN38.3 for transport plus IEC 62133-2 (portable) or IEC 62619 (industrial). Ask for the underlying test report, not just the certificate, and confirm the clauses were applied to the specific semi-solid battery model you are buying.
Can semi-solid state battery packs replace solid-state battery designs today?
For nearly all commercial applications shipping in 2026, yes. A fully solid-state battery still struggles with cost and ion transport at room temperature. A semi-solid battery delivers most of the safety benefit at a fraction of the price and on existing lithium-ion tooling, which is why we recommend it for production programs rather than waiting on solid-state battery maturity.
