Sodium-Ion Battery State of Charge Estimation Accuracy
As a battery engineer who has spent the last decade building lithium and sodium packs for industrial customers, I keep hearing the same concern from system integrators: the state of charge readout on a sodium-ion battery feels less trustworthy than on a lithium unit. The short answer is that sodium-ion chemistry has a very flat open-circuit voltage curve across most of its usable range, which makes voltage-based SOC inference weak. In this article I will walk through how we at Horizon Power approach state of charge estimation for sodium-ion cells, why coulomb counting drifts, and what accuracy you can realistically plan around in the field.
Why Sodium-Ion SOC Is Harder Than Lithium
The single biggest challenge in sodium-ion battery state of charge estimation is the shape of the open-circuit voltage curve. For a typical lithium iron phosphate cell the OCV sits nearly flat between 10 percent and 90 percent SOC, and that already forces engineers to lean on current integration. Sodium-ion layered oxide and polyanion cathodes are often flatter still across the mid-range, with only a narrow knee near the top and bottom of charge. When 200 millivolts of voltage change maps to 60 percent of capacity, a 5 millivolt sense tolerance translates into several percent of SOC uncertainty before you have even started.
Temperature makes the problem worse. The OCV of a sodium-ion cell shifts by roughly 0.5 to 1.0 millivolts per degree Celsius in the flat region, so a pack that rests at 25 degrees Celsius and then operates at 0 degrees Celsius will show a different resting voltage for the same true SOC. Self-discharge, which tends to be higher in sodium-ion than in lithium, quietly removes ampere-hours that coulomb counting never sees. In my bench work I have measured resting self-discharge equivalent to 1 to 3 percent of capacity per month on fresh cells, and that alone can push an uncalibrated SOC estimate off by a full step between charges.
The Two Core Methods Engineers Actually Use

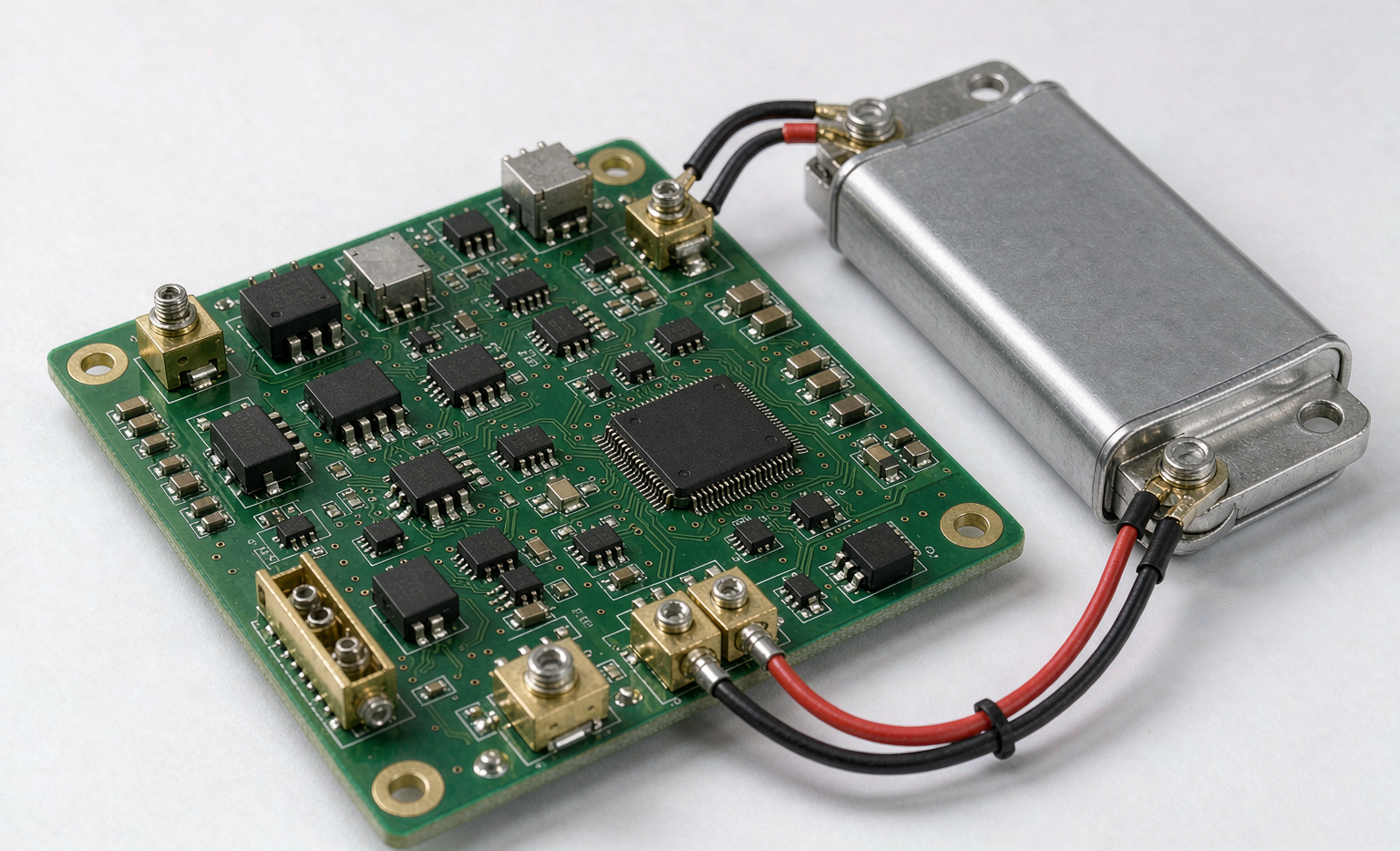

In practice every battery management system blends two independent estimates. The first is an OCV-SOC lookup table: the controller measures terminal voltage after the pack has rested, then maps it to a stored curve. This works only when the cell has been quiescent for long enough that polarization has decayed, and only where the curve has meaningful slope. In the flat mid-region it is close to useless on its own.
The second method is coulomb counting, also called ampere-hour integration. The BMS multiplies measured current by time and tracks the running charge in and out of the pack. It is excellent at capturing short-term dynamics but it is an open-loop integrator: any offset or gain error in the current sensor accumulates forever. A mere 0.5 percent current-sense error becomes a 5 percent SOC error after ten full equivalent cycles. That is why neither method survives alone, and why sodium-ion battery state of charge estimation always combines the two.
Sensor Errors That Quietly Ruin Accuracy
Most field complaints about SOC accuracy trace back to sensor error, not chemistry. A current shunt or Hall sensor with a 0.2 percent offset looks harmless on the datasheet, yet at low loads the offset dominates the signal. A forklift pack drawing 5 amperes through a sensor rated for 200 amperes is operating at 2.5 percent of range, so the offset can be a large fraction of the reading. Voltage sense lines pick up contact resistance and PCB tolerance, and a poorly placed temperature sensor reads the enclosure rather than the cell. We have also seen cell-balancing leakage current of 1 to 5 milliamperes trick the integrator into thinking the pack is discharging when it is actually at rest.
The fix is rarely exotic. We calibrate the current path at two or three known loads, route sense lines directly to the cell terminal, and mount the temperature probe against the cell wall under thermal pad. These steps alone typically cut SOC error by half before any algorithm change. Across a fleet, pack-to-pack variation in self-discharge compounds the problem, because the weakest cell defines the usable window and the controller must estimate SOC for the assembly as a whole rather than for any single cell.
Multi-Model Fusion With Kalman Filtering
The method we standardize on for sodium-ion is an extended Kalman filter that fuses the OCV table, the coulomb counter, and the temperature model into one state estimate. The filter treats SOC as a hidden state and uses the measured terminal voltage as the observation that continually corrects the integrator. When the pack rests, the voltage observation pulls the estimate back toward the OCV curve. When the pack is under load, the filter leans on the current integration and trusts the voltage less because polarization is high.
One detail that matters for sodium-ion specifically is that the OCV table must be calibrated per cell lot. Cathode batch variation shifts the flat region by enough to matter, so we characterize every new lot on a formation cycler and load that curve into the BMS firmware. Without lot-specific tables, even a good filter inherits the table’s error. Periodic full relaxations, such as an overnight idle at the end of a shift, give the filter the quiet window it needs to re-anchor SOC.
Accuracy Targets You Can Plan Around
For a well-designed lithium pack most customers see plus or minus 3 to 5 percent SOC accuracy across a full season. For sodium-ion, because of the flatter curve and higher self-discharge, we quote plus or minus 5 to 8 percent as a realistic spec, and plus or minus 10 percent at the extremes of temperature. That is not a defect to apologize for; it is the honest envelope the chemistry allows, and it is more than enough for the duty cycles sodium-ion is chosen for, such as stationary storage, low-speed industrial vehicles, and backup power.
Capacity fade also reshapes the SOC reference. SOC is normally reported relative to the pack’s current maximum capacity, not its nameplate. If a pack has faded to 90 percent of original capacity, the integrator must use the faded value or every reading runs rich. We update the capacity reference during occasional deep cycles and store it in non-volatile memory so the estimate stays honest as the battery ages.
Practical Validation On The Bench
Before any sodium-ion battery state of charge estimation firmware ships, we validate it against a gold-standard reference on a cycler. We run the pack through a randomized duty profile, log the true ampere-hours from the cycler, and compare the BMS estimate at each step. A passing design stays within the quoted band across the whole temperature range, not just at room temperature. The same cells we use for this work are taken through UN38.3 and IEC 62133 qualification, and for aviation-adjacent modules we keep FAA and EASA transport and test expectations in view even when the unit is not yet flying.
The lesson I give new integrators is simple: trust the SOC readout, but know its band. Design your cutoff and your user interface with the real plus or minus 8 percent in mind, give the pack a regular rest, and the sodium-ion system will behave predictably for years.
Frequently Asked Questions
How accurate is sodium-ion battery state of charge estimation?
A well-designed sodium-ion system typically holds plus or minus 5 to 8 percent SOC accuracy across normal operating temperatures, widening to about plus or minus 10 percent at temperature extremes. That band is driven by the flat voltage curve and higher self-discharge rather than by poor engineering, and it is adequate for storage and industrial duty cycles.
Why does sodium-ion SOC drift more than lithium?
Sodium-ion cells have a flatter open-circuit voltage curve through the mid-range and tend to self-discharge a bit faster than lithium cells. Both effects weaken voltage-based inference and let coulomb-counting error accumulate, so the estimate needs more frequent recalibration through rest periods.
Can a BMS estimate SOC without a current sensor?
It can only with a voltage lookup, and on sodium-ion that method is unreliable in the flat region. A current sensor is effectively mandatory for useful accuracy, and the sensor must be calibrated at low loads where offset error dominates the reading.
How often should the SOC estimate be recalibrated?
The filter re-anchors whenever the pack rests long enough for polarization to decay, often overnight or between shifts. A full deep cycle every few weeks also refreshes the capacity reference so the estimate stays correct as the pack fades.
Does temperature affect sodium-ion SOC accuracy?
Yes. The OCV shifts by roughly 0.5 to 1.0 millivolts per degree Celsius, so a cold pack shows a different resting voltage for the same true SOC. A temperature-compensated model and a probe mounted on the cell wall are needed to keep the estimate honest.
