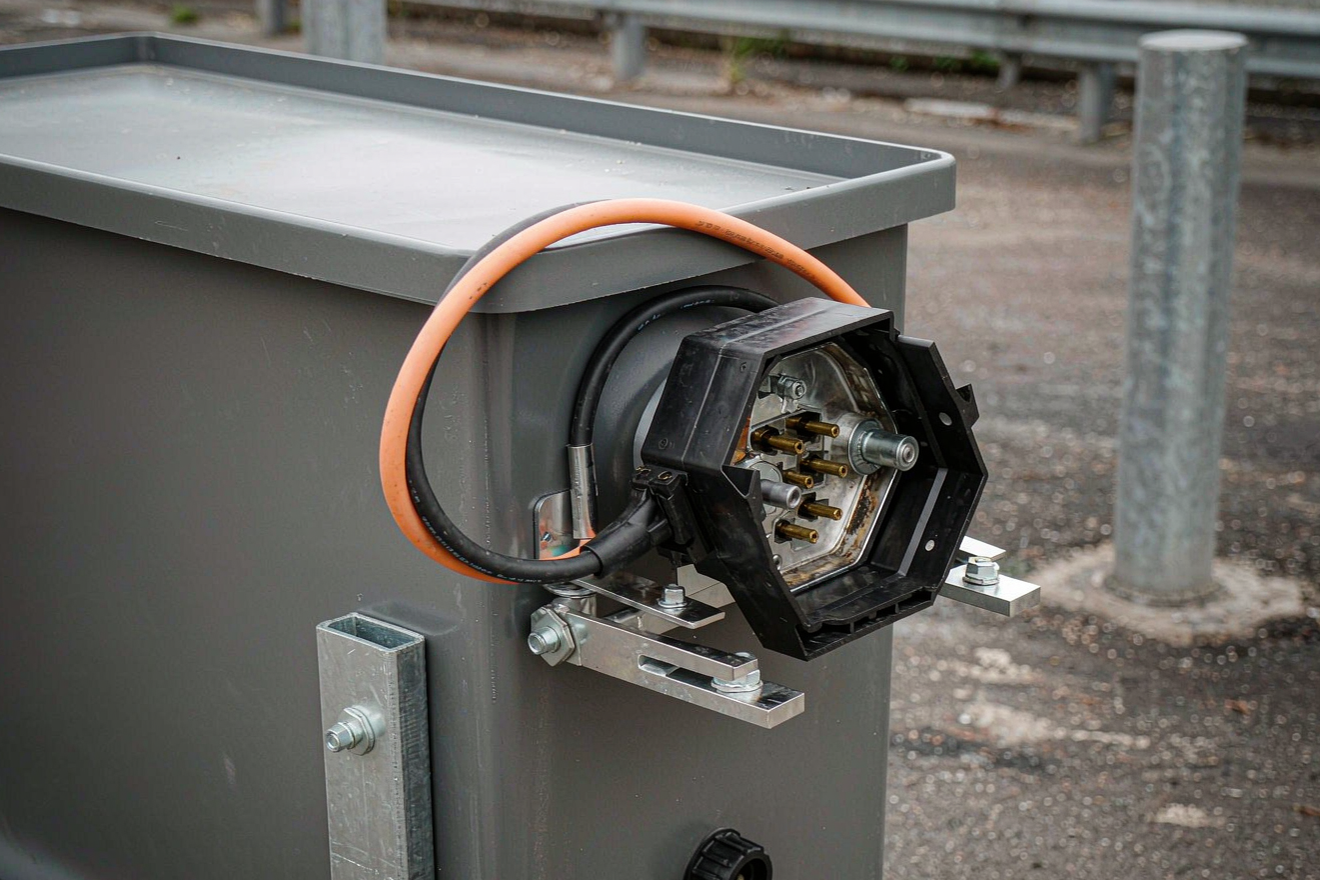

Battery Solution for Port Ground Support Equipment
Container terminals are diesel’s last stronghold, and that is exactly why they are now the fastest-electrifying segment in material handling. A port ground support fleet runs three shifts a day, burns fuel at a rate no highway truck can match, and sits inside a fence line where air quality rules tighten every year. I have spent the past four years sizing packs for yard equipment, and the failure mode is almost never the cell chemistry. It is a battery solution for port ground support designed around a warehouse, then asked to survive salt fog, 24-hour duty cycles, and a charging window measured in minutes. This is the specification logic I use.
Why Ports Electrify Ground Support First
A marine terminal is not one fleet but six or seven, each with a different load signature, and they electrify in a predictable order.
- Terminal tractors and yard trucks move first: fixed lanes, constant idling, and repeatable energy per move make them easy to size.
- Empty container handlers come next: light loads, short lifts, and a depot already wired for reefer plugs.
- Reach stackers are the hard case: a 45 tonne lift with simultaneous hoist and travel creates the yard’s highest power peaks.
- Straddle carriers and rubber-tyred gantries split into cable-reel, hybrid, and full electric variants depending on how much of the yard follows a fixed route.
- AGV and AMR fleets were electric from day one and set the charging precedent the rest of the fleet copies.
- Small forklifts, utility trucks, and workshop vehicles are opportunistic: they rarely justify a charger, but they fit onto one once it exists.
Three criteria decide the order: how regular the duty cycle is, how many hours the machine idles, and whether the depot has a charger where the machine already parks. A machine that never leaves a fixed 600 metre corridor is a battery solution waiting to happen. One that roams 40 hectares on unpredictable dispatch is a far harder economic argument.
Duty Cycles at a Port Break the Warehouse Playbook
First-generation electrification projects underperform because they were sized from warehouse data. A distribution centre lift truck works 2,000 to 4,000 hours a year. A terminal tractor on a three-shift port works 6,000 to 8,000. That is not a difference of degree but of kind.
Start with the load. An empty 20 foot container runs 2.2 to 3.8 tonnes, a laden box reaches 30.48 tonnes, and a forty foot box goes higher. A tractor pulling a bomb cart therefore moves 60 to 70 tonnes of gross combination weight for much of its shift, then returns empty over the same route. Our measured laden-leg ratio is about 40 percent, and I use it below.
Then look at the surface. Rolling resistance on slabbed, rutted terminal pavement runs 0.012 to 0.018, against 0.008 to 0.012 on a smooth warehouse floor. Coastal wind of 5 to 8 metres per second acting on a flat-faced container costs another 3 to 7 percent of tractive energy. Together they move energy per kilometre by roughly a fifth.
The final difference is time. A terminal tractor makes 60 to 120 moves per shift with 200 to 400 stop-start events. Each one recovers braking energy, which is why regen matters more here than in most industrial duty. Each one is also a thermal event, and the pack must absorb that energy at a state of charge where it remains safe.
At a port you design in energy per hour, not per kilometre. Kilometres are an output of the dispatch pattern; hours are what you can forecast and charge against.
Sizing Energy and Power From Move Counts
I use a four-number method: energy per shift, peak power, regen acceptance, and duty ratio.
Energy per shift
Take a terminal tractor on a 150 kilometre shift. A laden leg costs about 2.6 kWh per kilometre at 65 tonnes gross combination weight; an empty return costs about 1.3. With 40 percent of kilometres laden, the blended figure is 1.82 kWh per kilometre, or 273 kWh of traction energy. Add 40 kWh for air conditioning and hydraulics and the shift demand is roughly 313 kWh at the wheel.
Convert that into a specification. Divide by 0.88 for driveline and converter losses and you need about 355 kWh from the pack. If the pack must still deliver full performance at end of life, you do not buy 355 kWh; you buy 355 divided by 0.85, or roughly 420 kWh of nameplate capacity. This is the most common costing error in tenders: buyers specify today’s energy need and are surprised when performance degrades in year five.
Peak and continuous power
A reach stacker tells the opposite story. Hoist and travel overlap, so a loaded 45 tonne lift pulls 380 to 450 kW for 6 to 12 seconds while the shift average sits at 90 to 130 kW. Accelerating a 70 tonne tractor to 20 kilometres per hour in 12 seconds needs roughly 236 kW at the wheels, or 268 kW from the pack after driveline losses.
Good news for port equipment: a 420 kWh pack delivering 270 kW runs at 0.64 C versus a drone battery at 5 C, which is why lithium iron phosphate dominates yard fleets. The trap is not the peak but the thermal continuous rating. If a duty cycle spends 20 percent of its time at 250 kW, the root-mean-square load is around 120 kW, and a pack rated 100 kW continuous will derate within an hour. Specify both numbers with the time base for the peak.
Voltage platforms have settled too. Most yard equipment runs a 650 to 800 volt DC bus with 400 to 600 amps continuous, which keeps cable mass and connector heating manageable.
Charging Architecture: Opportunity, Swap, and Shore Power
The charging window decides the whole architecture, and it is tighter than people expect: in three-shift operation a tractor has a genuine idle window of 15 to 25 minutes at shift change. If a shift consumes 310 kWh and you only have 20 minutes, you cannot charge your way out: 310 kWh in one third of an hour implies a 930 kW connection, which no terminal has and no machine can accept.
So the practical answer is always a combination.
- Opportunity charging at 150 to 350 kW. Ten minutes at 300 kW returns 50 kWh. Three of those across a shift recover most of the deficit without unclipping the trailer.
- Battery swapping in 5 to 8 minutes. A swap returns the machine faster than any cable, but three-shift operation needs a pack pool of 1.3 to 1.5 times the fleet count, and the swap station is infrastructure with its own reliability record.
- Overnight depot charging. Every kilowatt-hour pushed in at night is one that does not stress the pack thermally at midday.
Two details decide whether the design works. First, connector thermal derating. A 300 amp liquid-cooled cable rated at 25 degrees Celsius is not a 300 amp cable at 40 degrees Celsius deck temperature, and terminals in the Gulf or South East Asia sit at that ambient for months. De-rate to about 250 amps. Second, site demand: twenty machines drawing 150 kW each is 3 MW, which collides with the terminal’s supply agreement. Staggered schedules, and where the site allows a buffer battery on the DC side, keep the connection fee sane.
One clarification, because it appears in every tender. Ship shore power under IEC and IEEE 80005-1 covers high voltage connection for vessels at berth, typically 6.6 or 11 kV. Yard equipment charging is low voltage DC and belongs to different standards. Do not let a tender clause blur the two.
Salt Fog, Humidity, and the Corrosion Budget
This is where warehouse-grade hardware dies at a port, faster than most people believe. Coastal chloride exposure puts a terminal in ISO 12944 corrosivity category C5-M. Expect a zinc-rich primer, an epoxy intermediate coat, and a polyurethane topcoat for a dry film thickness of 240 to 320 micrometres, applied to every steel face that sees spray, including the mounting frame.
Material selection follows. Use 316L stainless fasteners, because 304 pits in chloride service within a season. Specify tinned or nickel-plated busbars, since bare copper sulphides where resistance matters most. Choose EPDM or silicone seals over nitrile, which hardens and takes a set. Aluminium housings need isolation washers against steel, or the coupling becomes a galvanic cell and the aluminium becomes the anode.
Two details separate a design that passes a test from one that survives a decade. First, the pressure relief vent: a plain vent path will eventually be blocked by crystallising salt, so use an expanded PTFE membrane vent sized for 5 to 10 litres per minute and mount it where water cannot pool. Second, condensation. A 15 kelvin diurnal swing at 85 percent relative humidity pulls moisture through every breathing path, so either seal the enclosure or fit a 60 to 150 watt heater with a humidity sensor under BMS control.
A word on ingress protection, routinely misread. IP66 and IP67 describe static water protection; IP69K describes resistance to high pressure hot water washdown. None of them describe corrosion resistance. An enclosure can pass IP69K in a clean test house and rust through in eighteen months on a quay. Test to ISO 9227 neutral salt spray for 720 to 1,000 hours, or the cyclic regime in IEC 60068-2-52, and demand a report from an accredited laboratory.
Safety, Standards, and Terminal Sign-Off
Port projects involve a landlord authority, an operator, an insurer, and often a labour inspectorate. The document pack matters as much as the hardware.
- UN 38.3 transport test summary, plus the safety data sheet for the cells.
- IEC 62619 for industrial battery safety, and IEC 63056 where the pack behaves as a stationary energy store inside the machine.
- UL 1973 and UL 2580 where the project has a North American buyer or insurer.
- IEC 62485-2 and 62485-3 for installation and operation, the document the terminal safety officer will actually read.
- IEC 60529 ingress protection test reports, and ISO 12944 coating documentation for the C5-M class.
- IEC 60068-2-27 shock at 30 g for 6 milliseconds and ISO 16750-3 vibration, since pavement joints and container corner contact are real shock sources.
One requirement still appears in older tender templates and should not. IEC 62133 covers portable sealed cells, not a 400 kWh traction pack, and asking for it signals that the specification was copied. You want IEC 62619 plus the propagation test for your jurisdiction.
On fire, the two questions a port authority asks are separation and drainage. NFPA 855 gives the clearance logic for stationary storage, propagation testing shows whether a single cell failure stays contained, and electrolyte containment tells the terminal what happens to washdown water. For charging installations, IEC 60364-7-722 governs circuit design and the residual current device must be type B, since a DC fault current will not trip a type A device. Remote telemetry should meet IEC 62443-4-2 if the operator intends to expose state of charge to a terminal management system.
Procurement Lines That Decide the Outcome
Economics are straightforward once the duty cycle is honest. A diesel terminal tractor burns 12 to 18 litres per hour, so an eight-hour shift consumes 96 to 144 litres. At 1.00 to 1.40 US dollars per litre that is 96 to 200 dollars per shift in fuel alone, before oil, filters, aftertreatment, and their downtime. The same shift on electricity at 310 kWh and 0.10 to 0.20 dollars per kilowatt-hour costs 31 to 62 dollars, plus the demand charge.
Battery life is where the arithmetic gets interesting. Lithium iron phosphate cells in this duty reach 4,000 to 6,000 cycles at 70 to 80 percent depth of discharge. Two shifts a day, 300 days a year, is roughly 700 cycles annually, which puts pack replacement at six to nine years, close enough to the machine’s economic life that residual value belongs in the model rather than after it.
When I write a specification, these are the lines I insist on, because each is a place where a weak pack can look attractive on price:
- Usable kilowatt-hours at 40 degrees Celsius, at end of life, at the stated continuous power. Not nameplate.
- Continuous power and 30 second peak power, each with the ambient temperature they are rated at.
- Ingress protection class plus a salt spray hour count and a coating class.
- Cycle life at a stated depth of discharge and temperature, not a single headline number.
- BMS telemetry protocol, CAN with J1939, Modbus TCP, or another, and state of charge and health accurate to within three percent.
- A throughput warranty measured in megawatt-hours delivered, because a calendar warranty on a machine that runs 7,000 hours a year is close to meaningless.
Get those six lines right and the rest is ordinary engineering. Get them wrong and the terminal will run diesel generators to charge electric trucks, a mistake this industry has already made once.
Frequently Asked Questions
How many kWh does an electric port tractor need per shift?
Around 300 to 360 kWh per 150 kilometre shift at a 40 percent laden ratio, plus auxiliaries. Size nameplate 15 to 18 percent above that so end-of-life performance holds, and add 10 percent for heavy wind or rough asphalt.
Why is IEC 62133 the wrong standard for port equipment batteries?
IEC 62133 covers portable sealed cells, a completely different risk profile from a 400 kWh traction pack. For industrial equipment use IEC 62619 for safety, IEC 62485-2 and 62485-3 for installation and operation, and UN 38.3 for transport.
Can a standard IP67 enclosure survive a marine terminal?
Not on its own. IP67 covers temporary immersion, not chloride corrosion. An IP67 enclosure with uncoated steel fasteners and bare copper busbars fails at the joints long before water ingress becomes the problem. You need IP66 or IP67 plus an ISO 12944 C5-M coating and 720 hours of salt spray testing.
What is the difference between opportunity charging and battery swapping?
Opportunity charging uses short natural idle windows, typically 10 minutes at 150 to 350 kW. Swapping replaces the pack in 5 to 8 minutes, but needs a pack pool of 1.3 to 1.5 times the fleet count and a dedicated station. Most three-shift terminals use both.
How do I specify a battery for C5-M corrosion class?
Specify a coating system of 240 to 320 micrometres dry film thickness, 316L stainless fasteners, tinned busbars, EPDM or silicone seals, and an expanded PTFE membrane vent. Then require the ISO 12944 documentation and the ISO 9227 report from an accredited laboratory as deliverables, not claims.
How does the total cost of a port battery solution compare with diesel?
Per shift, energy cost drops 60 to 75 percent and maintenance cost per operating hour falls by more than half, since there is no oil, filter, or aftertreatment service. Against that, place the capital cost of pack and charging infrastructure, plus the replacement in year six to nine. On a three-shift terminal, fuel and maintenance savings normally recover the pack within the first ownership period.
