Lithium Battery Certificate of Conformance and Documents
By the time a pack leaves my factory floor, the cells have already survived abuse testing, formation cycling and several capacity runs. What the customer actually receives on paper is a thin stack: a certificate of conformance, a test report, a safety data sheet and a label carrying a serial number I can trace back to the weld lot that made it. In fifteen years of supplying custom battery builds I have rejected more shipments on documentation than on electrical failure. This article is the checklist I give our own production leads. It is written for procurement and engineering teams who need to know exactly what a lithium battery certificate of conformance should contain before they sign off on an order.
What the Certificate of Conformance Actually Covers
A certificate of conformance is a statement about one serialized unit. It says that the pack with this serial number was built to a defined design and that the measured values fell inside the acceptance limits agreed in the order. It is not a performance promise and it is not a type approval. If you need those, you look for the type test report and the warranty certificate instead.
In practice the document has to record the cell chemistry, the rated capacity in ampere hours, the nominal voltage, the continuous and peak discharge current, the charge voltage and cut-off current, the operating and storage temperature window, the applicable standards, the measured values taken at dispatch, the serial number and ship date, and the name of the person who signed it. Anything less than that and you cannot use the document to settle a dispute six months later.
The part buyers get wrong is scope. A pack level certificate of conformance does not say the cells inside passed UN38.3 on their own. That sits in the cell level test report. Both must exist, and the serial numbers must link.
The Document Set That Ships With Every Pack
Our standard shipment package has settled into seven items. If a supplier cannot produce all seven without being asked twice, treat that as a quality signal.
Identity records
The certificate of conformance itself, matched one to one with a serial number; the cell lot number and cell production date; the pack build lot; and a barcode or QR code that resolves to a record containing the cell vendor, the cell date code, the weld lot, the test station and the operator ID.
Test reports
A per pack formation and capacity report showing measured capacity, direct current resistance, idle voltage and weight; a cell level summary of tests issued under UN38.3; and type test reports for the applicable standard, which for small cylindrical and pouch packs means IEC 62133-2, for industrial and large format modules IEC 62619, and for stationary or motive installations UL 1973 with UL 9540A where the system is installed.
Transport paperwork
The shipment declaration classifying the goods as UN 3480 when cells ship alone or UN 3481 when they are packed with equipment, the air transport packing instruction reference, IATA PI 965 to PI 967 for air freight, the IMDG declaration for sea freight, and the state of charge at packing.
Safety and chemical data
A safety data sheet for the electrolyte, still called an MSDS in a lot of older purchase orders, plus the transport hazard label and the lithium content in grams per package where a carrier asks for it.
Compliance declarations
A declaration of conformity covering the CE and UKCA marks where the destination market requires them, a RoHS statement, a REACH statement and, for packs with a radio or a wireless telemeter in the battery management system, the FCC or equivalent identifier.
Warranty certificate
The retention figure, normally 80 percent of nameplate capacity, the cycle or year window, the proration schedule and the measurement method that will be used if a claim is made.
Cell Production Date Codes and Age at Shipment
The single most useful number on a battery document is the cell production date. We stamp our cells with a two digit year and ISO week, so 2642 means the forty second week of 2026. A pack built the following January reads 2702.
Our rule is that cell age at shipment must be three months or less, with a hard ceiling of six months. Beyond that the electrode has sat under warehouse humidity, the anode carries a stalled formation film and the capacity report no longer reflects the cell you ship. Older inventory is re-formed and re-capped before release. A supplier who cannot quote a date code has not given you a traceable product.
Storage matters as much. We hold finished stock at 30 to 50 percent state of charge, 15 to 25 degrees Celsius and below 60 percent relative humidity. In that window a lithium iron phosphate cell loses roughly 1 percent of charge per month, while a nickel manganese cobalt cell held near full charge can lose 2 to 3 percent per month and drift enough to need rebalancing.
Reading the Numbers on the Test Report
Here is what we measure, and the limits we hold ourselves to. These are typical values for a prismatic pack in the 12 volt to 51 volt range.
Capacity
Measured at 0.5C, in a chamber held at 25 degrees Celsius plus or minus 2, after a 30 minute rest, charged to 3.65 volts for lithium iron phosphate or 4.20 volts for nickel manganese cobalt and discharged to 2.50 or 2.75 volts respectively. The report shows the measured figure, not the nameplate. We release at 99 to 101 percent and we hold within pack spread of plus or minus 2 percent against nameplate, with lot to lot spread not exceeding 3 percent between production weeks.
Direct current resistance and cell matching
Taken 30 minutes after load, at 40 percent state of charge. Typical is 1.0 to 2.5 milliohms with a spread inside a pack of no more than 5 percent, and cells selected for a series string matched to within 20 millivolts at rest. First coulombic efficiency shows up in the same report: 82 to 92 percent for nickel manganese cobalt, 96 to 99 percent for lithium iron phosphate.
Insulation resistance

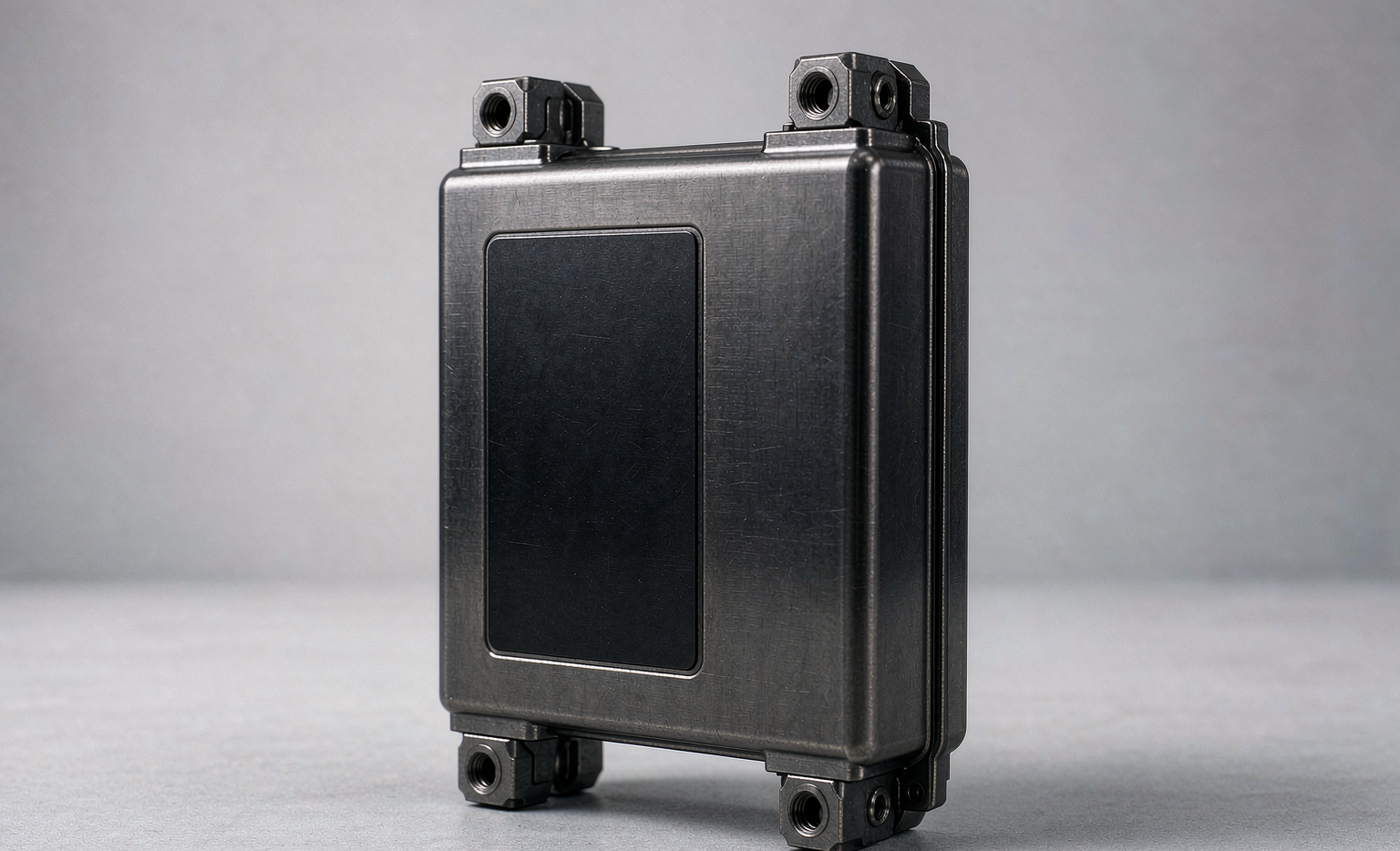

Measured with 500 volts direct current between the output terminals and the enclosure after one minute, and we require 100 megaohms or better on a sealed aluminium housing. Packs that fail this after a humid transit are usually a seal problem rather than a cell problem.
Reference environment
Any test result without the chamber temperature and the rest time printed next to it is marketing. Damp heat reference conditions in our qualification protocol follow IEC 60068-2-78 at 40 degrees Celsius and 93 percent relative humidity for 21 days, and the pack is inspected for open circuit, leakage and capacity loss afterwards.
How We Run the Pre-Dispatch Document Check
Six checks, in order, by two people. First, the pack serial matches the serial on the certificate and on the database row. Second, the cell date code is inside three months. Third, the measured capacity is inside the window. Fourth, the resistance spread is inside 5 percent and the resting voltages inside 20 millivolts. Fifth, the physical pack shows no bulge, the weld pull samples are documented, barcodes are legible and the polarization label carries the charge limit and the warning text. Sixth, the whole document set is filed with photographs of the nameplate and the test report before the pallet leaves.
Any one failure stops the pallet. In a good month that happens once or twice, and both times it was a duplicated certificate from a previous order rather than an electrical measurement.
Where Paperwork Goes Wrong
From the other side of the table, the failures I see in incoming goods are consistent enough to list. A certificate of conformance copied from a sibling product with the wrong charge voltage. A date code written as day, month and year so nobody can tell whether the cell is from March or September. A type test report that predates a cell format change and no longer describes the part. A signature applied before the capacity run finished. A safety data sheet in a single language for a market that requires the local one. Two packs sharing a serial because a rework step re-entered the build record. And the classic, a shipment declared at 80 percent state of charge when the pack was closed at full charge, which turns into a carrier refusal.
None of these are hard engineering problems. They are administrative, and cheap to prevent if the document set is written once per design and checked per unit.
How long is a lithium battery certificate of conformance valid?
The document stays valid as long as the design behind it does. The type test report normally remains current for three years or until the cell model, chemistry or format changes, whichever comes first. Ask for the reissue date on the test report, not the date on the conformance sheet.
Does a certificate of conformance prove the age of the cells?
No. It links one serial number to one build record. Cell age comes from the production date code on the cell and from the cell lot recorded against that serial. Always request both.
Should a lithium pack ship fully charged?
It should not. Transport rules for lithium cells and batteries require a low state of charge, 30 percent or less for air and sea freight under UN38.3, which also lengthens shelf life. A pack that arrives at 95 percent has either been shipped under a waiver or has been sitting on a charger.
What capacity number should appear on the report?
The measured capacity, taken at 0.5C and 25 degrees Celsius, not the nameplate figure. A healthy pack reads 99 to 101 percent of nameplate on that basis. Anything over 105 percent usually means the report was taken at a higher current or a warmer temperature than the label suggests.
Is an MSDS the same as a safety data sheet?
Yes. MSDS is the older name for the safety data sheet required under GHS. A current document should carry the revision number and date, the electrolyte composition, the handling and storage advice and the transport classification.
Can the document set be supplied in more than one language?
Most factories can issue bilingual or trilingual sets. The safety data sheet is the document that most often needs the local language at the point of use, and the polarization warning label must be readable in the destination market.
