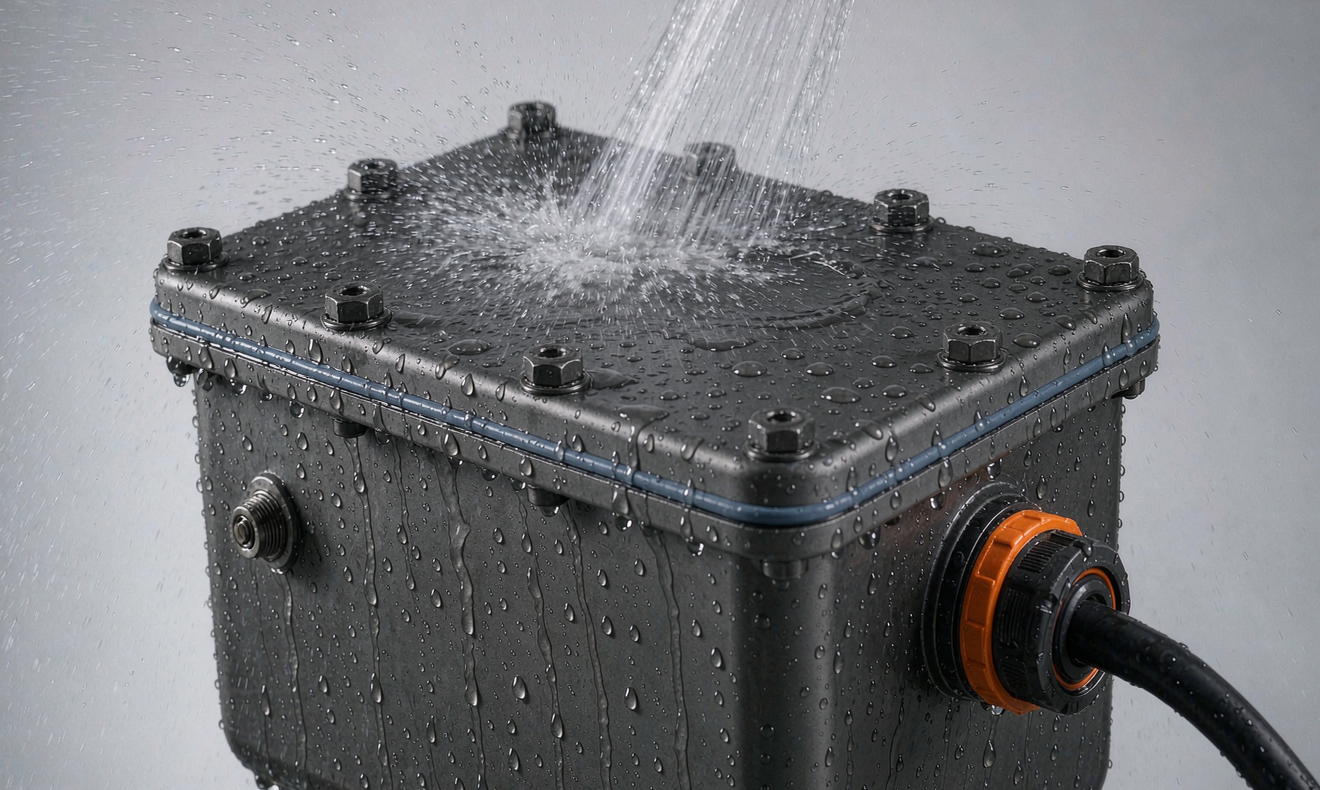

Lithium Battery Enclosure IP Rating Selection
“IP rating” is the line item added to a lithium battery enquiry last, and it is the one that comes back to bite. In fourteen years of pack programmes I have watched an IP67 claim turn into a warranty dispute because the customer pressure-washed a gasket-sealed pack that never carried a jet rating, and I have watched a pack specified for 100 A continuous come back from a 48 degrees Celsius rooftop site running at 78 A, because sealing the enclosure removed the convection its thermal design assumed.
What follows is how I choose an IP rating for a lithium battery enclosure and prove it in production: the water and dust conditions on site, the cost ladder for each step up, the thermal and breathing consequences, and the wording I put in a purchase order so the rating arrives as evidence rather than a drawing note.
What an IP Code Actually Certifies on a Lithium Battery Enclosure
IEC 60529 defines the code, and it is worth reading clause by clause before it becomes a marketing line. The two digits describe two different tests, and the second is where most confusion lives.
First digit: solid particles
Level 5 protects against dust in an amount that must not interfere with operation. Level 6 is dust-tight, tested with talc at roughly 2 kg per cubic metre for eight hours under a partial vacuum between 0.4 and 2 kPa. Level 6 costs real money because it demands a full perimeter seal rather than a baffle.
Second digit: water
Level 4 is splashing from any direction for ten minutes. Level 5 is a 6.3 mm nozzle at 12.5 litres per minute from three metres. Level 6 is a 12.5 mm nozzle at 100 litres per minute and 100 kPa from three metres. Level 7 is immersion for thirty minutes with the lowest accessible point 1 m below the surface and the highest 150 mm above. Level 8 is continuous immersion at a depth and duration agreed between manufacturer and user, so the rating is empty until both numbers are written down. Level 9K adds an 80 degrees Celsius steam jet at 80 to 100 bar.
What the test does not tell you
It is a type test on new, production-intent samples in fresh water at room temperature, not a guarantee for every unit off the line. The digits are not cumulative: IP67 says nothing about jets, and IPX6 says nothing about immersion. A pack that sees washdown and pooling water needs both claims stated separately, for example “IP66 and IP67”. NEMA 250 folds in corrosion, icing and hose-directed water, so a NEMA 4X label is not a drop-in replacement for an IP code.
Match the Code to the Site, Not to the Datasheet
I ask four questions about the environment before I open a sealing drawing, because each one rules out a different cheap answer.
What kind of water, and how fast?
Rain and condensation are covered by IPX4 at most. A pressure washer needs IPX6 or IPX9K, and a 4 000 psi unit held 300 mm from the lid will defeat a thirty-minute immersion rating. Pooling or flooding needs IP68 with the depth written in, and I add a 1.5 factor because silt, ice and wave action add pressure.
Is the dust inert or conductive?
Cement and grain dust is inert and mostly a nuisance. Carbon black, graphite and metal grinding dust are conductive and bridge creepage distances across a terminal block. Those sites get IP6X plus an internal conformal coating, not one or the other.
Salt, UV and altitude
Within 20 km of a coast I specify ISO 9227 neutral salt spray at 480 hours minimum on plated hardware and coating. Outdoor polymer housings need UV stabilisation for ten years of exposure. Above 2 000 m, or where a pack travels as cargo in a partially pressurised hold, the differential reverses twice per flight and pulls moisture in through whatever path the gasket misses.
The failure mode people forget: daily breathing
On a site that swings from 40 degrees Celsius by day to 10 at night, a nominally sealed enclosure pumps air through its own gasket every cycle. Most of the water damage I inspect comes from that, not from rain. It is why I treat a vent membrane as a reliability part rather than an accessory.
The Sealing Cost Ladder: What Each Step Up Really Costs
Sealing is a ladder, and every rung is paid for in money, weight or serviceability. These are the bands I see in quotations for enclosures in the 2 to 20 kWh class.
IP54 to IP65: gasket discipline
A labyrinth plus a die-cut silicone gasket adds roughly 8 to 15 US dollars per pack in gasket, fasteners and flange machining. The physics is compression: 25 to 35 percent of gasket thickness, held by 40 to 60 mm screw pitch, a flange flatness of about 0.3 mm across the seal line, and a groove depth matched to gasket durometer. Leaving out the flatness call-out is the most common sealing defect I find on cast aluminium lids.
IP67 and IP69K: joining and hardware
Welded lids, high-temperature gaskets and stainless hardware take sealing content into the 30 to 70 US dollar range, and a pressure-equalising vent adds 4 to 12 dollars. Potting can reach 45 to 120 dollars and removes serviceability entirely, which on a custom battery solution trades a small reliability gain for a much larger repair bill. The connector is often the real weak point: a bulkhead gland rated IP68 or IP69K costs 25 to 60 dollars against 6 to 20 dollars for an IP65 gland.
The hidden multiplier
Sealing content as a share of pack bill of materials climbs from 3 to 6 percent at IP54 to 12 to 20 percent at IP67 and above. The larger figure is not the sealing hardware. It is the cell oversizing forced by the thermal penalty below, where a 15 percent derating becomes 15 percent more cells, more weight and a bigger enclosure.
The Thermal Penalty of a Sealed Enclosure
This is the part that never reaches the datasheet and always reaches the field report. A vented enclosure sheds heat by convection. Seal it, and what remains is conduction through mounts and walls, plus radiation off a hot case.
Take a 48 V, 100 Ah LFP lithium battery pack with about 8 milliohms of pack-level DC resistance. At 100 A continuous it makes roughly 80 W of heat. In a vented steel enclosure at 45 degrees Celsius ambient I expect a steady internal rise of 12 to 15 degrees Celsius; in a sealed, outside-mounted aluminium enclosure, 25 to 30 degrees Celsius, which puts cells at 70 to 75 degrees Celsius. That is outside the comfortable window for cycle life, and the BMS folds back current long before the customer expects it.
Three fixes work, in this order. First, move heat by conduction: 2 mm thermal pads at 1.5 to 3 W per metre-kelvin between cell faces and a 3 to 4 mm aluminium wall beat potting compound at 0.2 to 0.6 W per metre-kelvin, which insulates as much as it conducts. Second, make less heat: lower-resistance cells or a higher pack voltage, so current falls for the same power. Third, derate honestly: publish a continuous current 15 to 30 percent below the vented figure, with the ambient it applies to.
Sun load belongs in the calculation. A dark enclosure under 900 W per square metre of irradiance sits 25 to 40 degrees Celsius above air temperature on a still day, and shade or a lighter finish is cheaper than extra cells. On a portable pack the penalty is worse than money, because oversizing costs range. That is why weight-limited lithium battery packs are usually specified as IP67 with a vent and a deliberate conduction path, rather than IP68 with no thermal exit.
Breathing, Condensation, and the Vent Decision
A perfectly sealed enclosure is a pressure vessel. Heat a fixed volume of air from 20 to 60 degrees Celsius and the pressure rises about 13.6 percent, close to 14 kPa. A flat gasket rated to hold a few centimetres of water column, roughly 0.3 kPa, cannot contain that. The result is not a clean seal but an uncontrolled leak that opens under pressure, carries moisture in, and closes again.
So I vent deliberately. An expanded PTFE membrane vent passes 0.5 to 1.5 litres per minute at 7 kPa, carries IP67 or IP68 in its own right, blocks liquid water and dust, and still lets the enclosure equalise. I allow one vent per 5 litres of internal free air, at the highest point where gas collects during a thermal event, with a membrane drain at the low point where condensate pools.
Membranes do not stop vapour. Over years, vapour diffuses inward and condenses on cold nights. For long-life outdoor units I add desiccant at 5 to 10 g per litre of free air sized for a five-year interval, with the service task in the manual, or a dry-air fill to a controlled dew point.
The failure modes I see most are mechanical rather than chemical. A membrane clogged by oil mist or fine dust turns the vent into a plug, and the gasket becomes the pressure relief valve. Over-torqued flange screws compress the gasket past 50 percent and take a permanent set, so the second assembly leaks where the first did not. Reused gaskets account for a meaningful share of the leaks I diagnose, and a silicone seal wiped with a petroleum-based lubricant swells and loses compression. Material choice belongs in the specification: silicone for a wide temperature range, EPDM for water and UV, FKM where chemicals are present.
Specifying and Verifying the Rating in a Purchase Order
An IP rating on a drawing is an intention. An IP rating in a purchase order is a test, a sample size and a document. I write it in four lines.
Line one: the requirement
“Ingress protection: IP66 and IP67 to IEC 60529, tested on production-intent samples. If IP68 is required: 1.5 m depth for 24 hours. Ambient water temperature 5 to 35 degrees Celsius. Washdown chemistry pH 2 to 12. Impact resistance IK08 to IEC 62262. Salt spray 480 hours to ISO 9227. Coating and polymer parts UV stabilised for ten years.”
Line two: the evidence
Type test reports from an ISO/IEC 17025 accredited laboratory, not in-house photographs. Dust reports must state talc concentration, duration and vacuum level; immersion reports, depth, duration and water temperature, with before and after images of the same unit. I ask for five thermal cycles between minus 20 and plus 60 degrees Celsius before the water test, because preconditioning is what exposes gasket extrusion and welded seam failures.
Line three: production control
Ingress protection is only as good as the thousandth unit. I specify 100 percent leak testing on welded assemblies by pressure decay: charge at 3 kPa and reject anything decaying more than 50 Pa in 10 seconds. Where a hermetic weld is used, helium leak testing at 1 by 10 to the minus 6 mbar litres per second is tighter. For gasketed assemblies I set an AQL of 0.65 on a sampled water test and ask for gasket batch traceability with compression set to ASTM D395 or ISO 815, under 25 percent after 22 hours at 70 degrees Celsius, hardness 40 to 60 Shore A.
Line four: audit and warranty
Quarterly, or one pack per thousand, I tear down a unit and record flange flatness, screw torque and gasket compression set. Most warranties exclude ingress damage, so I trade the audit clause for accepting that exclusion, and keep a reference sample of the first approved build.
Written that way, the IP rating stops being a marketing claim and becomes something a supplier can be measured against. What arrives is a decision about water, heat and maintenance the site can live with.
Frequently Asked Questions
Is IP67 enough for a lithium battery used outdoors?
Yes for rain, spray and short-term immersion, no for regular pressure washing. IP67 covers thirty minutes at 1 m of still fresh water. It does not cover a jet, so a washdown bay needs IP66 or IP69K stated as well. Nor does it cover the daily breathing cycle of an enclosure swinging 30 degrees Celsius between day and night, which is why outdoor units usually need a membrane vent regardless of the digit.
Do I need IP68 for a flood-prone site, or is IP67 sufficient?
IP67 is not sufficient where water can stand above the pack for hours. IP68 has no fixed depth or duration, so demand both in the specification, for example 1.5 m for 24 hours, and apply a safety factor because silt, ice and wave action raise the real pressure. Submerged installations also need the connector, vent and cable gland at the same level, since the housing is rarely the leak path.
Does a higher IP rating shorten battery service life?
It can, through heat. Sealing removes convection, which on the pack above means a steady internal rise of 25 to 30 degrees Celsius instead of 12 to 15. Unless the derating is published and applied, cells run 10 to 15 degrees Celsius hotter than intended, and every 10 degrees Celsius of extra cell temperature roughly halves calendar life. A sealed pack is fine if the conduction path and derated current are designed with it.
Can I add a vent membrane to an IP67 pack without losing the rating?
Yes, if the vent carries its own IP67 or IP68 rating and is installed to the manufacturer’s torque and sealing procedure. A rated vent is tested as part of the enclosure, so it preserves the claim. An ordinary drilled hole, a plain gore patch or an unrated breather plug does the opposite, because it becomes the lowest-resistance path for water under pressure.
How often should enclosure gaskets be replaced?
With silicone or EPDM at moderate temperature, five years is a reasonable starting point, and compression set data should be checked at each service. Replace sooner on any enclosure opened more than twice, on units running above 60 degrees Celsius, or where a petroleum-based lubricant was used. My rule is simple: a gasket that has taken a set, hardened or swollen is replaced, not re-fitted.
What is the difference between an IP rating and a NEMA rating?
They come from different standards and do not map one to one. IEC 60529 tests dust and water only. NEMA 250 adds corrosion resistance, icing, gasket ageing and, for some types, hose-directed water, so a NEMA 4X enclosure often passes IP66-level water testing plus a salt and corrosion programme. When a drawing cites NEMA, I convert to the specific IP tests I will run and confirm both parties agree.
