Sodium-Ion Battery Presodiation and Sodium Compensation

Sodium-ion cells lose a measurable slice of their sodium inventory during the very first charge. On the production line that loss shows up as a first-cycle efficiency of 80 to 88 percent on a plain hard carbon anode, and it never comes back. For a sodium-ion battery pack that has to survive ten years of daily cycling, that deficit is paid for with oversized anodes and a heavier module. Presodiation and sodium compensation are the two production routes that put that sodium back before the customer sees the cell. This guide covers how each method works and what it takes to qualify it.

Why the First Cycle Eats Sodium

A hard carbon anode stores sodium in three places: defect sites, the interlayer spacing between graphene-like sheets, and closed pores inside the particle. Only the last two are fully reversible. The first charge also builds a solid electrolyte interphase on the carbon surface, and every molecule of electrolyte that decomposes there consumes sodium that was meant to stay in the cell.

Where the sodium actually goes

On a well-made hard carbon with a specific surface area of 3 to 5 square meters per gram, reversible capacity lands between 280 and 320 mAh per gram, while the irreversible part runs 20 to 50 mAh per gram. Carbon with more micropores holds more sodium but burns more of it building the interphase, so a material that looks better on a capacity datasheet can be worse at cell level. The cathode adds its own loss: layered oxide and Prussian blue analogue cathodes typically return 92 to 97 percent of the sodium they release.

The cost of doing nothing

Without compensation, the design engineer has to overbuild the anode so it never runs out of sodium-accepting sites and never plates. A negative-to-positive capacity ratio of 1.12 to 1.20 is normal on uncompensated sodium-ion cells. That excess anode is dead mass. On a 5 kWh module it means roughly 4 to 6 percent extra mass and a matching loss of usable energy per kilogram,

Presodiation Methods and Where They Fit

Presodiation means adding sodium to the cell before the customer charges it. Three families exist, and they differ far more in production risk than in electrochemistry.

Sodium foil lamination in the dry room

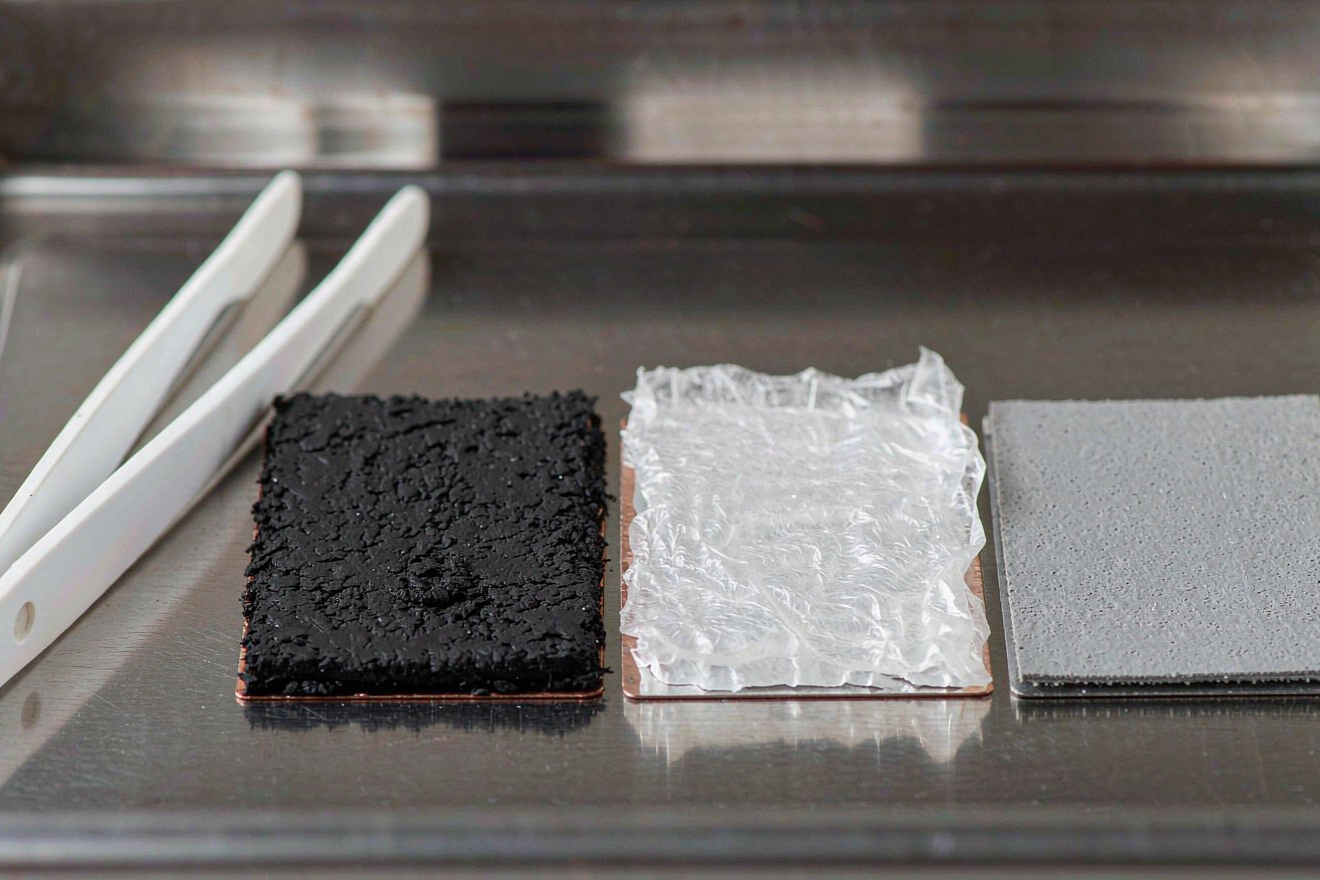

The direct route laminates a thin sodium metal foil onto the hard carbon anode during electrode or stack assembly. Once electrolyte wets the stack, the sodium dissolves into the carbon within hours, so the first customer charge no longer pays the interphase bill.

The thickness calculation is straightforward. Sodium has a density of 0.97 grams per cubic centimeter and an atomic mass of 23 grams per mole, so a 10 micrometer foil carries about 1.13 mAh per square centimeter of compensation capacity. An anode loaded at 3.2 mAh per square centimeter with a 24 percent first-cycle loss needs 0.77 mAh per square centimeter, which points to roughly 7 micrometers of foil. A lamination tolerance of plus or minus 1 micrometer already swings compensation by about 14 percent, so most lines deliberately target 80 to 90 percent of the calculated loss and let the anode absorb the difference.

Physical requirements are strict: a dry room dew point below minus 40 degrees Celsius, sealed transfer of the foil reel, tension control during lamination and an in-line thickness gauge. The stack has to be closed and filled inside a defined window, because a freshly exposed interface passivates and contact resistance climbs if the foil sits too long.

Electrochemical pre-doping

Charging an anode against sodium metal in a half cell doses the exact amount needed, but rewinding a doped anode that is now air and moisture sensitive is impractical on a commercial line.

Cathode-side compensation additives

The third family mixes a sacrificial sodium salt into the cathode slurry. On first charge the additive oxidizes before the working chemistry does, releasing extra sodium that ends up in the anode. It needs no new dry-room equipment, which is why cell makers with existing lithium lines usually start here.

Cathode Compensation Additives and Their Trade-offs

Its oxidation plateau must sit above the working cathode’s normal charge range but below the point where the electrolyte breaks down, typically between 3.6 and 4.2 volts against sodium, and it has to leave behind something harmless.

Azides, oxalates and gas-free options

Sodium azide delivers around 400 mAh per gram and releases inert nitrogen that does not swell a pouch, but azides are toxic and shock sensitive, which adds transport and environmental obligations many plants avoid. Sodium oxalate and sodium squarate sit at 250 to 300 mAh per gram and are benign solids, yet they release carbon oxides, so pouches need a formation stand and a degassing step. Sodium nickelate and sodium phosphide compensate with no gas at all, at the price of a transition metal in the cathode or a material that hydrolyses into phosphine if moisture control fails.

Dosage reality

To replace 25 mAh per gram of anode loss across a 3.2 mAh per square centimeter anode, the cathode must carry about 0.8 mAh per square centimeter of sacrificial capacity. With an azide at 400 mAh per gram and 90 percent utilization that is roughly 2.2 milligrams per square centimeter, or 8 to 10 percent of cathode mass. Lower capacity additives push the loading past 12 percent, and every percent of additive displaces working active material.

Manufacturing Integration and Real Cost

The foil route adds equipment; the additive route adds process steps.

Foil route integration

A lamination station adds foil unwinding, tension control, lamination pressure, thickness verification and edge inspection. Pilot lines typically see 1.5 to 3 percent extra scrap from foil wrinkles and thickness excursions before the process stabilizes. Sampling matters just as much: a per-shift teardown of a formed cell, checking for residual metallic sodium, is the only reliable way to confirm that the foil fully dissolved instead of sitting as dormant metal.

Material cost per cell

Sodium metal foil sells for roughly 30 to 60 US dollars per kilogram, well above bulk ingot, because rolling sodium into a 7 micrometer sheet is the expensive part. A 7 micrometer layer costs about 0.7 milligrams per square centimeter, so a large prismatic cell consumes under 4 grams of foil, a few US cents of material. The savings from shrinking anode overcapacity by 10 percent are an order of magnitude larger, which is where the economics actually close.

Cell design impact

With compensation in place the negative-to-positive ratio can move from 1.15 toward 1.03 to 1.05, worth 4 to 6 percent in cell-level energy density and a smaller module for the same usable capacity. The penalty is a thinner safety margin: with no excess anode capacity, every milliamp-hour of overcharge or low-temperature plating lands on the carbon surface.

Safety, Transport and Standards

Bringing sodium metal into a cell factory changes the plant’s risk profile, not just the cell’s.

Handling and process safety

Sodium metal reacts with water and humid air, so it is classified as water-reactive. Foil reels need sealed storage, the lamination area needs a logged dew point record, and residues cannot be handled with water-based suppression. Operators need specific training plus a response plan that assumes metal is present, not only electrolyte.

Finished cell testing

A presodiated cell still has to clear UN 38.3, including altitude simulation, thermal cycling, vibration, shock, external short circuit, impact, overcharge and forced discharge. Portable designs follow IEC 62133-2, industrial and energy storage products follow IEC 62619, and stationary installations are often assessed against UL 1973. Because compensation changes the internal sodium inventory, abuse results must be re-run on the final design rather than inherited from an uncompensated baseline.

State of charge mapping

The extra sodium shifts the open circuit voltage curve and the anode’s resting potential, so the state of charge lookup table in the battery management system has to be re-derived from fresh pulse and pseudo open circuit voltage data. Reusing a table from an uncompensated cell is an expensive mistake: the pack can report 20 percent when the anode is already near plating conditions.

Overcompensation risk

More sodium is not better. If compensation exceeds the anode’s irreversible loss, the surplus can only sit as plated metal, which grows dendrites and creates soft shorts that appear after a few hundred cycles. The safe target is 80 to 95 percent of the measured loss; the remaining anode overcapacity is the insurance.

Qualifying Presodiation: A Test Protocol

Whether the sodium comes from foil or from a cathode additive, the same sequence answers one question: did the compensation land in the anode, and does it stay there?

Formation and first-cycle efficiency

Form the cells between C/20 and C/10 at 25 degrees Celsius across the full window, recording first charge and discharge capacity separately. A compensated cell should reach 92 percent first-cycle efficiency or better, against 80 to 88 percent for the uncompensated baseline. Batch drift above 1.5 percentage points is a process signal, not noise.

Plateau and potential checks

Differential capacity analysis should show the additive’s oxidation plateau in the first charge and no trace of it in the second. A three-electrode build or half cell confirms that the anode potential stays above 0.02 volts against sodium at the top of charge, with margin before plating.

Storage, cycling and teardown

Store formed cells for seven days at 45 degrees Celsius and require thickness swell under 3 percent and open circuit voltage drift under 2 percent. Then run 500 cycles at 1C and 25 degrees Celsius to confirm that compensated cells track the baseline fade rate instead of diverging. Finish with teardown at cycle zero and cycle 500, inspecting the anode for metallic sodium and the separator for dendrite marks.

What is presodiation in a sodium-ion battery?

Presodiation is the deliberate addition of sodium to a sodium-ion cell before delivery, so the anode does not pay for first-cycle interphase losses out of the cell’s usable inventory. It is done either by laminating thin sodium metal foil onto the hard carbon anode or by dosing the cathode with a sacrificial sodium salt that oxidizes on first charge.

How much capacity does sodium compensation need to add?

It depends on the anode. A hard carbon with a 24 percent first-cycle loss at a 3.2 mAh per square centimeter loading needs about 0.77 mAh per square centimeter of compensation, roughly 7 micrometers of sodium foil or 2 to 3 milligrams per square centimeter of a sodium-rich additive. Production targets compensate only 80 to 90 percent of the measured loss.

Is presodiation with sodium metal foil safe for mass production?

It is manageable but not free. Sodium metal is water-reactive, so lamination needs a dry room below minus 40 degrees Celsius dew point, sealed foil storage and dedicated operator training. The main production risks are foil thickness variation and incomplete dissolution, both controlled with in-line gauging and per-shift teardowns of formed cells.

Which cathode additives are used for sodium compensation?

The common families are azides at around 400 mAh per gram, which release inert nitrogen, and oxalates or squarates at 250 to 300 mAh per gram, which release carbon oxides and need degassing. Sodium-rich oxides and phosphides offer gas-free compensation but add a transition metal or a moisture-sensitive material, so they suit niche designs only.

Does presodiation change UN38.3 or IEC 62133 test results?

It can. UN 38.3 and IEC 62133-2 results apply to a specific cell design, and compensation changes the internal sodium inventory, the anode’s resting potential and overdischarge behaviour. Transport and abuse tests should be re-run on the compensated design, especially overcharge and forced discharge, where the anode margin is now thinner.

Can presodiation raise sodium-ion battery energy density?

Yes, indirectly. Because the compensated cell no longer needs a large anode buffer, the negative-to-positive ratio can drop from about 1.15 to 1.03, worth roughly 4 to 6 percent in cell-level energy density and a lighter module for the same usable capacity. The gain comes from removing excess anode mass, not from the compensation material.
