Battery Solution Deployment for Robotics: From Pilot Line to Production Fleet
Introduction
When a client signs off on a robotics battery on paper, the hard part has barely begun. I am Karl Huang, Senior lithium battery Engineer at Horizon Power, and after commissioning autonomous mobile robot (AMR) and automated guided vehicle (AGV) fleets across electronics, automotive, and e-commerce warehouses, I can tell you this: a cell-level specification is not a deployment. Deployment is where the datasheet meets the factory floor — where ambient heat, vibration, charger noise, and human maintenance habits decide whether a battery solution actually delivers its promised uptime. A pack that passes the lab bench can still fail a robotics fleet in month three if the deployment engineering is weak.
Over the last eight years I have led the rollout of custom battery solution programs for more than forty robotics sites. In this article I walk through the deployment playbook my team uses — from the pre-deployment site survey, through fleet standardization and commissioning, to safety sign-off, remote health management, and second-life rotation. The goal is simple: turn a box of lithium cells into a predictable, safe, and scalable energy source for a working robot fleet.
Pre-Deployment Qualification and the Site Risk Survey
Before a single pack ships, we run a site risk survey. The robotics duty cycle on the spec sheet rarely matches the real one. I send a small pilot batch of 5–10 packs to the actual deployment environment for a 2–4 week burn-in. During that window we log the true ambient temperature envelope (many warehouses swing from 10 °C near dock doors to 45 °C above charging banks), the vibration profile on the robot’s chassis, the available charging infrastructure (voltage class, connector type, communication bus), and the network path for BMS telemetry.
That survey drives three hard decisions. First, chemistry: for most indoor AMRs we deploy LFP (LiFePO4) because its thermal-runaway onset sits near 270 °C versus roughly 180–210 °C for NMC, a margin that matters when a robot parks next to a 30 kW charger bank. Second, cell format — cylindrical 21700 for shock resilience or prismatic for energy density. Third, the lithium battery management strategy: a pilot that shows 60 °C pack-surface peaks during fast opportunity charging forces us to adopt a 0.5C charge cap and a 40 °C derate, not the 1C the catalog promised.
- Ambient envelope: record 24-hour min/max at the robot’s operating height, not the office thermostat.
- Vibration census: capture 3-axis accelerometry for one full shift; flag resonance bands above 1.2 grms.
- Charger audit: verify CC-CV taper, pre-charge resistor, and isolation resistance >1 MΩ.
- Telemetry path: confirm the BMS can push SoC, cell voltage, and temperature to the fleet cloud at 1 Hz.
Fleet Standardization and the Pack-Pool Model
The fastest way to destroy a deployment’s economics is to let every robot model carry a bespoke pack. We standardize on one custom battery solution form factor — for example a 48 V, 30 Ah module at 180 × 120 × 90 mm — and design the mechanical bay so one pack serves mapping, tow, and lift variants with only a firmware personality swap. Standardization turns batteries into a fungible pool asset.

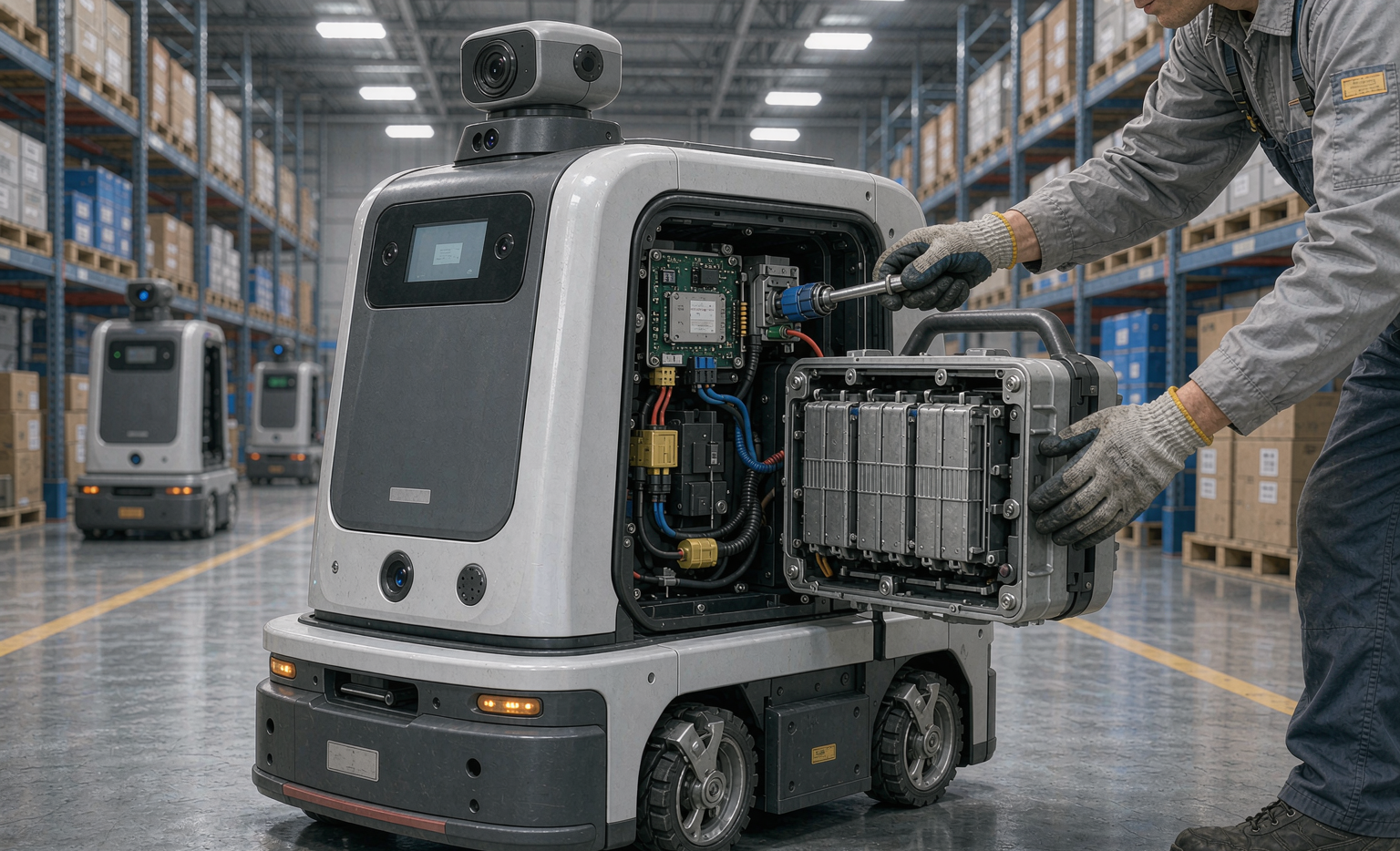

Pool sizing follows an N+1 spare rule. For a fleet of ten robots running two shifts, we provision roughly 5–6 packs per robot and rotate them FIFO through a charging depot, so a single failed pack never grounds a robot. Every pack carries a laser-etched DataMatrix code linking to its cell genealogy, weld record, and formation data. When a pack needs service, it drops out of the pool and a spare slides in — no re-engineering, no downtime.
This is also where drone battery programs and ground robotics converge: the same serialization, the same pool logic, and the same “pack as a serviceable unit” discipline apply whether the asset flies or rolls. The deployment mindset is identical; only the vibration axis changes.
Field Integration and Commissioning Sequence
Commissioning is a fixed, documented sequence — never ad hoc. I insist on a four-step first-power-up:
- Mechanical mate: seat the pack, confirm IP54–IP67 seal compression, and verify latch retention against MIL-STD-810H 514.8 vibration (1.2 grms) with less than 0.3 mm cell travel.
- Electrical pre-charge: close the pre-charge relay first so the input capacitors charge through a resistor; only then engage the main contactor. This prevents the arc that welds a $400 connector shut.
- BMS handshake: the pack speaks CAN 2.0B / SAE J1939 to the robot controller. We confirm cell-count, temperature-sensor count, and that the pyro-fuse isolation monitor reads >500 Ω/V.
- SoH acceptance gate: before the robot is released to production, the pack must read >98% rated capacity, internal-resistance spread <30 mV, and balanced cells (<20 mV end-of-charge deviation).
Skip any step and you inherit a silent fault that surfaces as a mid-shift shutdown three weeks later. The commissioning record is signed, uploaded, and tied to the DataMatrix genealogy.
Safety Sign-Off and Regulatory Acceptance
Robotics batteries are flight-adjacent in risk: a thermal event inside a crowded fulfillment center is a building evacuation, not a product return. Our deployment file contains the full standards dossier before go-live:
- UN38.3 T.1–T.8 — transport simulation (altitude, thermal, vibration, shock, external short, impact, overcharge).
- IEC 62133-2 — safety of secondary lithium cells and batteries for industrial use.
- IEC 62619 — safety requirements for industrial stationary and motive battery systems.
- UL 2580 — safety for batteries in electric power drive systems.
- ISO 3691-4 and ISO/TS 15066 — industrial truck and collaborative-robot safety, where the battery is part of the machine’s risk assessment.
- Local fire code / NFPA 70 (NEC) — fixed charging cabinets, ventilation, and disconnects.
We also document the transport leg: packs ship at ≤30% State of Charge under IATA Section II, because a fully charged pack on a delivery truck is a different hazard class. The acceptance package is reviewed by the site safety officer, not just the procurement manager — deployment is a safety event, not a logistics one.
Remote Monitoring, OTA, and Fleet Health Management
A deployed fleet is only as healthy as the data you collect. Every pack streams telemetry to a fleet cloud where we run predictive health management. The core metric is 4-wire Kelvin DCIR measured at rest and under a known load; we trend it per pack and trigger retirement when any of three gates trips:
- DCIR rise >30% versus the pack’s birth baseline,
- usable capacity falls below 85% of rated,
- cell-voltage spread exceeds 40 mV at end of discharge.
Over-the-air (OTA) firmware lets us refine charge algorithms across the whole pool without a physical recall — when we discovered that a particular site’s 38 °C charging corner was aging packs 12% faster, one OTA trimmed the charge-termination voltage and the fade rate dropped within a week. This is the difference between a static battery solution and a living one.
Scaling from Pilot to Fleet and Second-Life Rotation
The pilot proved the concept; the fleet is the business. We scale in staged waves — 10% of fleet, then 50%, then 100% — watching the failure histogram at each step. Depot layout matters: chargers need spacing for airflow, and a clear visual queue (green = ready, amber = balancing, red = quarantine) keeps operators from forcing a faulty pack back into service.
When a pack ages out of prime robotics duty (say below 85% capacity but still safe), we grade it into a second-life role — stationary backup at a charging cabinet, or low-cycle buffer storage — squeezing 18–30% more value before recycling. End-of-life packs return through a certified Li-ion recycler under the same genealogy record, closing the loop. A well-run deployment thus spans the full lifecycle: from the first pilot cell to the last recycled cathode.
Frequently Asked Questions
How many spare battery packs should a robotics fleet keep?
I plan an N+1 ratio of roughly 5–6 packs per robot for two-shift operations, rotated FIFO through a charging depot. The exact number depends on charge time versus duty time: if a full charge takes 90 minutes and a robot runs 6 hours per shift, you need enough spares that no robot waits on a charger. The custom battery solution form factor is standardized so any spare fits any robot.
What standards must a deployed robotics battery meet?
At minimum UN38.3 T.1–T.8 for transport, IEC 62133-2 and IEC 62619 for cell and system safety, UL 2580 for the power-drive battery, and ISO 3691-4 / ISO/TS 15066 because the battery is part of the machine’s safety case. Local electrical and fire codes (NEC / NFPA 70) govern the charging installation.
How do you commission a new battery pack onto a robot?
Follow a fixed four-step sequence: mechanical mate with verified seal and latch retention, electrical pre-charge before main contactor closure, BMS CAN/J1939 handshake confirming cell and sensor counts, and an SoH acceptance gate (>98% capacity, <30 mV spread, <20 mV balance). The signed record is tied to the pack’s DataMatrix genealogy.
Can one battery pack serve different robot models?
Yes, if the deployment is designed for it from the start. We standardize a single form-factor custom battery solution and give each robot variant only a firmware personality difference. This turns batteries into a fungible pool asset and is the same discipline we apply to drone battery programs.
What is the safe end-of-life threshold for a robotics battery?
Retire a pack when DCIR rises more than 30% above its birth baseline, usable capacity drops below 85% of rated, or cell-voltage spread exceeds 40 mV at end of discharge. At that point the pack is safe but no longer predictable for prime robotics duty, so we grade it into a second-life stationary role before recycling.
