Drone Battery Design for Inspection UAVs: Design for Manufacturing, Traceability and Field Service

I have sat through a lot of design reviews for inspection UAV power systems, and I have learned that a pack can satisfy every line of the electrical specification and still be a bad design. The voltage is right, the capacity is right, the discharge curve looks beautiful on the bench — and then the design collapses the moment it meets a production line, a customs inspector, or a technician with a screwdriver at a transmission tower.

This article covers the part of drone battery design that rarely appears in a datasheet: designing an inspection UAV pack so it can be built repeatably at volume, traced back to a specific cell lot years later, and serviced without scrapping the whole assembly. In my experience this is where cost of ownership is actually decided, and it separates a prototype that flies from a product an inspection operator can standardize a fleet on.

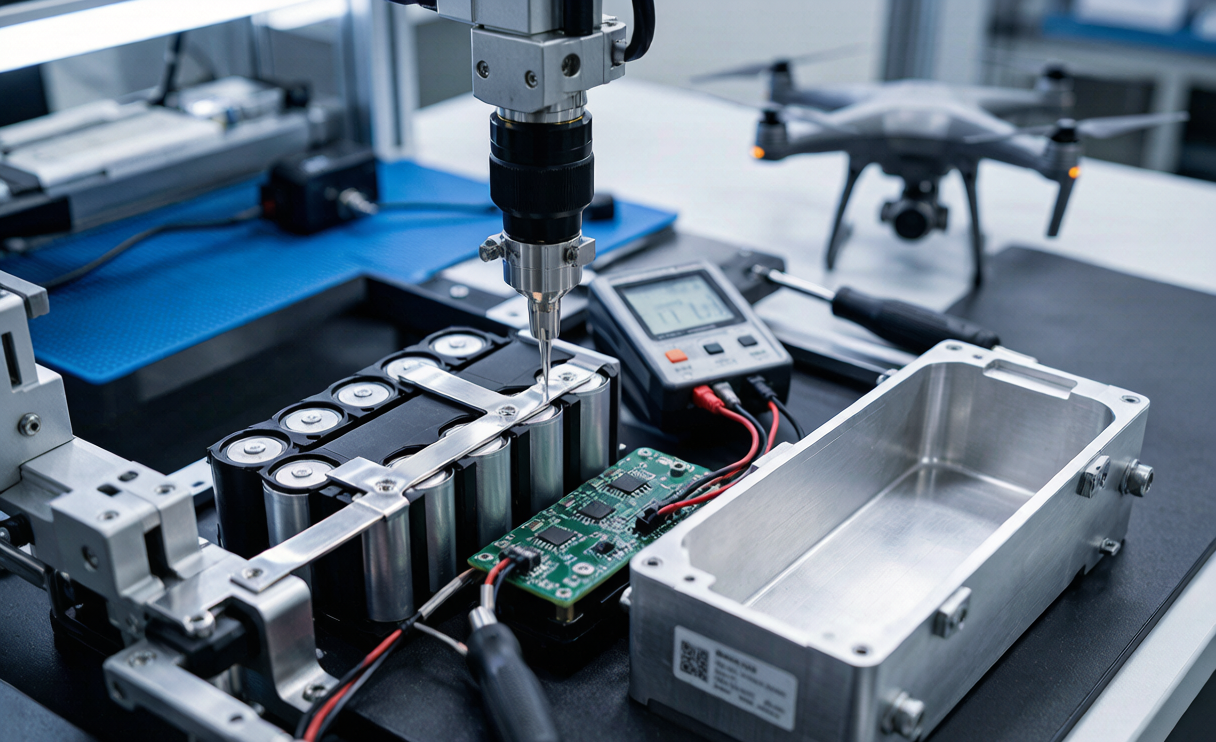

Drone battery design for inspection UAVs: laser-welded 21700 lithium battery module, BMS test pads and serialized modular housing on a production bench

What Inspection UAV Drone Battery Design Means After the Design Review

Inspection work has a distinctive duty cycle. A utility crew flying transmission corridors, a refinery team surveying flare stacks, or a bridge deck contractor will typically log 200 to 600 flights per airframe per year. The airframe is expected to serve five to eight years. The pack is not. A well-built 6S lithium battery for this class of aircraft delivers 300 to 500 useful cycles before dropping below the 80 percent capacity threshold where mission planning stops being predictable.

Do that arithmetic and the design problem becomes clear: over the life of one airframe, the operator buys the pack three to five times over. A typical unit we build for this segment is a 6S2P 21700 architecture, 22.2 V nominal, 10 Ah, around 222 Wh, feeding a 35 to 45 A continuous load with short 70 A gust-correction peaks. The electrical design of that pack is not difficult. The hard part is that the same drawing has to survive hundreds of build cycles across multiple cell lots and dozens of field service events.

Three failure classes account for nearly everything I have seen go wrong after a design was approved. First, interconnect variability: welds that pass a visual check but scatter widely in resistance, producing packs whose internal resistance differs by 15 percent unit to unit. Second, non-serviceable construction, where one weak cell condemns a complete assembly. Third, missing genealogy: a field event occurs, nobody can identify the implicated cell lot, and an entire fleet is grounded instead of a handful of units. All three are design decisions, not manufacturing accidents.

Cell Interconnect Design Decides Yield and Resistance Spread

The interconnect is where drone lithium battery design quietly becomes a process engineering problem. For cylindrical cells you are choosing among resistance spot welding to nickel strip, laser welding, and ultrasonic bonding, and that choice propagates into yield, resistance consistency, and heat.

Our targets are concrete. For 0.15 mm pure nickel strip on a 21700 can I specify joint resistance below 0.15 mOhm per weld pair and pull strength of at least 25 N per tab, verified destructively on samples from every shift. Pure nickel is the right call at this current density; nickel-plated steel welds more forgivingly and costs less, but its resistivity is roughly four times higher and reappears later as pack heating you cannot design away.

The numbers matter more than they first appear. In a 6S2P pack the series current path crosses about seven interconnect segments. At 0.15 mOhm per joint plus busbar contribution, that is 2 to 3 mOhm of interconnect resistance against a cell contribution near 66 mOhm for the whole pack. So interconnects are only around four percent of pack resistance, but at 40 A continuous they dissipate close to 5 W concentrated in small metal joints sitting directly on the cell terminals. That is the worst possible place to put heat in a lithium battery, which is why a marginal weld shows up first as abnormal terminal temperature rather than a capacity complaint.

When we moved one inspection UAV program from resistance spot welding to fiber laser welding, the coefficient of variation on measured joint resistance fell from roughly 18 percent to about 6 percent, and interconnect-related scrap dropped from 3.2 percent to under 1 percent. Laser welding is not automatically the answer, though: it demands tighter fixture repeatability and clean can surfaces, and at low volume the capital cost is hard to justify. Below a few thousand packs per year, a well-characterized spot welding process with per-shift destructive sampling produces entirely sound packs.

One further detail belongs in every drone battery drawing: fusible geometry. On parallel groups I design a necked tab section sized to open at roughly three to four times continuous current, so an internal cell short cannot be fed by its neighbour. It costs nothing on the drawing and changes the severity of the worst-case fault.

Designing for Field Service: Modules Instead of Monoliths

The most expensive shortcut in this industry is full epoxy potting. It looks robust, passes vibration testing easily, and turns every pack into a disposable item. For an operator running 40 or 80 packs across regional crews, that is a serious hidden cost.

Here is the repair economics from a recent program. Bill of materials sat near 190 USD: about 95 USD in the cell block, 48 USD in the BMS and harness, the balance in housing, hardware and labour. After 250 cycles the most common failure was a single cell drifting low within one group, not pack-wide degradation. If the design allows that block to be replaced as a module, the operator restores full capability for roughly half the price of a new pack. If it is potted, they buy the pack again.

So my serviceability rules are straightforward. Replace potting with mechanical cell holders plus thermally conductive foam or gap pads, which gives shock isolation and thermal coupling without permanence. Mount the BMS on standoffs with screws, never adhesive. Bring the discharge lead out on a flying cable with strain relief so a damaged connector is a ten minute repair. And engrave torque values on the housing, because a service manual left in an office is a manual nobody reads.

Serviceable does not mean user-serviceable, and the hardware should enforce that. I define three levels and design so each is physically bounded: level one is the operator (external inspection, connector cleaning, log download, firmware update, no enclosure opening), level two is the depot (module and BMS replacement under ESD control), level three is the factory (cell-level rebuild and re-verification). Captive fasteners, tamper-evident seals and connector selection make that boundary real rather than aspirational.

A hard caveat on cell replacement: dropping a new cell into an aged group creates a mismatch. If you permit it at all, the replacement must match within roughly three percent capacity and ten percent DC internal resistance. My recommendation for most operators is to replace at module level and leave cell-level work to a facility with the measurement capability to do it properly.

Traceability by Design: Serialization and Batch Genealogy

Traceability is treated as paperwork until the first field incident, and then it becomes the most valuable feature in the design. It has to be designed in, because its physical carrier lives on the pack. Every unit we build carries a laser-marked DataMatrix code on the housing, resolving to a record with the cell supplier and lot number, incoming OCV, capacity and DCIR values for those cells, the weld station and its parameter set for that build, the BMS firmware hash, the full end-of-line test record, and the revision of the UN 38.3 test report covering the configuration.

Why that matters concretely: on one fleet of 180 packs we had a single swollen cell reported after about 190 cycles. Because the genealogy existed, we bounded exposure to one incoming cell lot and quarantined 22 packs. Without it, the defensible decision would have been to ground all 180. That is the difference between a two day disruption and a multi-week fleet outage, and it was determined by a drone battery design decision made months earlier.

The implications are physical. Allocate housing area for the marking: a DataMatrix at 0.3 mm module size needs roughly 12 by 12 mm of clean flat surface, and it must not sit where a battery bay rail will abrade it. Use laser marking on anodized aluminium rather than adhesive labels, which peel or fade within a season under temperature cycling, UV and hydrocarbon exposure. Reserve non-volatile memory in the BMS for serial number, cumulative cycle count and lifetime temperature and current extremes, so identity and history survive even when exterior marking is destroyed. Keep the digital record at least ten years; documentation obligations outlive the product.

Design for Test: Verification Built Into the Pack

If a pack cannot be tested quickly, it will not be tested thoroughly. That is production reality, and it makes test access a design requirement rather than a manufacturing convenience. I specify a dedicated service connector tapping every series group plus the thermistor network, so end-of-line verification and depot diagnostics never require probing cell terminals. I also add a four-wire Kelvin terminal pair so DC internal resistance can be measured without contact resistance corrupting the reading. On one program, adding that connector cut end-of-line test time from about 14 minutes to 5 minutes per pack; at a few thousand units a year the change paid for its tooling in a single quarter.

The sequence those features enable: insulation resistance at 500 V DC with a 10 MOhm minimum; open-circuit voltage spread across groups at or below 10 mV; a capacity check on a representative mission profile within three percent of rated; a 10 second 1C pulse for DCIR against baseline; functional verification of overvoltage, undervoltage, overcurrent and thermal cutoff thresholds; a 14 day self-discharge K-value screen on samples at 1.0 mV per day maximum; and per-lot vibration and drop sampling.

Compliance Designed In, Not Bolted On

Certification is where design freedom is quietly consumed. UN 38.3 testing, covering T.1 through T.8 — altitude simulation, thermal cycling, vibration, shock, external short circuit, impact or crush, overcharge and forced discharge — applies to the configuration as tested. Change the cell, change the watt-hour rating materially, or change mass and construction, and you are looking at retesting. My approach is to freeze the mechanical and energy envelope first, then qualify a second cell source inside that same footprint before volume production, so a supply disruption does not become a recertification project.

The rest of the stack follows the same logic. IEC 62133-2 covers cell and pack safety for portable sealed lithium systems and drives clearances, protection and abuse response. IEC 62619 applies where utility and infrastructure inspection work is treated as an industrial application. Ingress protection is declared per IEC 60529; I design to IP54 as a baseline with IP67 for coastal and offshore work, which changes vent, gasket and connector selection.

Transport constraints shape the design too. A 222 Wh pack is well over the 100 Wh threshold, so it ships as Class 9 dangerous goods under UN 3480 or UN 3481 depending on whether it travels standalone or with equipment, with state of charge held at or below 30 percent for applicable air cargo consignments. Under FAA and EASA rules, passenger-carried spares above 100 Wh require operator approval and are capped at 160 Wh, above which cargo is the only option. If crews depend on carrying spares on commercial flights, that constraint has to drive the capacity decision at concept stage, not surface after tooling.

Finally, the deliverables list is part of the design: DFMEA, weld process specification with acceptance criteria, end-of-line test specification, service manual with torque values and ESD requirements, safety data sheet, UN 38.3 report, applicable IEC test reports, and packaging validation. When we scope a custom battery solution for an inspection operator, we agree that document set up front, because a pack without documentation cannot be shipped, insured, or standardized on, no matter how well it performs.

Frequently Asked Questions

How long should an inspection UAV drone battery last before replacement?

Plan on 300 to 500 cycles to the 80 percent capacity point for a quality 6S lithium battery in this duty cycle, which for most inspection fleets means 12 to 24 months of service. Retire on measured data rather than calendar age: I use an 80 percent capacity floor combined with a DCIR growth limit of about 40 percent over the as-new baseline, because resistance growth usually flags a pack becoming unpredictable before capacity fade does.

Is laser welding always better than resistance spot welding for a drone lithium battery?

Not always. Laser welding delivers noticeably tighter joint resistance distribution and less scrap, but it requires better fixturing, clean cell surfaces and meaningful capital investment. Below roughly a few thousand packs per year, a properly characterized spot welding process with per-shift destructive pull testing and joint resistance sampling produces entirely reliable packs. Above that volume, the consistency advantage generally justifies the cost.

Can operators replace individual cells in the field?

I advise against it. Introducing a new cell into an aged parallel group creates a mismatch that accelerates degradation and makes state-of-health estimation unreliable. Module-level replacement at a depot is safer and usually cheaper.

What traceability data should a manufacturer be able to provide?

Ask for the cell supplier and lot number, incoming inspection values for those cells, the weld process record for the build, the BMS firmware version, complete end-of-line test data for your specific serial numbers, and the UN 38.3 report revision covering your configuration. If a supplier cannot map a serial number to a cell lot, you have no way to contain a field issue to anything smaller than your entire fleet.

Does changing the cell brand require repeating UN 38.3 testing?

In practice, yes. UN 38.3 qualifies a specific configuration, and a different cell means different electrochemistry, abuse response and often different mass, so retesting is the defensible position.

Does designing for manufacturability make a custom battery solution more expensive?

Up front, modestly: test connectors, modular construction, laser marking and a proper document set add a few percent to unit cost plus some engineering time. Over the life of a fleet it goes the other way. Serviceable construction converts many pack replacements into module replacements at roughly half the cost, traceability contains field issues to a handful of units instead of a fleet, and a frozen envelope with a qualified second cell source avoids the recertification bills that quietly dominate the budget of a poorly planned custom battery solution.

Good drone battery design for inspection UAVs is not primarily an electrical exercise; the electrical requirements are the easy half. What decides whether an operator ends up with a dependable fleet are the decisions about how the pack is joined, marked, tested and taken apart. Get those right and the pack becomes standardizable infrastructure; get them wrong and you have a well-specified assembly nobody can build consistently, trace confidently, or repair economically.
