Semi-Solid State Battery Vent and CID Design
Most semi-solid state battery programs I review treat the vent as an afterthought, a hole the mechanical team adds after the chemistry is locked. That order is backwards. The electrolyte in these cells is a gel carrying roughly 10 to 20 percent liquid phase by weight, and that gel changes where gas forms, how long it stays trapped near the electrodes, and how fast pressure builds at the cell top. I am Karl Huang, a senior lithium battery engineer, and this guide covers how I set the semi-solid state battery vent design and the current interrupt device in front of it: the pressure window, the area budget, the trip sequence, and the tests that prove all three at 200 degrees Celsius.
Why Venting Behavior Differs in a Semi-Solid Cell
In a flooded lithium battery cell, gas bubbles nucleate at the electrode surface and rise out of the liquid stack within seconds. In a semi-solid cell the electrolyte behaves like a soft solid, so the same volume of gas relaxes much more slowly. I have measured formation gas in 18650 format cells at 1 to 3 milliliters for a flooded design and 2 to 5 milliliters for a gel design, because the gel holds bubbles against the separator instead of letting them clear.
Where the gas actually comes from
Four sources dominate. Formation releases carbon dioxide, carbon monoxide, ethylene, and hydrogen as the solvent reduces on the anode. Residual water reacts with the lithium salt to produce hydrofluoric acid and more carbon dioxide; a 40 gram cathode at 300 parts per million water contributes about 12 milligrams, enough to consume roughly 100 milligrams of salt. Overcharge makes a nickel-rich cathode release oxygen above about 4.3 volts, which oxidizes the electrolyte. Elevated temperature storage decomposes fluorinated additives and regenerates gas weeks after the release test.
That last source catches teams out: a vent that holds pressure at 25 degrees Celsius can still creep open after four weeks at 60 degrees, because the disc material loses yield strength while the internal pressure never drops.
Setting the Burst Pressure Window

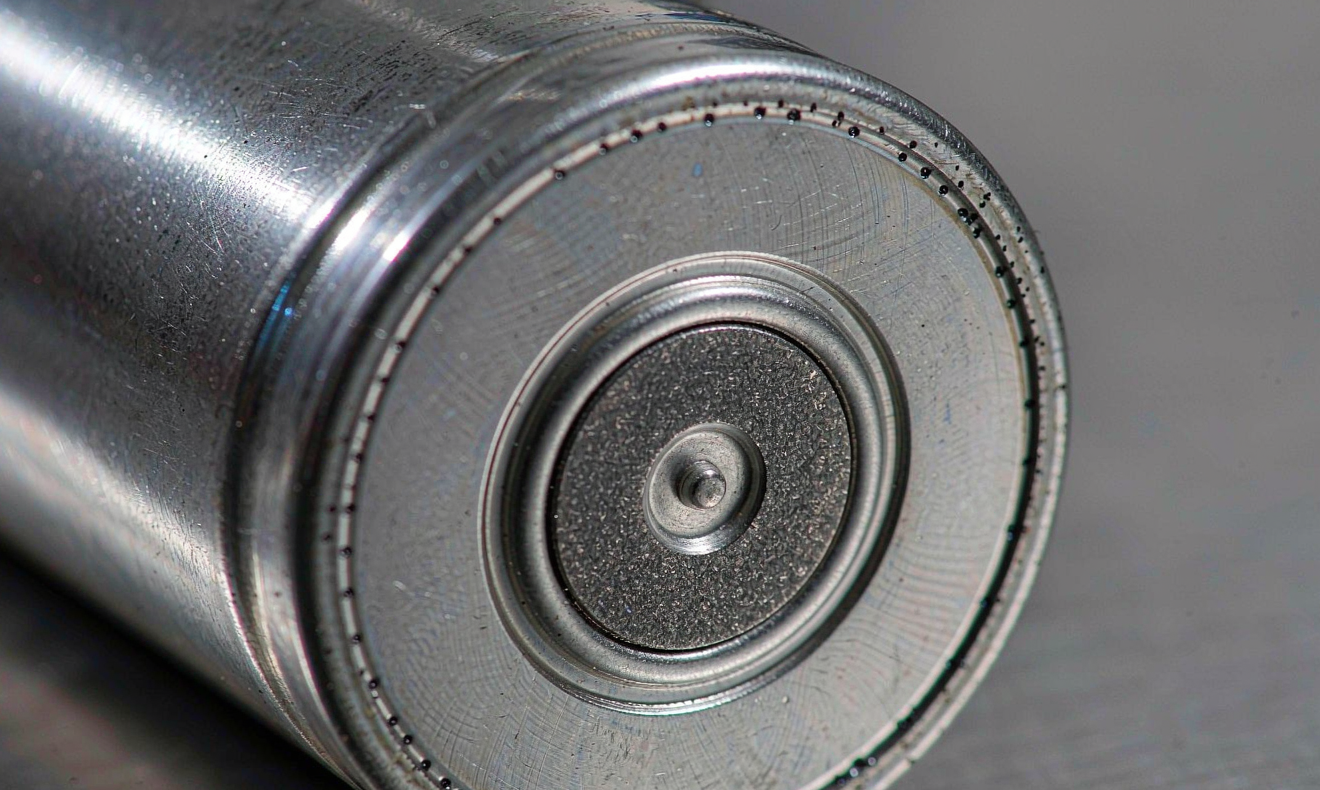

Every vent is a compromise between two failure modes: opening when it should not, and failing to open when it must. I set the upper bound from the weakest structural element in the closure, not the disc itself. On a laser-welded cylindrical cap the weld survives 2.5 to 4 megapascals but the polymer gasket starts extruding near 1.5 megapascals, so the ceiling becomes 60 to 70 percent of the gasket limit. On a prismatic case the welded lid seam usually limits, and a pouch cell has no vent, so the laminate seal at 0.3 to 1.0 megapascals becomes the release path.
The lower bound comes from normal operation. Heating a sealed cell from 25 to 60 degrees Celsius raises internal pressure about 12 percent through gas expansion, and formation plus cycle gas adds more. I want at least three times that excursion as margin before the disc moves, which in practice puts cylindrical caps at 1.2 to 2.2 megapascals and prismatic burst discs at 0.7 to 1.2 megapascals.
Temperature derating and altitude
Aluminum 3003 in the H14 temper yields near 145 megapascals at room temperature but only around 60 megapascals at 200 degrees Celsius, and a scored disc behaves the same way: its effective opening pressure can fall by 20 to 40 percent across that range. The design rule is that the disc must still open reliably in a hot cell, so the cold-state opening pressure has to be set high enough that hot-state opening does not fall below the normal pressure band. Altitude shifts the other way and matters only for cells already near their floor.
Treat the opening pressure as a distribution, not a number. If the specification is 1.0 to 1.8 megapascals, the process standard deviation has to stay at or below about 0.13 megapascals so the minus three sigma value stays under the ceiling and the plus three sigma value above the floor. A supplier who quotes a single burst pressure without a distribution has not measured the process.
Sizing the Vent Area
Engineers usually oversize vent area by a factor of three to five, and the reason is not the flow calculation but the opening travel. A scored disc that cracks but lifts a fraction of a millimeter behaves like a small orifice, and once the gel phase and separator fragments reach that gap the effective area collapses. I design for a controlled tear along a score groove rather than a drilled hole, because a groove gives a reproducible crack path and a large final aperture.
Getting the flow estimate right
For the theoretical check I use a choked flow approximation with k near 1.3 for a carbon dioxide and hydrocarbon mixture, targeting a pressure rise rate below 50 kilopascals per second so the case stress stays far below yield. Take a cell with 12 milliliters of free volume at 350 kelvin targeting 40 kilopascals per second: the allowable generation rate works out near 5 milliliters per second of gas at standard conditions, while a one square millimeter aperture discharging at 1.5 megapascals passes several tens of milliliters per second. The flow calculation almost never sets the vent size. The opening mechanism does.
Direct the discharge deliberately. Vent gas leaves between 400 and 900 degrees Celsius and carries electrolyte vapor, so the outlet must not face a neighboring cell, a busbar, or a walkway. Orientation is a design input, not a packaging detail, and it belongs on the cell drawing so the module team cannot rotate the cell later.
CID Design: Tripping Before the Vent Opens
The current interrupt device is the first stage of the sequence, and its purpose is to disconnect the cell before the vent releases gas. In a cylindrical cell it is an inverted metal disc welded at a few points around its rim; pressure pushes the disc through its snap point, the weld tears, and the circuit opens permanently. Because the CID is the last electrical safeguard inside the can, its trip pressure sits below the vent opening pressure by design, typically at 55 to 75 percent of it, which puts a typical CID at 0.8 to 1.4 megapascals against a vent at 1.5 to 2.2 megapascals.
Failure modes I screen for
Four matter. Late trip means the CID never opens and the cell keeps charging until the vent ruptures, which is a double failure. Early trip opens the circuit during normal operation and is the most common field complaint I see; it usually traces to weld energy drift or residual stress from the disc forming die. Micro-welding after inversion leaves the disc touching intermittently, producing arcing and local hot spots. Weld splash bridging creates a permanent short across the break and defeats the device entirely.
Semi-solid chemistry adds a fifth problem: under sustained pressure the gel phase can creep into the CID cavity and shift the force balance on the disc. I therefore qualify CID trip pressure on filled production cells, never on empty shells, and verify the device stays closed through a four week storage test at 60 degrees Celsius, where weld strength starts to fall.
The CID is mechanical and the battery management system is electronic, and they are not substitutes. Overcharge protection in the BMS should cut charging well before 4.25 volts per cell, so the CID only acts if the electronics have already failed.
Pack Integration: Direction, Spacing, and Barriers
A vent design only works if the module lets the gas out. I size the exhaust path at three to five times the peak cell generation rate, because the first seconds push the highest flow and the path must tolerate two adjacent cells venting together. Channel material follows the gas temperature: stainless or ceramic coated steel is the default, aluminum is marginal at a 660 degrees Celsius melting point, and polymers are not an option.
Spacing and barriers come next. Cell to cell gaps start at two to three millimeters, and propagation resistance is judged by test rather than by drawing, using the no-propagation criteria UL applies at module level and the NFPA 855 separation baseline. Barrier materials are aerogel blankets, ceramic fiber, and vermiculite board, selected against heat fluxes of ten to twelve kilowatts per square meter during a single cell event. A combined hydrogen, carbon monoxide, and volatile organic compound sensor responds earlier than a smoke detector, and vent release switches can share the same fault matrix.
The design is three layers: cell level vent and CID, module level exhaust path and barriers, and enclosure level pressure relief. A pack that gets any one wrong will fail abuse testing even if the other two are textbook.
Verification: How a Vent Design Earns Release
Qualification starts with a burst pressure distribution on at least thirty cells, ramped slowly with dry nitrogen, so the mean and standard deviation are real numbers. That becomes the baseline for a statistical process control check of five cells per production lot, and a helium leak test at one times ten to the minus six pascal cubic centimeters per second confirms each closure is sealed before the burst test.
Temperature and abuse matrix
I then run opening pressure against temperature at 25, 60, 100, 150, and 200 degrees Celsius with five samples each, producing the derating curve the pack thermal model needs. Overcharge testing follows, at one C rate to twice rated capacity, with cell voltage and internal pressure logged on one time base: the CID must open at least thirty seconds before the vent releases, and if the two events fall within a few seconds of each other the design is not providing a real safety stage. Thermal box exposure and external short circuit complete the matrix.
Know which standards actually cover this. UN 38.3 governs transport and contains no vent design requirement. IEC 62619 covers industrial cells with design and overcharge clauses, and UL 1973 adds enclosure venting. IEC 62133-2 applies to portable sealed cells, while propagation behavior belongs to the module level protocol UL 9540A defines. China’s electric vehicle safety standard requires a pressure release device that activates after thermal runaway without exposing occupants to the discharge, and that wording is a useful benchmark for any pack, not only vehicles.
Finally, change control. Score depth, forming die, weld energy, and gasket material are all design inputs, and any one changing means the burst distribution and overcharge sequence must be repeated. I ask suppliers for the distribution report with sigma, the temperature curve, the CID and vent timing from overcharge, six months of SPC records, and a written change notification agreement. Cells for a drone battery pack or a stationary cabinet both deserve the same paperwork.
Frequently Asked Questions
Can a semi-solid state cell be shipped without a vent?
Yes, and pouch cells do exactly that, relying on the laminate seal as the release path. UN 38.3 does not require a vent, but shipping state of charge still has to be controlled, and a defined release route beats an uncontrolled rupture.
What burst pressure should I specify for a semi-solid cell?
For cylindrical caps I work in a 1.2 to 2.2 megapascal band, for prismatic cases 0.7 to 1.2 megapascals. The ceiling comes from the weakest closure element, usually the gasket or lid seam. The floor comes from normal pressure excursion with margin.
Does a semi-solid electrolyte change CID trip pressure?
It can. The gel phase creeps under sustained pressure and changes the load on the inverted disc, which shifts trip pressure over time. Qualify the device on filled cells and recheck after high temperature storage instead of trusting an empty shell.
How do I prove the CID opens before the vent?
Run an overcharge test with cell voltage and internal pressure on the same time base. I require at least thirty seconds between the current interrupt and the vent release. A shorter gap means the vent is carrying the event and the CID is decorative.
Do I need a pressure sensor inside the pack?
Not by code, but I recommend a vent release switch or a pressure switch wired into the battery management system fault matrix. It gives the controller a clean signal to stop charging and open contactors before temperature sensors react to a slow release.
What should I ask a supplier for before qualification?
Five documents: burst pressure distribution with mean and standard deviation, opening pressure against temperature, CID and vent timing from overcharge, six months of process control records, and a change agreement covering score depth, die, weld energy, and gasket material.
