Battery Solution for Disaster Response Command Units
When a flood, wildfire, or earthquake takes out the grid, the first thing responders lose is rarely the roads or the radios. It is power. I have stood inside more than a dozen mobile command posts over the last fifteen years, and the pattern is always the same: the communications rack stays up for a few hours on the vehicle starter battery, then everything goes dark. A purpose-built battery solution changes that math entirely. At Horizon Power we design field energy storage for exactly this duty – autonomous runtime measured in shifts, not minutes, with the ruggedness to survive being dragged across a disaster zone.
What a Disaster Response Command Unit Actually Draws
A command unit is not a single load. It is a stack of independent systems that all need to stay alive at the same time, and the total adds up faster than most procurement sheets assume. From field deployments I have measured, the critical bus usually breaks down like this:
- Communications rack (LTE, push-to-talk, vehicle tracking): 300 to 800 W
- Scene and perimeter lighting: 150 to 400 W
- Display wall or situation map: 400 to 1200 W
- Shelter HVAC for the operator cabin: 800 to 2000 W
- Drone and radio battery charging: 500 to 1500 W
- Routers, repeaters, and radios: 100 to 300 W
Sustained critical load typically lands between 2 kW and 5 kW, with short peaks near 7 kW when a drone bank and the HVAC compressor start together. The mistake I see most often is sizing only for the average. A custom battery solution has to cover the peak without collapsing the bus voltage, then ride the average for the full shift. That is a pack design problem before it is a chemistry problem.
Sizing the Battery – Capacity and Duty Cycle
The capacity rule we use on every bid is straightforward: nameplate energy equals average load times required autonomy, divided by the product of depth of discharge, round-trip efficiency, and an end-of-life margin. In formula form, nameplate kWh = (average load x autonomy hours) / (DoD x RTE x EOL margin).
A worked example helps. Take a 3 kW average load and a 12 hour autonomous shift. Usable energy is 36 kWh. Divide by a 0.9 depth of discharge, a 0.92 round-trip efficiency, and an 0.85 end-of-life margin and you arrive at roughly 51 kWh of nameplate. A 0.2C charger for that pack needs about 10 kW, which a small towed generator or a vehicle alternator bus can supply without starving its own loads.
I always add a second check on peak power. If the pack cannot deliver 7 kW for two minutes without the voltage sagging below the inverter cutoff, the math above is worthless. Good battery pack design separates the energy cells from the pulse capability by selecting a cell with a continuous C-rate of at least 1C and a pulse rating near 3C, then confirming the busbar and contactor path will not heat past 15 K under that pulse.
Why LFP Is the Right Chemistry for Field Command Posts
For this duty the chemistry choice is not close. Lithium iron phosphate gives 150 to 180 Wh/kg, 4000 to 6000 cycles, and a thermal runaway onset near 250 degrees C. That last number matters more than any spec sheet when the enclosure is sitting next to a running generator in a fire camp.
Nickel chemistries push energy density higher but their self-heating onset drops to 110 to 140 degrees C, which is the wrong direction for an unattended field cabinet. Sodium-ion is interesting for cold climates because it holds 85 to 92 percent capacity at minus 20 degrees C and can trickle-charge in the cold, but its energy density of 100 to 160 Wh/kg means a larger, heavier enclosure for the same runtime – a real penalty when every kilogram has to be manhandled off a truck.
So for a command unit that must simply work, LFP is the default. We reserve sodium-ion for northern deployments where the cold-charge benefit outweighs the weight, and we keep nickel chemistries out of field enclosures entirely.

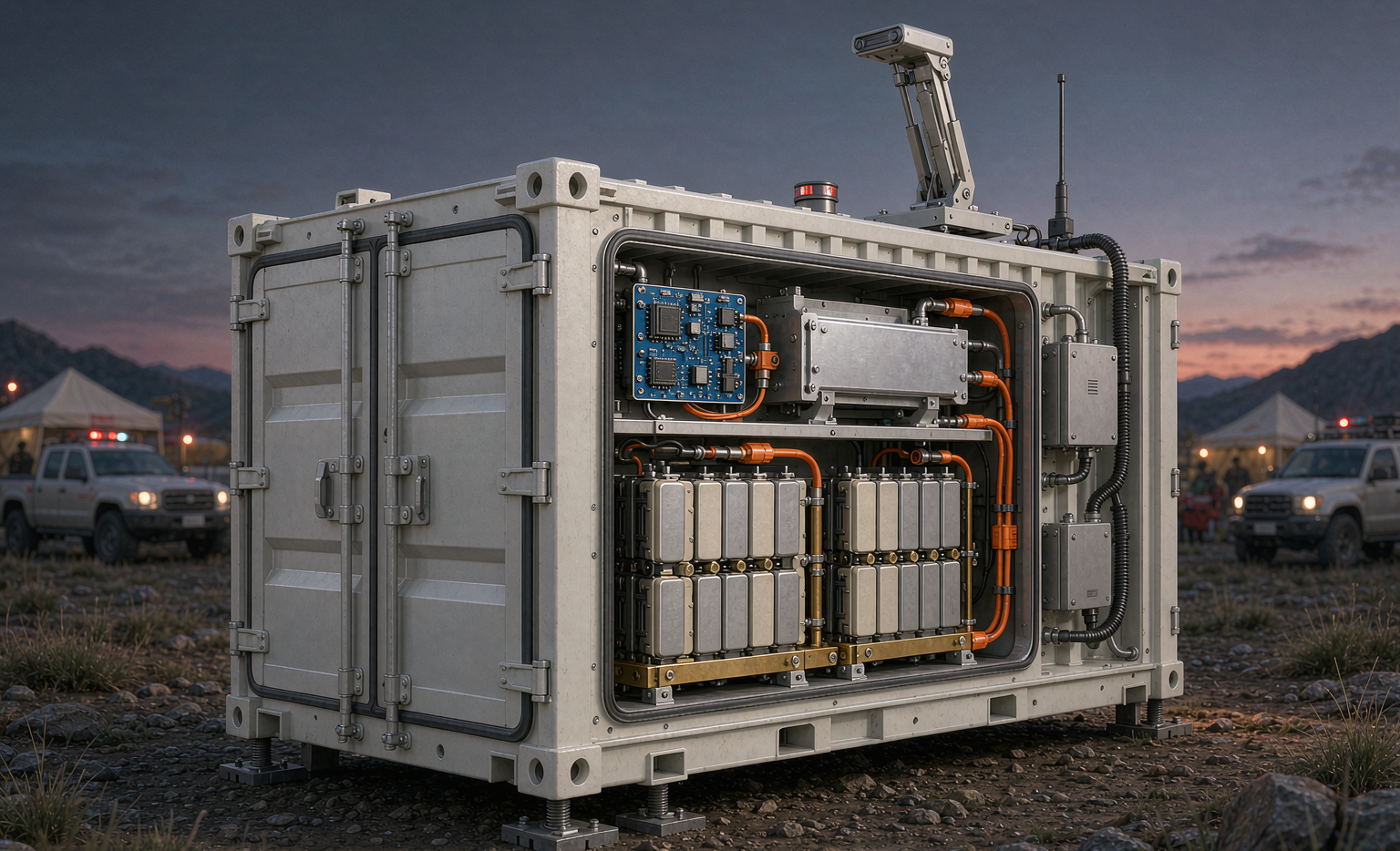

Ruggedization – Ingress, Shock, and Thermal Envelope
A disaster zone is a vibration and dust test that never ends. We treat IP66 as the floor, not the target: a gasketed enclosure with ePTFE pressure-equalization vents so the cabinet breathes without pulling in dust or driving rain. For shock and vibration we qualify to MIL-STD-810H random vibration and a 30 g shock profile, because the unit will be strapped to a pickup bed on washboard roads, not palletized in a climate-controlled warehouse.
The thermal envelope is the part most vendors under-spec. Field command posts see minus 20 to 55 degrees C ambient, and the enclosure interior can climb another 15 degrees C under sun load. We design the battery compartment for a minus 20 to 55 degrees C operating band using a mix of passive conduction to an aluminum cold plate and a small compressor loop for the top of the range. We explicitly avoid Peltier coolers here: their coefficient of performance of 0.5 to 0.7 means they burn pack energy to move heat, which defeats the runtime.
Below 5 degrees C we disable charging to prevent lithium plating, and we add a low-watt heating pad that draws 5 to 8 percent of daily energy to keep cells in their safe window. That trade is cheaper than a plated, swollen, and scrapped pack after one cold deployment.
BMS and Fleet Telemetry for Reliability
In the field you do not get a second chance at a dead pack, so the BMS solution has to be redundant, not just present. We run a dual-redundant analog front end with cell voltage sampled at 200 Hz, pack current at 1 kHz, and temperature at 10 Hz, and we trip the contactor in under 5 ms on any fault. A single AFE failure must not take the unit down, and a single sensor dropout must not false-trip it.
State of health is where most field fleets actually die. We compute SoH by combining coulomb counting with a 1 kHz impedance track, because impedance rising 30 percent warns of a failing cell 300 to 500 cycles before the capacity knee shows up in a simple count. The unit reports this over the same radio link the command post already uses, so a remote supervisor sees pack health without walking to the cabinet.
For fleet operators we log every cycle to a cloud dashboard keyed by serial number. After three seasons of wildland support I can tell you the single biggest reliability gain was not a better cell – it was knowing which packs were quietly aging and rotating them before they failed on a real call.
Deployment, Transport, and Compliance
A battery that cannot legally move is not a field asset. We ship and transport every command-unit pack at 30 percent state of charge or below to satisfy UN38.3, and we keep the documentation in the lid so it survives the inspection. For stationary shelter use the pack carries IEC 62619 and IEC 62133 cell-level compliance, UL 1973 for the module, and UL 9540A with NFPA 855 spacing for the installation.
Mechanically we mount to a standard vehicle rack with M8 studs, serrated flange nuts, and torque-marked joints so a field tech can confirm tension by eye. The DC bus uses tinned or nickel-plated copper busbars, and every external connector is keyed so a tired operator at 2 a.m. cannot reverse it. Quick-disconnect means the pack swaps in under ten minutes, which is the difference between a rotated spare and a stranded post.
The goal of the whole exercise is boring reliability: a command unit that lights up the moment the grid goes down, runs the full shift, and recharges from whatever generator or vehicle shows up. That is what a field battery solution is supposed to do, and with the right sizing, chemistry, and BMS it does it every time.
Frequently Asked Questions
How long can a battery solution power a disaster response command unit?
For a typical 2 to 5 kW load, a 50 kWh pack delivers 10 to 12 hours of autonomous runtime at 0.9 depth of discharge. Extend that by adding a second parallel module or by recharging from a generator during the shift, which is why we size nameplate to roughly 1.4 times the usable shift energy.
Which battery chemistry is safest for field command posts?
Lithium iron phosphate is the safe default, with a thermal runaway onset near 250 degrees C and 4000 to 6000 cycles. Sodium-ion wins only in sustained sub-zero deployments where its cold-charge ability offsets its lower energy density, and nickel chemistries are excluded from unattended field enclosures.
What ingress and shock ratings should a field battery cabinet meet?
Spec IP66 as a minimum with pressure-equalizing vents, and qualify the mount to MIL-STD-810H random vibration with a 30 g shock profile. The operating band should cover minus 20 to 55 degrees C ambient, plus sun-load margin inside the enclosure.
How do you size a custom battery solution for a mobile command center?
Multiply the average load by the required autonomy, then divide by depth of discharge, round-trip efficiency, and an end-of-life margin – roughly (load x hours) / (0.9 x 0.92 x 0.85). Always confirm the pack also delivers the peak pulse, usually near 7 kW, without sagging below the inverter cutoff.
Can the battery be recharged from a generator or vehicle?
Yes. A 0.2C charge rate for a 50 kWh pack is about 10 kW, which a small towed generator or a vehicle alternator bus can supply. Below 5 degrees C we disable charging and use a low-watt heating pad to hold cells in their safe window first.
What certifications apply to transportable energy storage for emergency use?
Transport at 30 percent state of charge under UN38.3, with IEC 62619 and IEC 62133 at cell level, UL 1973 at module level, and UL 9540A plus NFPA 855 for the installed system. Keep the compliance sheet in the enclosure lid so it survives field inspection.
