N/P Ratio Design in Semi-Solid State Battery Cells

As a battery engineer at Horizon Power, I get asked why two cells with the same chemistry and the same rated capacity can show very different cycle life in the field. The answer is usually a number that never appears on a datasheet: the N/P ratio. This ratio compares anode reversible capacity to cathode reversible capacity inside a finished cell. Get it wrong and you either waste energy density or you invite lithium plating and thermal risk. In a semi-solid state battery, where we pair a composite electrolyte with silicon-rich anodes, the acceptable N/P window is tighter and the penalty for missing it is higher. This article explains how we define, set, and verify the N/P ratio for production semi-solid cells, using the real numbers we hold on our own line.

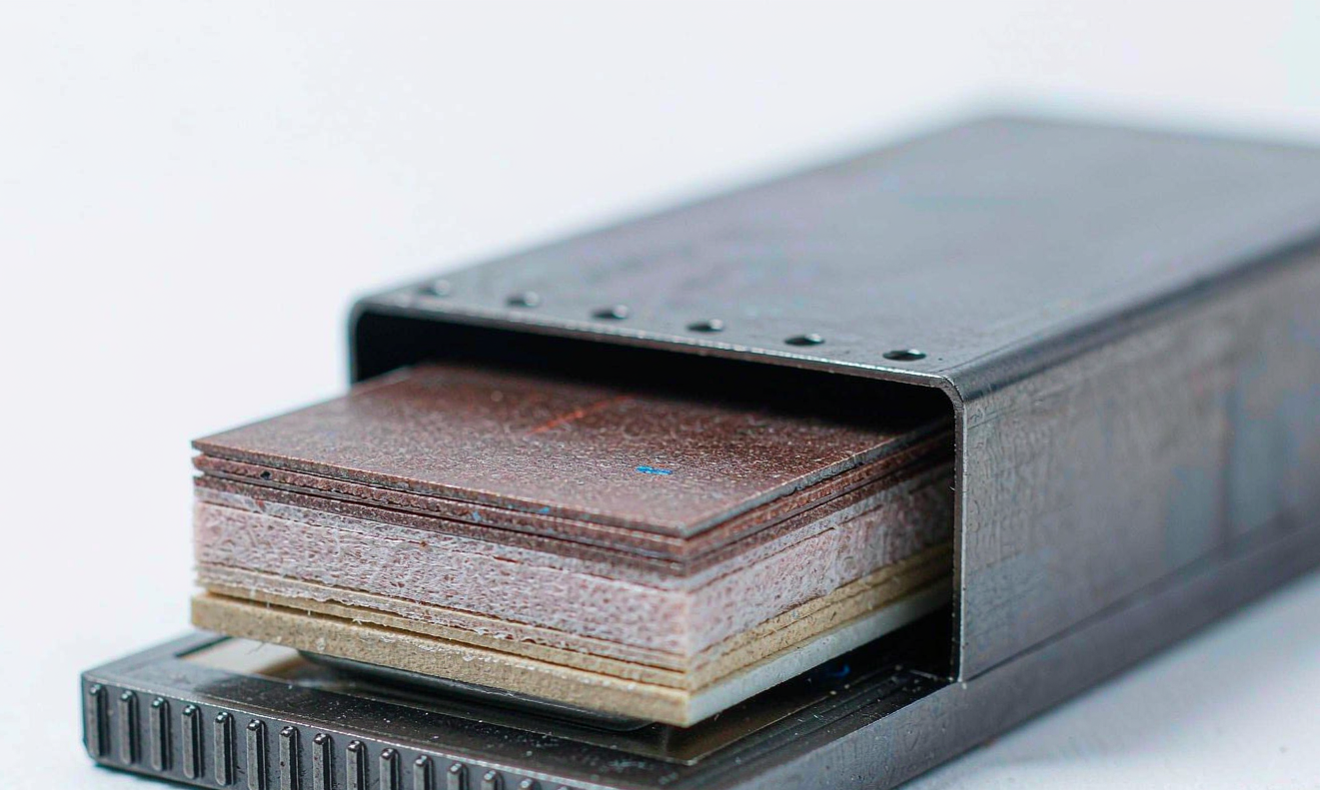

What the N/P Ratio Actually Measures

The N/P ratio compares two capacities measured at the same C-rate over the same voltage window. The numerator is the reversible lithiation capacity of the negative electrode, in other words the capacity the anode can accept when the cell is discharged to its lower cutoff. The denominator is the reversible delithiation capacity of the positive electrode, the capacity the cathode can release before reaching its upper cutoff. In plain terms, N/P tells you how much spare anode capacity exists relative to the cathode. A ratio of 1.10 means the anode can hold 10 percent more lithium than the cathode can ever push into it. We always normalize both electrodes to the same state-of-charge window and the same formation history, because the first cycle moves the numbers. A freshly coated electrode that has not been formed reads a very different capacity than the same electrode after SEI buildup, and the N/P we design to is the post-formation value, not the raw coated value.

Why Semi-Solid Cells Are More Sensitive to N/P

A conventional liquid electrolyte cell tolerates a moderate N/P miss because the free electrolyte buffers local lithium concentration gradients. A semi-solid state battery conducts ions through a constrained composite network, so lithium transport near the anode surface is less forgiving. When the anode runs out of host sites at high state of charge, excess lithium deposits as metallic plating rather than intercalating, and a composite electrolyte cannot dissolve and redistribute that plating the way a flooded liquid cell can. On top of that, most semi-solid anodes use silicon or silicon-graphite blends to lift energy density, and silicon consumes far more irreversible capacity during formation than graphite alone. That extra loss has to be covered by a higher N/P or by pre-lithiation, and if both are set too low the cell plates on its very first full charge. We therefore treat the N/P window as a hard safety limit on the line, not a soft optimization target.

Setting the Design Window: 1.05 to 1.20

For graphite-based semi-solid cells we target an N/P of 1.08 to 1.12. For silicon-containing anodes the window shifts up to 1.12 to 1.20, because the first-cycle irreversible loss of silicon is larger and its breathing changes the contact pressure over life. The lower bound exists for a clear reason: at beginning of life, any ratio below 1.00 guarantees lithium plating under real charging profiles. The upper bound is an energy-density tax. Every increment of N/P above the minimum adds inactive anode mass that carries no releasable energy, and we have measured on our stacking model that moving N/P from 1.10 to 1.30 can cut cell-level energy density by 3 to 6 percent. The margin capacity, defined as N/P minus 1 multiplied by cathode capacity, must exceed the worst-case lithium loss we expect across the warranty window, including SEI growth, micro-shorts, and cathode fade. We set that margin from teardown data, never from a textbook default.

How N/P Ratio Affects Energy Density

Energy density and N/P pull in opposite directions. The cathode is the lithium source and the energy-limiting electrode in nearly every semi-solid design, so any anode capacity beyond what the cathode can fill is dead weight. A higher N/P means a thicker or denser anode, more current collector foil, and more composite electrolyte to span, all of which lower the gravimetric and volumetric energy of the finished cell. We quantify this with a simple stacking model: for a fixed cathode loading, raising N/P from 1.10 to 1.25 typically adds 8 to 15 percent anode mass while contributing zero additional releasable energy. The trade is worth it for safety margin in stationary storage, but for weight-sensitive drone battery packs and portable lithium battery products the margin is squeezed to the minimum the reliability data supports. The right answer is application specific, and we tune N/P per product family rather than locking one number for the whole semi-solid portfolio.

How N/P Ratio Affects Cycle Life and Safety

Cycle life is where a wrong N/P shows up first. If the anode is starved, lithium plates during fast charge or cold charge, grows into dendrites, and eventually bridges the thin composite electrolyte to the cathode. In a semi-solid cell that internal short can propagate quickly because the electrolyte layer is thin and the plates sit close together. We see the early warning as a sudden rise in self-discharge after a few hundred cycles, and by the time it appears the cell is already unsafe. A generous N/P delays plating, but only up to a point: an excessively high N/P leaves so much loose lithium inventory on the anode that local plating can still occur at the electrode edges where current density peaks. The sweet spot keeps the anode just full enough at top of charge to absorb all cathode lithium behind a thin safety buffer. On our line we correlate the designed N/P with first-cycle coulombic efficiency, because a cell that loses more lithium during formation needs a proportionally higher N/P to stay safe.

Measuring and Verifying N/P in Production

A designed N/P is worthless if production cannot hold it. We verify the ratio two ways. First, at formation we measure the actual first-cycle coulombic efficiency and the post-formation reversible capacity of sampled cells; if the realized N/P drifts outside the window we trace it back to electrode coating grammage. Our coating tolerance is plus or minus 1.5 percent, and we run in-line X-ray and beta-backscatter gauges to catch a drift before a full lot is built. Second, we qualify each electrode pair with dQ/dV analysis and electrochemical impedance spectroscopy to confirm the anode still has headroom at the upper cutoff. Statistical process control on both electrode loadings keeps the realized N/P tight lot after lot. Every customer design ships as a custom battery solution validated against IEC 62619 for industrial applications and UN38.3 for transport, and we keep the formation yield record as the audit trail showing that the designed N/P was actually achieved.

Frequently Asked Questions

What does N/P ratio mean in a battery?

The N/P ratio is the reversible capacity of the negative electrode divided by that of the positive electrode, measured at the same rate and voltage window. A value of 1.10 means the anode can hold 10 percent more lithium than the cathode can supply. It is a design margin that prevents lithium plating during charge and sets how much inactive anode mass the cell must carry.

Why is a low N/P ratio dangerous?

When the N/P ratio drops near 1.00 the anode cannot host all the lithium the cathode releases at full charge. The excess deposits as metallic lithium on the anode surface. In a semi-solid state battery this plating can grow into dendrites that bridge the thin composite electrolyte and cause an internal short. The risk rises sharply during fast charge or cold charge, which is exactly when users push cells hardest.

What is a good N/P ratio for semi-solid state batteries?

We target 1.08 to 1.12 for graphite anodes and 1.12 to 1.20 for silicon-containing anodes. Silicon needs the higher window because it loses more capacity on the first cycle. The lower bound avoids plating while the upper bound limits the energy-density penalty from extra inactive anode mass. The exact number is set from teardown and cycle data per product, not copied from a generic specification.

How does N/P ratio affect energy density?

The cathode is the energy-limiting electrode, so anode capacity beyond what the cathode can fill adds mass without adding energy. Raising N/P from 1.10 to 1.25 can add 8 to 15 percent anode mass for zero extra releasable energy, cutting cell energy density by a few percent. Weight-sensitive drone battery and portable packs use the minimum margin the reliability data allows, while stationary systems accept more for safety.

Does pre-lithiation replace a higher N/P ratio?

No. Pre-lithiation reduces the anode first-cycle irreversible loss, which lets you reach a given safe N/P with less added anode mass, but it does not remove the need for margin. We use the two together: pre-lithiation recovers lost capacity while N/P sets the safety buffer against plating. Treating one as a substitute for the other is a common cause of early cell failure we see in returned packs.

How is N/P ratio measured in production?

We measure first-cycle coulombic efficiency and post-formation reversible capacity on sampled cells at formation, then trace any drift to electrode coating grammage held within plus or minus 1.5 percent. In-line gauges catch coating drift early, and dQ/dV plus impedance spectroscopy confirm the anode keeps headroom at top of charge. Statistical control on both electrode loadings keeps the realized N/P inside the designed window.
