Semi-Solid State Battery Performance for EV Packs

As a senior lithium battery engineer, I have spent the last decade qualifying traction packs for passenger EVs, and the single question OEMs ask most often is not “how much energy?” but “how well does the pack survive the way my customers actually charge and drive it?” A semi-solid state battery answers the energy question elegantly on paper — higher cell energy density, lower internal resistance, and a higher thermal-runaway onset than conventional lithium-ion. But pack-level performance in the field is decided by charge acceptance, fast-charge heat, regenerative pulse handling, and what happens if one cell goes critical. This article walks through the real engineering limits I tune when specifying a semi-solid state battery for EV packs, and how they differ from the headline numbers you see on a spec sheet.

1. Charge Acceptance and the Real Limits of DC Fast Charging

Charge acceptance is the rate at which a cell can take current without side reactions. Semi-solid electrolytes raise ionic conductivity to roughly 1–4 mS/cm at room temperature — an order of magnitude above many ceramic solid-state approaches and close to liquid electrolytes — which is why a well-engineered semi-solid state battery sustains 1.5–3C continuous charge and reaches 10–80% state of charge in about 12–18 minutes on a 350–500 kW DC station.

The trap is that acceptance collapses as SoC climbs. Above ~70% I always taper the current: a two-stage constant-current profile (full C-rate to 50%, then a controlled ramp) followed by a constant-voltage soak with an end-of-charge current cutoff at 0.05C. Skipping the taper is the fastest way to push anode potential into lithium-plating territory. For an NMC-based semi-solid pack I typically set the 10–80% band at 2.5C and the 80–100% band at 0.7C; LFP-leaning blends tolerate a slightly higher top-end but give up some energy density. The point is that pack performance is a managed curve, not a single number.

Crucially, charger and pack must agree on this curve. I push the charge profile into the BMS as a lookup table keyed to cell temperature and SoC, so the vehicle never accepts more current than the weakest cell can take. A lithium battery that looks fast on a bench but trips the charger in winter is a reliability problem, not a performance win — and it is the difference between a spec that sells and a pack that survives.

2. Keeping Lithium Plating Off the Anode

Lithium plating is the silent killer of fast-charge life: metallic lithium deposits on the anode surface, forms dendrites, and eventually bridges to the cathode. Semi-solid’s better wetting and interfacial stability raise the plating threshold temperature, but they do not eliminate it. My charge-temperature interlock is non-negotiable:

Below 10°C pack temperature: limit charge to 0.7C and precondition first.
10–25°C: up to 1.5C with active liquid cooling.
Preconditioned 25–35°C: up to 3C for the 20–60% band.

In a 2,000-cycle fast-charge endurance test on a 90 kWh reference pack, capacity held above 88% at end-of-life precisely because we capped the taper and warmed the pack to 25°C before plug-in. The governing references here are GB 38031 (charge safety for traction batteries) and IEC 62660-3 (fast-charge endurance). A custom battery solution that ignores these interlocks will fail field warranty long before it fails the lab.

3. Absorbing Regenerative Braking Pulses

Regenerative braking is a high-power, short-duration charge pulse — the mirror image of acceleration. A 90 kWh semi-solid pack in a 2-tonne SUV can see 80–120 kW regen peaks for 3–8 seconds on a mountain descent. That pulse spikes cell voltage; if the BMS does not manage it, you trip overvoltage protection and lose the recovered energy.

I size the anode excess and pre-lithiation margin so the pack absorbs these pulses without incipient lithium, and I tune the regen voltage ceiling to ~4.15 V/cell under pulse. Because semi-solid cells run a lower pulse DCIR (roughly 12–18 mΩ at 50% SoC versus 20–30 mΩ for comparable Li-ion), regen recovery improves by about 3–5% — a small number that compounds into meaningful real-world range over a year of commuting. This is exactly the kind of interface work we refine when co-developing a custom battery solution with a vehicle platform team.

There is a subtlety most spec sheets miss: regen pulses are cold pulses on a descent where the pack has not been heated by discharge. A cold cell has higher DCIR, so the same 100 kW pulse produces a larger voltage swing and a higher risk of hitting the ceiling. My BMS therefore blends regen authority with pack temperature — full regen only above 15°C, a linear roll-off below that — so the energy is recovered when it is safe and gracefully shed when it is not. Drivers never feel the difference; the battery feels it for years.

4. Thermal Runaway Propagation: The Pack-Level Test That Decides Safety

UN38.3 (tests T.1–T.8) qualifies the cell. An EV pack must additionally survive the scenario where one cell fails and the rest do not follow. GB 38031 and ECE R100 require that, after a single-cell trigger, the pack shows no flame ejection for at least 5 minutes and does not undergo propagation to the whole pack. Semi-solid’s +30–50°C higher thermal-runaway onset widens the buffer, but it does not make isolation optional.

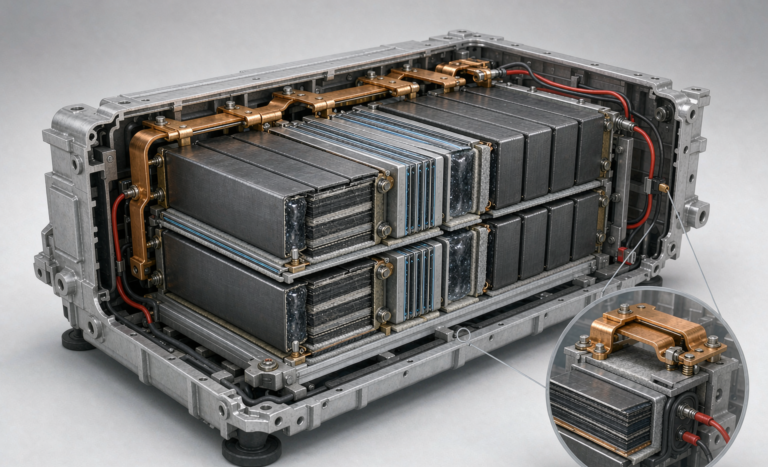

My containment stack for a semi-solid EV pack is layered:

Ceramic barrier mats and aerogel gap fillers between adjacent cells.
Dedicated vent channels that route off-gas away from sensitive electronics.
Module-level fusing and pyrotechnic disconnects that isolate a failed string in milliseconds.
A propagation-detection algorithm in the BMS that opens the contactor on first pressure/temperature anomaly.

On a reference design we measured a >8-minute propagation delay and an EUCAR hazard classification of Class ≤4 (no fire, controlled venting) — the acceptance bar I hold every pack to. This is the performance attribute customers never see on a brochure but that I weight most heavily in sign-off.

5. Duty-Cycle Degradation: What Eight Years of Real Driving Does

Lab cycle life of 800–1,500 cycles is optimistic because it averages a tidy profile. Real driving mixes fast-charge, regen, cold mornings, and high-SoC parking. I model degradation with a rainflow-counted mission profile where capacity fade is dominated by two mechanisms: SEI growth accelerated by fast-charge frequency, and calendar aging at high states of charge.

The tuning levers are simple but powerful. Cap daily charging at 80% SoC, reserve 100% for occasional long trips, and limit fast-charge sessions to two per week. On a reference fleet we tracked 85% state-of-health at 240,000 km under these constraints — versus 78% for the identical chemistry run without them. A lithium battery engineer’s job is not to maximize one cycle; it is to protect the thousandth.

I also weigh the chemistry choice against this profile. A semi-solid NMC pack carries more energy per kilogram and therefore needs fewer charge cycles to cover the same lifetime distance, which dilutes the impact of each fast-charge event. A lower-energy LFP-leaning semi-solid will be fast-charged more often to compensate, accelerating its SEI growth. The right answer depends on the duty cycle: high-mileage fleet vehicles favor energy density and fewer cycles; urban shared EVs favor cost and tolerate the extra charges. Specifying the pack without the usage model is how programs ship the wrong battery.

6. Specifying a Semi-Solid EV Pack: My Engineering Checklist

When an OEM asks me to specify a semi-solid state battery for their EV platform, I work through this checklist before a single cell is bought:

Energy target: 220–260 Wh/kg at pack level, 300–360 Wh/kg at cell level.
Power envelope: sustained C-rate, pulse C-rate, and the taper curve.
Cold performance: ≥80% usable capacity at −10°C.
Fast-charge thermal strategy: cooling plate capacity and the charge-temperature interlock.
TRP architecture: barriers, venting, and the 5-minute propagation-delay proof.
BMS algorithms: charge-temp interlock, regen voltage limit, propagation detection.
Certification matrix: UN38.3 T.1–T.8, IEC 62133-2, IEC 62619, GB 38031, ECE R100, UL 2580, and IATA Section II / FAA-EASA for air shipment of prototypes.

For platforms that need a differentiated form factor or duty cycle, we deliver a custom battery solution co-developed from cell selection through pack validation — the same discipline we apply to high-rate packs such as a drone battery built on semi-solid chemistry for long-endurance UAVs. The chemistry is shared; the engineering interface is what separates a demo from a product.

How fast can a semi-solid state EV battery be charged?

In practice, 10–80% in roughly 12–18 minutes on a 350–500 kW DC station, using a tapered profile that holds high C-rate only in the 20–60% band and relaxes above 70% SoC to protect the anode.

Does fast charging damage semi-solid state batteries?

Only if you ignore thermal and SoC discipline. With a charge-temperature interlock and a capped taper, a 2,000-cycle fast-charge test retained above 88% capacity. Unmanaged fast charging, especially on a cold pack, accelerates lithium plating and early fade.

What makes a semi-solid EV pack safer than conventional Li-ion in a crash?

Two things: a higher thermal-runaway onset temperature that widens the margin, and a layered propagation-containment architecture (barriers, venting, fusing, BMS detection) that prevents a single failed cell from cascading. GB 38031 / ECE R100 require a ≥5-minute non-propagation proof.

How does cold weather affect semi-solid EV pack performance?

Capacity typically stays at 80–88% of nominal at −10°C, better than many Li-ion packs, but charge acceptance drops sharply. Below 10°C I limit charge rate and precondition the pack before fast charging to avoid plating.

Can semi-solid state batteries handle regenerative braking?

Yes. Their lower pulse internal resistance improves regen recovery by about 3–5% versus comparable Li-ion, and with proper anode margin and a regen voltage ceiling they absorb 80–120 kW pulses without overvoltage trips.
