Sodium-Ion Battery Second Life and Repurposing
I have spent fifteen years testing lithium packs, and most of what I believed about retired batteries had to be rewritten the first time I graded a batch of spent sodium-ion cells. A sodium-ion battery second life program is not a copy of the lithium playbook with different labels. The chemistry fails in different places, the transport rules are genuinely friendlier, and the economics are narrower than most pitch decks admit. In this article I will walk through how retired sodium-ion cells actually behave, the grading protocol my team runs before any pack is re-deployed, and where a repurposed battery pack earns its keep and where it quietly loses money.
Why Second Life Works Differently for Sodium-Ion Chemistry
Most second-life battery programs in the market today are built on retired lithium iron phosphate and NMC packs, and the whole qualification methodology was written around their failure modes. Sodium-ion breaks two of the core assumptions. The first assumption is that a retired pack is inherently hazardous because of its state of charge. In a lithium-ion cell, overdischarge below roughly 2 V dissolves the copper current collector into the electrolyte, and that dissolved copper can redeposit as metal during the next charge, seeding internal shorts. A lithium pack pulled from service in an unknown state of charge is treated as a fire risk until proven otherwise. Sodium-ion has no copper on the anode side. Both electrodes collect current on aluminum, so deep discharge does not create that dissolution and dendrite mechanism, and a fully discharged sodium cell is genuinely stable freight rather than a conditional hazard.
The second assumption is about energy density. A lithium pack retired from a vehicle carries 140 to 180 Wh/kg at pack level, which keeps a repurposed stationary system reasonably compact. Sodium-ion cells typically deliver 100 to 160 Wh/kg at cell level, so a repurposed pack is 30 to 40 percent heavier for the same stored energy. That effectively rules out mobile second-life applications and pushes reuse toward stationary duty where weight is irrelevant. I also want to be honest about timing: sodium-ion shipments are still small, and the first meaningful volumes of retired cells will arrive from two-wheeler fleets and starter vehicles somewhere between 2029 and 2031. Anyone selling second-life sodium volume today is mostly grading prototype and pilot-line rejects, not true field-retired packs.
The 0 Volt Advantage in Reverse Logistics
This is the part of sodium-ion battery second life economics that almost nobody prices correctly. Lithium cells shipped under UN 38.3, IEC 62281, and the corresponding air rules must be consigned at a low state of charge, conventionally not exceeding 30 percent, which forces the reverse logistics chain to maintain charged-cell storage, SOC verification steps, and fire-rated segregation. With sodium-ion, the cell tolerates full discharge to 0 V. Because there is no lithiated graphite or copper collector waiting to react, a discharged sodium cell has minimal stored electrical energy and minimal chemical drive. Since the 2025 revision of the UN Model Regulations, sodium-ion batteries also carry their own classification entries, UN 3551 and UN 3552, instead of hiding inside the lithium entries.
What 0 V transport changes in practice
- A collection point can hold returned packs on ordinary shelving instead of SOC-managed fire cabinets.
- Inbound freight does not need charge-state verification records before booking.
- Disassembly carries far less arc-flash risk, because the busbars are dead before a wrench touches them.
- Cell-level sorting can happen in a standard workshop rather than a hazmat cell.
The caveat I give every client is that 0 V storage is a transport and handling benefit, not a discharge instruction for service. The electrolyte is still present and the cells are still dangerous goods. What changes is the margin of error when a pallet sits in a warehouse for six weeks, which is exactly the situation that makes lithium reverse logistics expensive.

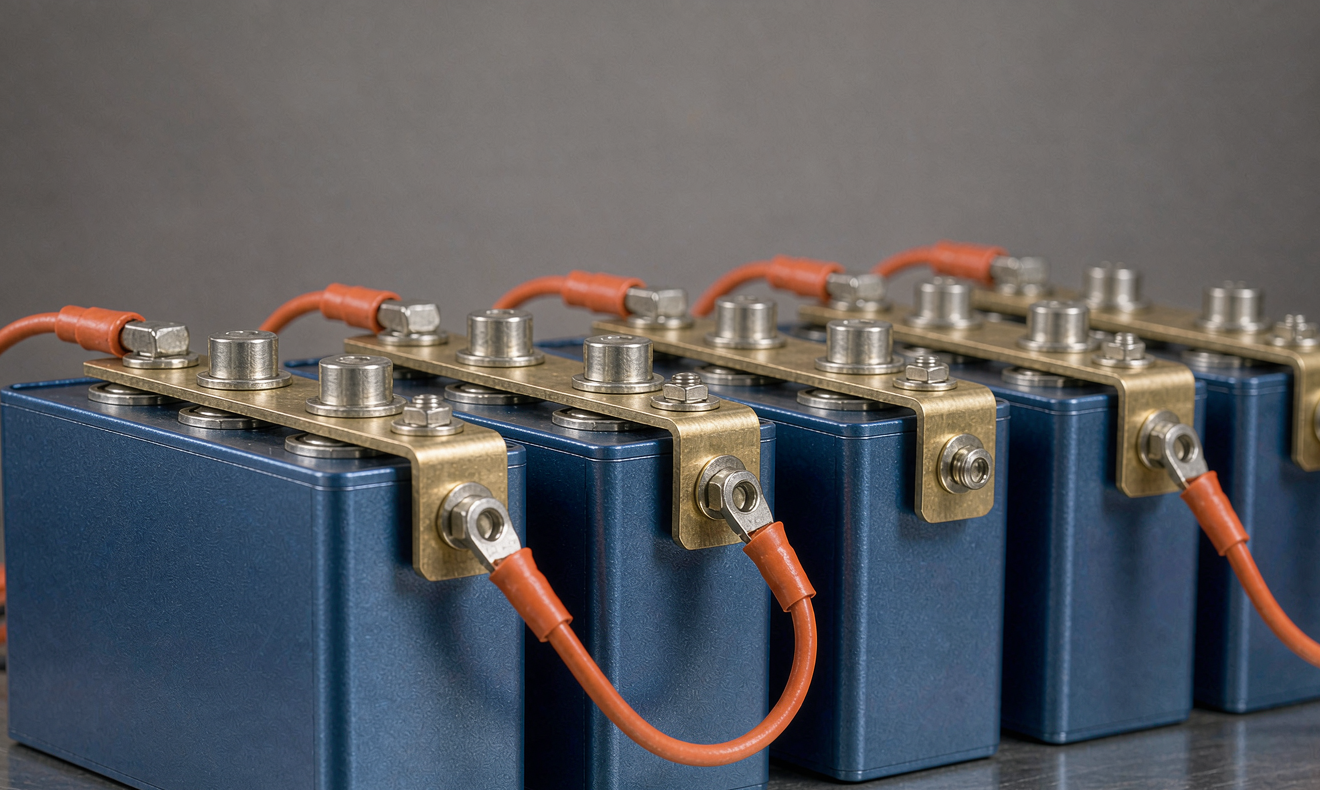

The Grading Protocol I Run Before Any Re-Deployment
Grading is where second-life programs succeed or fail, and the sodium version needs its own sequence rather than a translated lithium checklist. My team runs every incoming module through the same bench flow, and we reject at the cell level rather than the pack level, because one weak cell drags a series string down within weeks.
Our seven-step intake sequence
- Visual and mechanical inspection: swelling, electrolyte odor, terminal damage, and torque check on every fastener.
- Insulation resistance at 500 V DC, pack level, with a pass floor of 100 megohm before any pack is energized.
- Controlled recharge to the manufacturer’s recommended float window, watching dV/dt for abnormal heating.
- Two full capacity cycles at 0.5C and 25 degrees Celsius, recording deliverable ampere-hours on the second cycle only.
- A 10-second DC resistance pulse at 50 percent state of charge, repeated three times with a two-minute rest.
- Fourteen-day open-circuit drift to catch soft shorts; anything dropping more than 3 percent is scrapped, not regraded.
- String matching: cells below 90 percent of the batch median capacity are pulled, because spread matters more than average.
The two measurements people skip are the one that cost me money early on. Open-circuit drift over two weeks is the only cheap test that reliably exposes internal micro-shorts, and string matching by capacity spread is what determines whether the repurposed pack reaches year three. A rebuilt pack built from cells with 6 percent capacity spread will develop a weak-cell fault long before its aggregate capacity fades out.
Why State of Health Is Harder to Pin Down on a Sodium Curve
Estimating state of health is a solved problem for NMC, mostly solved for LFP with effort, and genuinely awkward for sodium-ion. Layered oxide sodium cathodes have a usefully sloping open-circuit voltage curve, which makes voltage-based estimation workable, but polyanionic cathodes such as sodium vanadium phosphate sit on a nearly flat plateau around 3.4 V, where a 15 percent change in state of charge moves the terminal voltage by millivolts. Prussian blue analogue cells slope but shift their entire curve as they age, so a lookup table calibrated on fresh cells misreads aged ones. Since sodium-ion spans at least three distinct cathode families with different curves, no single estimation model transfers across a mixed second-life inventory.
How I compensate
I anchor state of health on coulomb counting with periodic full-discharge recalibration rather than voltage inference. This is where sodium hands you a gift: the chemistry tolerates deep cycling far better than lithium, so scheduling a full recalibration discharge every 60 to 90 days costs far less lifetime than it would in an NMC pack. For inventory grading I add electrochemical impedance spectroscopy on a sample basis, because impedance growth is the earliest signal of electrolyte decomposition at the hard carbon interface, and it correlates with the capacity fade slope better than any single-voltage feature.
Where Repurposed Sodium-Ion Packs Actually Make Money
I want to push back on the default assumption that second life is automatically cheaper. New sodium-ion cells are inexpensive by design, with cell-level pricing trending toward 60 to 80 dollars per kWh at scale. When the new baseline is that low, the classic 30 to 50 percent second-life discount that justified lithium reuse mostly evaporates once you add testing labor, reassembly, and warranty reserve. Second life for sodium makes sense in three specific situations.
- Fleet cascading, where an operator already owns the packs and the test data, so the only incremental cost is regrading and reintegration. A two-wheeler swap network moving retired packs into street-light or backup cabinets is the cleanest example.
- Low-rate, long-duration stationary duty such as telecom backup, solar street lighting, and cold-chain monitoring, where packs cycle weekly rather than daily and a 70 percent state of health floor is perfectly acceptable.
- Cold-climate sites, where sodium’s low-temperature advantage means a second-life pack still delivers usable winter capacity that a comparable aged LFP pack would not.
Merchant trading of second-life sodium packs, the model where a broker buys retired volume cheap and resells it, rarely clears the numbers today. If a client asks me whether to build a sodium second-life line, I ask whether they already own the retirement stream. If they do not, the answer is usually no.
Re-Certification, Standards, and Who Carries the Liability
The regulatory frame for repurposed battery packs is maturing faster than most operators realize. UL 1974, the Standard for Evaluation for Repurposing Batteries, is the reference document my team certifies against: it defines the process for assessing a used pack, requalifying it for a new application, and documenting what was done. On the transport side, any repurposed pack that crosses a border needs valid UN 38.3 test evidence under the sodium entries, UN 3551 or UN 3552, and reuse does not inherit the original test report automatically when the configuration changed. For stationary installation I specify IEC 62619 as the industrial cell baseline and UL 1973 where the destination market expects it. In the European Union, Regulation 2023/1542 adds a further layer: repurposing operators take on defined obligations, including data provisions that feed the battery passport, and the repurposer effectively becomes the responsible party for the pack’s next life.
The liability chain in plain terms
The original cell warranty died the day the pack left its first application. From that point, whoever performed the repurposing is the manufacturer of record, and that means the grading data becomes your legal defense. I insist on keeping per-cell records linking lot number, cycle history, capacity retest value, impedance, and the string position it was assigned. When an incident investigator asks why cell 14 failed two years later, the difference between a documented grading trail and a spreadsheet of averages is the difference between a product liability case you can answer and one you cannot.
Frequently Asked Questions
Can sodium-ion batteries really be stored and shipped at 0 V?
Yes. Because both electrodes collect current on aluminum, there is no copper dissolution mechanism and no lithiated anode holding stored energy, so a fully discharged cell is stable for transport. The cells remain Class 9 dangerous goods under their sodium entries, but the handling margin is far wider than lithium.
How long do second-life sodium-ion battery packs last?
A pack graded at 70 to 80 percent state of health and cycled at low rate in mild conditions typically delivers another 1,500 to 3,000 cycles before it drops below a 60 percent floor. Duty profile matters more than chemistry here; a weekly-cycled backup pack will outlast a daily-cycled buffer pack by years.
Is UL 1974 mandatory for repurposed battery packs?
It is not universally mandatory, but it is the de facto acceptance route in North America and increasingly the document insurers and AHJs ask for. Skipping it does not save cost; it shifts risk onto whoever signed the pack off.
Can I reuse sodium-ion cells from an EV pack in stationary storage?
Physically yes, and it is the most common cascade path. The qualification burden is the issue: every cell needs the full grading sequence, and modules must be rebuilt with a BMS recalibrated for the new duty window rather than carried over from the vehicle.
Why is state of health harder to measure in sodium-ion cells?
Because the chemistry family is split across layered oxide, polyanionic, and Prussian blue cathodes with very different voltage curves, and some of them flatten badly with age. Voltage-based estimation models do not transfer, so coulomb counting with periodic full recalibration is the dependable method.
Does second life make sodium-ion cheaper than lithium-ion overall?
Usually not on price alone. Low new-cell pricing compresses the second-life discount, so sodium reuse wins on logistics simplicity, cold-climate capacity, and safety margin rather than on a headline cost advantage. Treat it as an operational fit decision, not a commodity arbitrage.
